DeFelsko PosiTest DFT

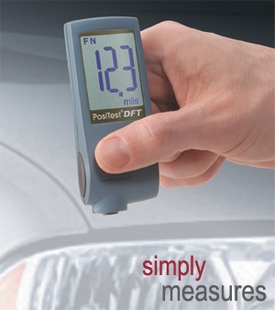

PosiTest DFT

Coating Thickness Gage for ALL Metal Substrates

Measures coatings on metal substrates. It is the economical choice that retains the uncompromising quality of DeFelsko coating thickness and inspection instruments.

  • Available in Two Models - PosiTest DFT Ferrous or PosiTest DFT Combo
  • Fast, repeatable measurements - 60+ readings per minute
  • Ready to measure - No adjustment required for most applications
  • Zero or 1 Point Calibration Adjustment for complex applications
  • Onscreen averaging for up to 99 readings
  • Strong, wear-resistant, ruby-tipped probe
  • Adjustable display brightness for optimal visibility in all environments
  • Auto rotating display with rotation lock
  • Simple icon based menu
  • Certificate of Calibration showing traceability to PTB included (Long Form)
Conforms to ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D7091/E376, BS3900-C5, SSPC-PA2 and others

Simple

  • Fast, repeatable measurements  - 60+ readings per minute
  • Ready to measure - No adjustment required for most applications

Durable

  • Strong, wear-resistant, ruby-tipped probe
  • Two year warranty

Accurate

  • Zero or 1 Point Calibration Adjustment for complex applications
  • Onscreen averaging for up to 99 readings

Versatile

  • V-groove in probe for positioning on curved parts
  • High contrast color display
  • Adjustable display brightness for optimal visibility in all environments

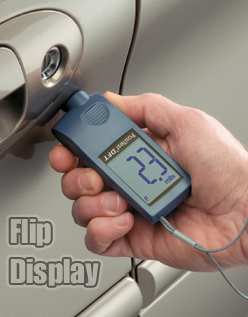

  • Auto rotating display with rotation lock
  • Simple icon based menu
  • Mils/microns switchable
  • Built-in wrist strap for added convenience and safety

Ideal For:

  • Powder Coaters
  • Paint Applicators and Contractors
  • Coating Inspectors
  • Automotive Detailers, Refinishers and Inspectors
Specifications
Measurement Range  0 - 40 mils 0 - 1000 μm
Accuracy + \ - (0.1 mils + 3 percent) + \ - (2 μm + 3 percent)
Size 108 x 43 x 20 mm (4.25  x 1.7 x 0.8 inch)
Weight 54 g (1.9 oz.) without batteries

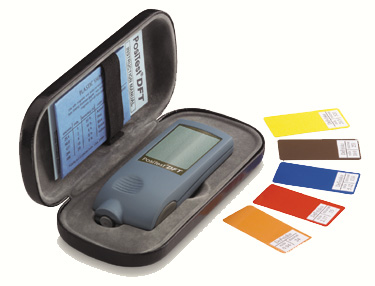

positest dft with case

Gage Comes Complete with:

  • Wrist strap
  • Precision plastic shims
  • Hard shell storage case
  • 2 AAA alkaline batteries
  • Instructions
  • Long Form Certificate of Calibration traceable to PTB
  • Two year warranty

Gauge Conforms to: ISO 2178/2360/2808, prEN ISO 19840, ASTM 244/B499/B659/D1186/ D1400/D7091/ E376/G12, BS3900-C5, SSPC-PA2 and others



When do I buy the PosiTest DFT instead of the PosiTector 6000?

The PosiTest DFT is a simple, economical solution for those who have no need for the innovative features of the PosiTector 6000 Standard or Advanced models including higher resolution and accuracy, internal memory, PosiSoft software compatibility and universal probe interchangeability. The PosiTector 6000 was designed for the harshest of environmental conditions. The impact resistant, high grade industrial strength housing is solvent, acid, oil, water and dust resistant. PosiTector 6000 Advanced models have additional features including increased memory storage, scan mode, SSPC PA2/PSPC-90/10 modes and WiFi wireless technology for connecting to mobile devices.

What does the PosiTest DFT offer that other low-cost gages don’t?

We’ve packaged PosiTector 6000 probe technology in a smaller, simpler, more economical platform. The PosiTest DFT is designed for users who don’t need memory or downloading features- just the quality probe technology that DeFelsko is known for. Our reliable ruby-tipped probes are wear-resistant and measure accurately — both out-of-the-box and after extended use. There is no need for repeated calibration adjustments like with cheaper instruments. The PosiTest DFT is a simple gage that retains proven DeFelsko quality.

How can I make calibration adjustments with the PosiTest DFT?

For most applications, the PosiTest DFT is ready to measure right out of the box. When necessary, a Zero or 1 Point adjustment can be performed via the gage menu.

How is the PosiTest DFT calibrated at DeFelsko?

The PosiTest DFT is calibrated against known standards traceable to a National Metrology Lab. A long form Certificate of Calibration containing actual thickness measurements is included with every gage.

Can the PosiTest DFT store or print data?

No. The PosiTest DFT has a running average mode which provides the average for up to 99 measurements. The readings, however, are not stored in memory. Once the gage is powered off, the readings are erased. The PosiTest DFT cannot print readings.

How does the menu work?

The icon-based menu is easy to use. Simply press both the (-) and (+) buttons simultaneously to enter the menu. Press either button to move the cursor, and press both buttons to select an option.

dft-iconmenu

Do your instruments require any formal training for use? Do you offer ‘demo’ models?

No. Our instruments are designed for simple operation, feature easy-to-use menus, instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.

Is the PosiTest DFT calibrated at the factory?

The PosiTest DFT arrives fully calibrated and ready to measure. A Long-Form Certificate of Calibration traceable to NIST or PTB is included, which documents actual readings taken by your instrument at our calibration laboratory on standards traceable to a national metrology institute. Beware of ‘Certificates’ or ‘Certificates of Conformance’ offered by competitors. These typically do not include actual instrument readings, and are often insufficient to meet common quality requirements.



The PosiTest DFT manual is available in English, Spanish, German, French and Chinese languages.



dft manual

DFT Thickness Gaqe and Accessories
DFTC PosiTest DFT Combo Coating Thickness Gage for METAL Substrates
DFTF PosiTest DFT Ferrous Coating Thickness Gage for METAL Substrates
POUCHFT PosiTest DFT Leather Pouch w/ Belt Clip
Pouch with belt clip

Pouch with belt clip

  • Pouch protects your PosiTest DFT while keeping it within easy reach
  • Belt clip secures pouch on the belt
  • Made of genuine leather
Certified Thickness Standards

Certified Thickness Standards

Used to verify the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO/QS-9000 and in-house quality control requirements.

Contracts often specify that coating thickness measurements be taken by gages whose measurement accuracy is traceable to a National Metrology Institute such as NIST or PTB.

STDS2
Epoxy on Steel
STDA2
Epoxy on Aluminum
Certified Plastic Shims

Certified Plastic Shims

  • Certified shims provide an economical alternative to Coated Metal Plates but have a reduced accuracy
  • Shims are packaged in a protective pouch
  • Certificate of Calibration showing traceability to NIST is included with each shim or set of shims
  • Certified and labeled in both Metric and Imperial units



DFTC
POSITEST DFT - COMBO - COATING THICKNESS GAGE
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM & THIS ITEM QUALIFIES FOR FREE 2ND DAY AIR
Mfg. item #: DFTC
DEFDFTC
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$695.00

21
DFTF
POSITEST DFT - FERROUS - COATING THICKNESS GAGE
CALL 800-458-3687 X1 FOR ANY BROTHER-IN-LAW SPECIALS ON THIS DEFELSKO ITEM
Mfg. item #: DFTF
DEFDFTF
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$495.00

21
POUCHFT
LEATHER POUCH WITH BELT LOOP - FOR POSITEST DFT
Mfg. item #: POUCHFT
DEFPOUCHFT
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$15.00

455
