DeFelsko PosiTector 6000


The Measure of Quality Since 1966

Coating Thickness Gages & Inspection Instruments

PosiTector 6000 Series
Coating Thickness Gages
for ALL metal substrates
new

Easy two steps to select a PosiTector 6000...

s-h alts-h alt

s-h alts-h alt

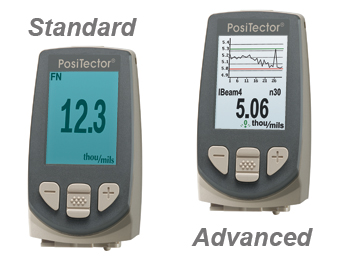

Step 1: Select a Gage body (Standard or Advanced features)

PosiTector 6000 - Feature Comparison Chart Standard (1) Advanced (3)






s-h alt s-h alt
All features shown on Overview page s-h alt s-h alt

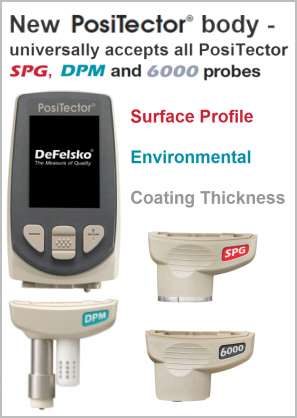

Accepts all PosiTector 6000 (coating thickness), SPG (surface profile) and DPM (environmental) probes.  s-h alt s-h alt
Hi Contrast LCD Display Monochrome Color
Fast Mode - faster measurement speed for quick inspection
Scan Mode - take continuous readings without lifting the probe
Hi-Lo Limits - audibly and visibly alerts when measurements exceed your specified limits
Statistics -  Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
Reading Storage Capacity
250 in one group
100,000 in up to 1000 groups
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer
Onscreen help, real time graphing, picture prompting and batch notes
Multiple stored calibration adjustments for measuring on a variety of substrate conditions

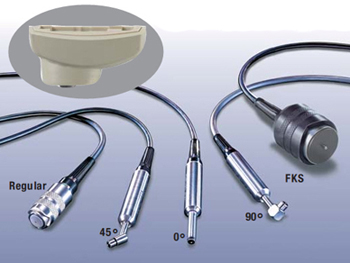

Step 2: Select a Probe

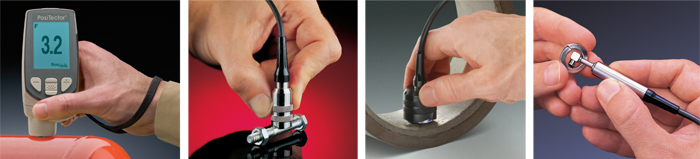

Select from a variety of measurement ranges and probe styles to suit your application. All Gage bodies accept all probes.

s-h alt

ORDERING CHART Our most popular built-in and Regular separate probe models 90° Regular probe for tight spots Ideal for anodized aluminum Microprobes - Our smallest probes for small parts or hard-to-reach areas Built-in and Separate probes for thick protective coatings; epoxy, rubber, intumescent fire proofing and more.
Click Gage Image for Probe Details
Coatings on FERROUS metals (Steel & Cast Iron)  Standard

Memory
F1

F3
FS

FS
FRS

FRS
  F0S

F0S
F45S

F45S
F90S

F90S
FT

FT
FTS

FTS
FKS

FKS
Coatings on NON-FERROOUS metals (Aluminum, Copper, ect.)  Standard

Memory
N1

N3
NS

NS
NRS

NRS
NAS

NAS
N0S

N0S
N45S

N45S
N90S

N90S
  NKS

NKS
Combination ALL METALS  Standard

Memory
FN1

FN3
FNS

FNS
FNRS

FNRS
  FNTS

FNTS

Measureing Range 0-60 mils
0-1500 um
0-25 mils
0-625 um
0-250 mils
0-6mm
0-500 mils
0-13mm
Accuracy** + (0.05 mils + 1%)  0 - 2 mils
   + (0.1 mils  +  1%)  > 2 mils

+ (1 um + 1%)  0 - 50 um
 + (2 um + 1%)  > 50 um
+ (0.02 mils + 1%)  0 - 4 mils
 + (0.1 mils + 3%)  > 4 mils

+(0.5 um + 1%)  0 - 100 um
 + (2 um + 3%)  > 100 um
+( 0.5 mils + 1%)  0 - 100 mils
 +( 0.5 mils + 3%)  > 100 mils

 + (0.01 mm + 1%)  0 - 2.5 mm
 +( 0.01 mm + 3%)  > 2.5 mm
+ (1 mil + 3%)
0 - 500 mils

+ (0.02 mm + 3%)
0 -13 mm
Matching DeFelsko
Calibration Standards
CAL-S1
CAL-A1
CAL-S2
CAL-A2
CAL-P1 CAL-P5

**Accuracies are stated as a fixed value plus a percentage of the gage's actual readings
