DeFelsko Accessories

Desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data from DeFelsko inspection instruments. No internet connection required.

PosiSoft 3.0 offers customizable reporting tools which allows you to add pictures and screen captures, notes and annotations, add or remove sections, change headings, and more. Save your custom layouts as templates for future use.

  • PC and Mac version available
  • Import readings via USB or WiFi (Advanced models only)
  • Print reports - sample report using default template
  • Customize reports by adding pictures, logos, screen captures, notes and more
  • Copies measurement data from the instrument to a user selectable folder - ideal for storing data on a network or cloud drive.
  • Downloaded data is stored in comma-separated text files which can easily be imported into supporting applications such as documents, spreadsheets and databases.
  • View the Help File to see how PosiSoft 3.0 works
  • Multi-language support - English, Spanish, French, German, Chinese and Japanese
  • Compatible with all current PosiTector SPG/DPM/6000/200/UTG, PosiTest AT-M and AT-A instruments



IR Printer receives data from Standard (2) and Memory (3) models via wireless infrared.

  • Wireless, battery-operated.
  • Receives data via an invisible infrared beam.
  • Prints both text and graphics
  • Light weight
  • One year Warranty



Certified Thickness Standards  are used to verify the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO/QS-9000 and in-house quality control requirements.

Contracts often specify that coating thickness measurements be taken by gages whose measurement accuracy is traceable to a National Metrology Institute such as NIST or PTB.




AC Power Cable for continuous operation.

This kit supplies several alternate power solutions for your battery-operated PosiTector (6000, DPM, 200 & UTG). They allow the gage to operate continuously without the need for batteries. Use the cable alone to connect a PosiTector to your PC's built-in USB port that acts as a continuous power source. Or connect the cable to the included power adaptor which plugs into any AC wall electrical outlet, 110 or 220V. A selection of electrical plugs is included which are capable of dealing with most country’s outlets.

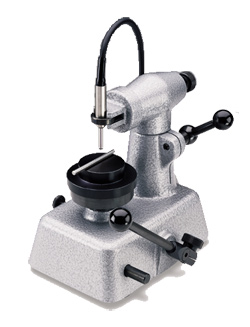

Probe Fixture Stand ensures repeatable positioning.

DeFelsko probes are incredibly accurate, especially the microprobe series. But fine, precise measurements on small parts are often affected by the operator. Our probe fixture removes adverse operator influence by fixturing both the probe and the part. This high quality device is a must in any calibration lab.

Intended primarily for the straight (0 degree) ferrous or non-ferrous microprobes, this stand can also be used with our conventional regular probes. It ensures that the part is brought up to the probe perpendicular to the part’s surface in a controlled, repeatable way.

PosiPen has a very small, unique magnet which can be placed with pin-point accuracy on extremely small parts, and on peaks and valleys. Ideal for measuring non-magnetic coatings such as paint, enamel, plating, hot-dip galvanizing on steel.

Couplant

Every PosiTector UTG ships with (1) bottle of Ultrasonic couplant.  Additional 4oz. bottles are available. (sold in cases of 12)  MSDS

Certified Step Blocks  are ideal for checking calibration and operation of ultrasonic thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.

  • Composition - 1018 steel
    - available in metric and imperial units
    - metric units: (2.5, 5, 7.5, 10 and 12.5 mm steps)
    - imperial units: (100, 200, 300, 400 and 500 mil steps)
    - metric accuracy ±0.02 mm
    - imperial accuracy ±1 mil


  • All Certified Step Blocks are supplied with a certificate of calibration showing traceability to NIST/NPL.
Defelsko Accessories
ATADHESIVEKIT PosiTest® AT Adhesive Kit (additional adhesive, mixing sticks, palettes, cotton swabs)
BATTREAAA4PK Rechargeable Battery Pack 4 AAA eneloop batteries for PosiTector 6000/DPM/SPG only
DOLLY20 PosiTest® AT Additional 20 mm dollies (10)
DOLLY50 PosiTest® AT Additional 50 mm dollies (4)
GEL_P PosiTector® 200 Additional 4 oz. Ultrasonic Gel: Case of 12 Bottles
PRINTERBT Bluetooth Printer for use with PosiTector 6000/DPM/SPG Advanced models only
IR_PRINTER IR Printer for use with PosiTector 200/UTG/PC
IR_PAPER 3 Rolls of IR paper
USBAC AC Power Kit for PosiTector series USBAC $45
STDZALM ALUMINUM Zero Plates
STDCSS Certified Plastic Shim Set
SPGZEROKIT Glass Plate and Shim
STDS1 Ideal For PosiTector 6000 - F, FS, FRS, FN, FNS, FNRS, PosiTest F & FM / S SeriesEpoxy on Steel (4)
STDS2 Ideal For PosiTector 6000 F0S, F45S, F90S, PosiTest DFT Ferrous & Combo  / S SeriesEpoxy on Steel (4)
STDS3 Ideal For PosiTest G & GM, PosiPen A, B & C  / S SeriesEpoxy on Steel (4)
STDA1 Ideal For PosiTector 6000 - N ,NS, NRS, FN, FNS, FNR / A SeriesEpoxy on Aluminum (4)
STDA2 Ideal For PosiTector 6000 - NAS , N0S, N45S, N90S, PosiTest DFT Combo / A SeriesEpoxy on Aluminum (4)
STDA3 Ideal For PosiTector 100B, 200, 200B / A SeriesEpoxy on Aluminum (4)
STDP1 Ideal For PosiTector 6000 - FT, FTS, NTS, FNTS / P Series Polystyrene Blocks (4)
STDP2 Ideal For PosiTector 6000 - FHS, NHS, EOC / P Series Polystyrene Blocks (4)
STDP3 Ideal For PosiTector 100 C / P Series Polystyrene Blocks (4)
STDP4 Ideal For PosiTector 100 D / P Series Polystyrene Blocks (4)
STDP5 Ideal For PosiTector 6000 - FKS, NKS / P Series Polystyrene Blocks (4)
STDP6 Ideal For PosiTector 200 C  / P Series Polystyrene Blocks (4)
STDB1 PosiTector UTG Calibration Test Block (INCH)
STDB1M PosiTector UTG Calibration Test Block (METRIC)
PosiTector DPM PosiSoft Download FREE from Web Site
PRBDPMHSP PosiTector® DPM Hand-Held Surface Probe
PRBDPMS-B PosiTector® DPM Liquid Temperature Probe
PRBDPMAP PosiTector® DPM Self-Adhering Surface Probe
TMPLTAS PosiTest® AT Drilling Template for 50 mm Dollies



ATADHESIVEKIT
ADHESIVE KIT FOR POSITEST ADHESION TESTER
Mfg. item #: ATADHESIVEKIT
DEFATADHESIV{00
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$35.00

121
BATTREAAA4PK
Mfg. item #: BATTREAAA4PK
DEFBATTREAAA4PK
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$20.00

121
DOLLY20
DOLLY 20MM-PKG OF 10 FOR POSITEST ADHESION TESTER
Mfg. item #: DOLLY20
DEFDOLLY20
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$25.00

121
DOLLY50
DOLLY 50MM -PKG OF 4 FOR POSITEST ADHESION TESTER
Mfg. item #: DOLLY50
DEFDOLLY50
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$40.00

121
GEL_P
ULTRASONIC COUPLANT POSITECTOR (CASE OF 12)
Mfg. item #: GEL_P
DEFGEL_P
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$170.00

121
PRINTERBT
Mfg. item #: PRINTERBT
DEFPRINTERBT
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$425.00

121
IR_PRINTER
MARTEL IR PRINTER
Mfg. item #: IR_PRINTER
DEFIR_PRINTER
Ships FREE via UPS to lower 48 states.5
$259.00

622
IR_PAPER
PRINTER PAPER - 3 ROLLS FOR THE IR PRINTER
Mfg. item #: IR_PAPER
DEFIR_PAPER
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$8.00

121
USBAC
Mfg. item #: USBAC
DEFUSBAC
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$45.00

121
STDZALM
Mfg. item #: STDZALM
DEFSTDZALM
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$55.00

121
STDCSS
Mfg. item #: STDCSS
DEFSTDCSS
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$195.00

121
SPGZEROKIT
GLASS PLATE AND SHIM KIT FOR POSITECTOR SPG
Mfg. item #: SPGZEROKIT
DEFSPGZEROKIT
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$15.00

121
STDS1
Mfg. item #: STDS1
DEFSTDS1
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$325.00

121
STDS2
Mfg. item #: STDS2
DEFSTDS2
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$325.00

121
STDS3
Mfg. item #: STDS3
DEFSTDS3
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$325.00

121
STDA1
Mfg. item #: STDA1
DEFSTDA1
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$325.00

121
STDA2
Mfg. item #: STDA2
DEFSTDA2
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$325.00

121
STDA3
Mfg. item #: STDA3
DEFSTDA3
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$325.00

121
STDP1
Mfg. item #: STDP1
DEFSTDP1
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$175.00

121
STDP2
Mfg. item #: STDP2
DEFSTDP2
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$175.00

121
STDP3
Mfg. item #: STDP3
DEFSTDP3
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$175.00

121
STDP4
Mfg. item #: STDP4
DEFSTDP4
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$175.00

121
STDP5
Mfg. item #: STDP5
DEFSTDP5
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$175.00

121
STDP6
Mfg. item #: STDP6
DEFSTDP6
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$175.00

121
STDB1
Mfg. item #: STDB1
DEFSTDB1
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$350.00

121
STDB1M
Mfg. item #: STDB1M
DEFSTDB1M
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$350.00

121
PRBDPMHSP
HANDHELD SURFACE TEMP SENSOR FOR POSITECTOR DPM
Mfg. item #: PRBDPMHSP
DEFPRBDPMHSP
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$150.00

121
PRBDPMS-B
DPM SEPARATE PROBE FOR POSITECTOR
Mfg. item #: PRBDPMS-B
DEFPRBDPMS-B
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$495.00

121
PRBDPMAP
ADHESIVE SURFACE TEMP SENSOR FOR POSITECTOR DPM
Mfg. item #: PRBDPMAP
DEFPRBDPMAP
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$35.00

121
TMPLTAS
DRILLING TEMPLATE KIT FOR POSITEST ADHESION TESTER
Mfg. item #: TMPLTAS
DEFTMPLTAS
Free 2nd Day AIr for DEFELSCO orders over $599!1047
$125.00

121
