ChemGrout CG-555 Grout Pump

CG550 rugged - portable 3 inch piston pump and grout mixer gas hydraulic powered

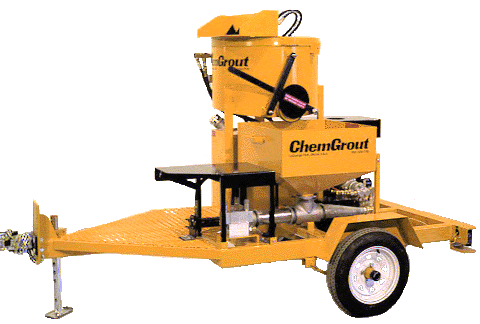

CG-555 Trailer Mounted Gas/Hydraulic Model Shown

The ChemGrout CG-550 Rugged series includes both skid and trailer mounted grout plants.  These units feature a 45-gallon (170 liters) mixing tank, a large 30-gallon (113 liters) holding hopper and the popular single-acting 3" piston grout pump.  Each mixing tank is equipped with baffles, bag breakers and a variable speed high-efficiency paddle mixer that provides rapid grout mixing.  The tank outlet is large slide gate that allows viscous grouting materials to flow quickly into the removable holding hopper.  The large holding hopper is sized to provide continuous pumping, the mixer is charged while the hopper feeds the pump.  The grout pump is a 3" positive displacement, pulsating piston pump that disassembles with only a hammer for fast and thorough cleaning.  The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production.  The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.

 To see a picture of the skid mounted CG-550 Rugged Air Powered grout machine click here:
 To see a picture of the skid mounted CG-550 Rugged Hydraulic Powered grout machine click here:

Power Options = Air, Hydraulic, Electric/Hydraulic, Gas/Hydraulic or Diesel/Hydraulic

Benefits Include:

  • Low maintenance costs
  • Easy operator controls
  • Laminated diagrams and parts lists
  • Quality and Rugged construction
  • Dependable people for parts and service
  • "ChemGrout" we've been here for 30 years and will be here supporting your equipment needs

Applications Include:

Civil Engineering - soil nails, tiebacks, earth anchors, cable and rock bolts
Structural - building restoration, foundation stabilization, foundation raising, soil compaction grouting
Construction - post tensioning, pavement undersealing , slabjacking and slab raising
Marine - underwater foundations, piers, breakers, shoreline foundations
Mining - tunnel lining, contact grouting, shaft waterproofing
Utilities - encasements, waterproofing, sloip line grouting
Geotechnical - deep well casing, monitor wells, well sealing and abandonment

Specifications

Model

Pump

Power

 Mixing Tank  Holding Hopper Max. Output

Max. Pressure

CG030A 3" Piston Pump Air

45 Gallon

15 or 30 Gallon

16 GPM

400 PSI

CG030H 3" Piston Pump Hydraulic

45 Gallon

15 or 30 Gallon

12 GPM

300 PSI



 Model Number

Description

Dimensions

Weight

CG030/A Skid Mounted Air Powered Grout Plant
Requires 100 CFM, 100 PSI

60" L X 31" W X 29" H

180 lbs
CG030/H Skid Mounted Hydraulic Powered Grout Plant
Requires 17 GPM, 2000 PSI

60" L X 31" W X 29" H

270 lbs
CG550/030/A Skid Mounted Air Powered Grout Plant
Requires 150 CFM, 100 PSI

60" L X 31" W X 58" H

490 lbs
CG550/030/H Skid Mounted Hydraulic Powered Grout Plant
Requires 2 Supplies, each 7 GPM, 200 PSI

60" L X 31" W X 58" H

490 lbs
CG550/030/GHES Skid Mounted Gas/Hydraulic Grout Plant
18 HP Gasoline Engine with Electric Start

74" L X 31" W X 58" H

950 lbs
CG550/030/EHT Skid Mounted Electric/Hydraulic Grout Plant
Requires 230/460 V, 38/19 A, 3 Phase

74" L X 31" W X 58" H

950 lbs
CG550/030/DHES Skid Mounted Diesel/Hydraulic Grout Plant
20 HP Lombardini Diesel Engine with Electric Start

84" L X 34" W X 58" H

1080 lbs
CG555/030/GHES Trailer Mounted Self-Contained Grout Plant
18 HP Gasoline/Hydraulic Powered

110" L X 60" W X 70" H

1650 lbs
CG555/030/EH3 Trailer Mounted Electric/Hydraulic Grout Plant
Requires 230/460 V, 38/19 A, 3 Phase

110" L X 60" W X 70" H

1650 lbs
CG555/030/DHES Trailer Mounted Gas/Hydraulic Grout Plant
20 HP Lombardini Diesel Engine with Electric Start

110" L X 60" W X 70" H

1775 lbs



Call 1-800-458-3687 For Special Pricing On The
ChemGrout Pump For Your Specific Application
