Baileigh CS-315EU Cold Saw

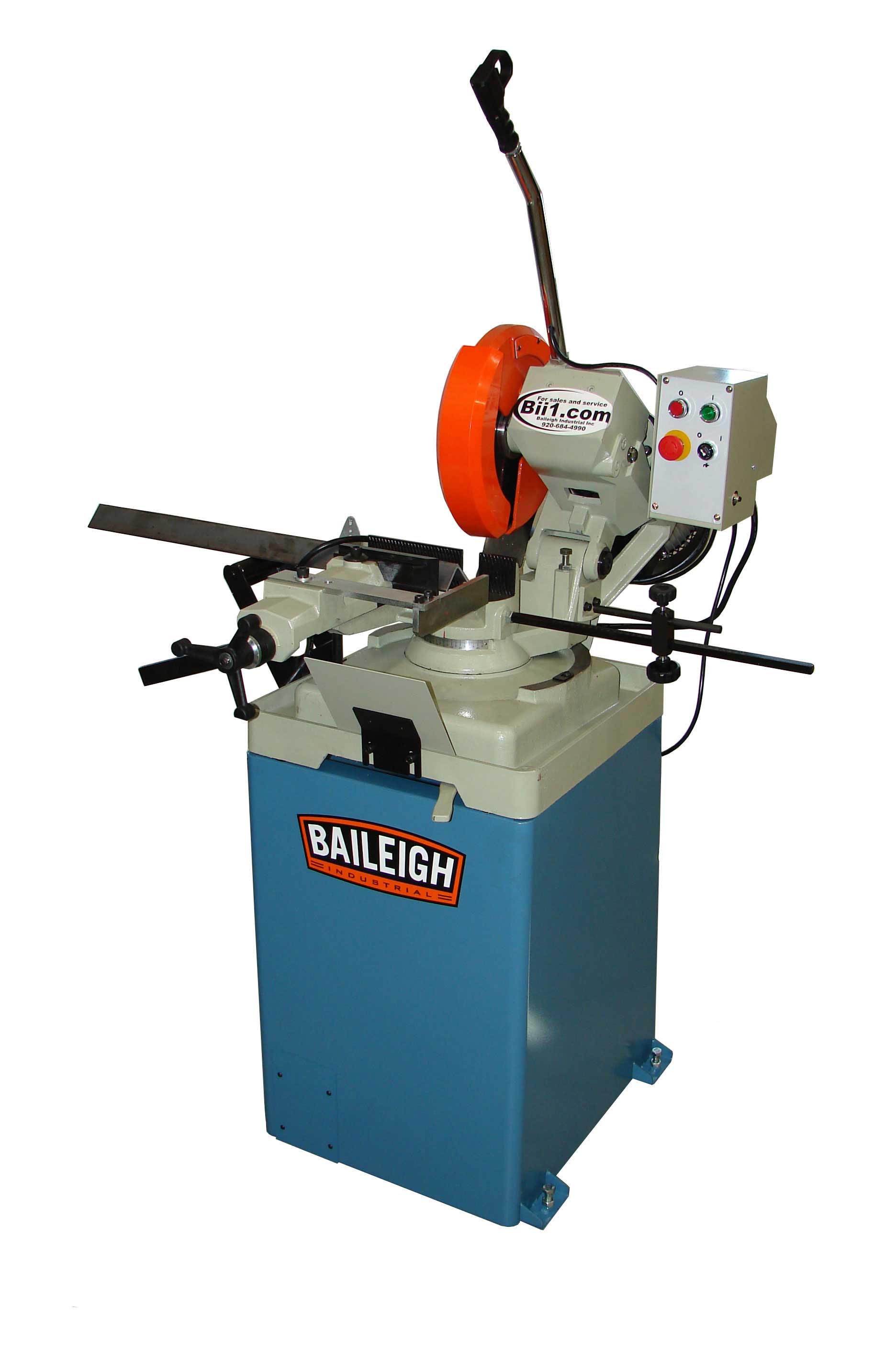

Model CS-315 Cold Saw

The CS-315 cold saw is a powerful machine that can cut through solids, tubing, or pipe. The head has a strong motor coupled to a direct drive gear box that allows the blade to cut through the material chatter free which increases blade life. The saw has a thick cast iron base making it very rigid that is mounted on a nice steel base.

This circular cold saw can miter 45 degrees to the left and 45 degrees to the right. The vise has a taper lock system that helps increase production when a lot of cutting is required. The vise clamps on both sides of the cut increasing blade life. The vise jaws are serrated for maximum hold.

Like all other Baileigh circular cold saws, it comes with a powerful coolant pump that cools the blade and washes chips away. This is the perfect machine for small shops and best yet it requires just 220V, single phase, 60 hertz power. This machine offers great value for a small price.


Click on image to enlarge

Specifications

MODEL

CS-315M

Maximum Blade Diameter (inches)

315mm (12.4")

Cold Saw Type Manual
Spindle Speed 52 RPM
Motor 2.5HP
Machine Dimensions 1020mm x 990mm x 1830mm
(40.16" x 38.98" x 72.05")
Electrical Service Requirements 220V/1PH/60Hz
Weight 175 KGS (386 Lbs)
Max Vise Opening 120mm (4.72")
Cooling Pump 1/8 HP
Coolant Tank 5L (1.32Gal)

Cutting Capacity - Model: CS-315EU

Head Swivel

90°

45°


88.9mm (3.5") 88.9mm (3.5")
50mm (1.97") 50mm (1.97")




Click on image to enlarge



BAICS-315EU
$2,095.00 $2,031.31
220Volt Single Phase Cold Saw W/Blade ::::: CALL 1-800-458-3687 for a Freight Rate On This Item
