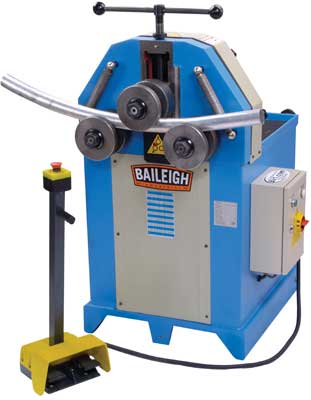

Note: Was previously the M35 Rollbender in older
catalogs
|
 |
Technical
Specifications and Standard Equipments
- Spheroid Cast Iron Frame
- Two Rolls are powered
- Rolls are hardened
- Rolls Shafts are Special Steel material hardened and
grinded
- Standard Rolls
- Guide Rolls
- Horizontal and Vertical Working Position
- Foot Pedal
- Users manual book
Optional Accessories
- Pipe/ Tube Bending Rolls
- Profile Bending Rolls
- Angle Bending Rolls
- Digital Read-Out
- Special Lateral Angle Guides
|
|
SPECIFICATIONS: R-M55 |
|
Shaft Diameter |
1.968" |
|
Upper Roll Diameter |
6.102" |
|
Lower Roll Diameters |
6.102" |
|
Shaft Speed |
9 rpm |
|
|
ELECTRICAL EQUIPMENT AND CONTROLS |
|
Electrics |
220V
Single Phase, 60Hz, 2 HP |
|
Weight |
881 lbs. |
|
Dimensions (l x w x h) |
37.41" x 35.83" x 50" |
|
|
CAPACITIES: |
|
Mild Steel |
Max. Size OD/Wall |
Min Dia |
|
Flat Bar Hard Way |
2-1/4" |
19.68" |
|
Flat Bar Easy Way |
3" |
23.62" |
|
Solid Square Rod |
1 3/8" |
23.62" |
|
Solid Round Rod |
1 3/8" |
23.62" |
|
Round Tube |
2 1/4" |
47.24" |
|
Pipe |
1 1/2" Schedule 10 |
39" |
|
Rectangular Tube |
2 1/4" x 1 1/8" |
51.18" |
|
Square Tube |
1 3/4" |
47.24" |
|
Angle Iron (Leg In) |
1 1/2" x 1 1/2" |
23.62" |
|
Angle Iron (Leg Out) |
1 1/2" x 1 1/2" |
23.62 |
|
T-Bar (Leg Out) |
2" x 2" |
23.62 |
|
T-Bar (Leg In) |
2" x 2" |
23.62 |
|
Channel (Legs Out) |
3 1/8" |
27.55 |
|
Channel (Legs In) |
3 1/8" |
27.55 |
|
Hardened Rolls for
standard profiles included with machine.
Forward-reverse foot pedal controls, 2-rolls
powered. |
|
 |
|
|
R-H55 TOOLING |
|
Model No. |
Description |
Price |
|
aluminum |
|
BAINRPR-H55-33.40 |
Nylon Round Pipe Rolls for a R-H55
1"" schedule 40 pipe |
$1,200.00 |
|
BAINRPR-H55-42.16 |
Nylon Round Pipe
Rolls for a R-H55 1-1/4"" schedule 40 pipe |
$1,200.00 |
|
BAINRPR-H55-48.26 |
Nylon Round Pipe Rolls for a R-H55
1-1/2"" schedule 40 pipe |
$1,200.00 |
|
BAINRPR-H55-60.3 |
Nylon Round Pipe
Rolls for a R-H55 (2"") outside diameter |
$1,200.00 |
|
BAINRTR-H55-19.05 |
Nylon Round Tube Rolls for a R-H55.
(3/4"") outside diameter |
$1,200.00 |
|
BAINRTR-H55-22.23 |
Nylon Round Tube
Rolls for a R-H55. (7/8"") outside diameter |
$1,200.00 |
|
BAINRTR-H55-25.4 |
Nylon Round Tube Rolls for a R-H55.
(1"") outside diameter |
$1,200.00 |
|
BAINRTR-H55-31.75 |
Nylon Round Tube
Rolls for a R-H55. (1 1/4"") outside diameter |
$1,200.00 |
|
BAINRTR-H55-38.1 |
Nylon Round Tube Rolls for a R-H55.
(1 1/2"") outside diameter |
$1,200.00 |
|
BAINRTR-H55-44.45 |
Nylon Round Tube
Rolls for a R-H55. (1-3/4"") outside diameter |
$1,200.00 |
|
BAINRTR-H55-50.8 |
Nylon Round Tube Rolls for a R-H55.
(2"") outside diameter |
$1,200.00 |
|
STEEL |
|
BAINSTR-H55-50.8 |
Steel Round Pipe Rolls for R-H55.
This tooling is for 1/2"" Pipe |
$1,200.00 |
|
BAISRPR-H55-26.67 |
Steel Round Pipe
Rolls for R-H55. This tooling is for 3/4"" Pipe |
$1,200.00 |
|
BAISRPR-H55-33.4 |
Steel Round Pipe Rolls for R-H55.
This tooling is for 1"" Pipe |
$1,200.00 |
|
BAISRPR-H55-42.16 |
Steel Round Pipe
Rolls for R-H55. This tooling is for 1-1/4"" Pipe |
$1,200.00 |
|
BAISRPR-H55-48.26 |
Steel Round Pipe Rolls for R-H55.
This tooling is for 1-1/2"" Pipe |
$1,200.00 |
|
BAISRPR-H55-60.325 |
Steel Round Pipe
Rolls for R-H55. This tooling is for 2"" Pipe |
$1,200.00 |
|
BAISRTR-H55-19.05 |
Steel Round Tube Rolls for a R-H55
(3/4"") outside diameter |
$1,200.00 |
|
BAISRTR-H55-25.4 |
Steel Round Tube
Rolls for a R-H55 (1"") outside diameter |
$1,200.00 |
|
BAISRTR-H55-31.75 |
Steel Round Tube Roll for a R-H55
(1-1/4"") outside diameter |
$1,200.00 |
|
BAISRTR-H55-38.1 |
Steel Round Tube
Rolls for a R-H55 (1-1/2"") outside diameter |
$1,200.00 |
|
BAISRTR-H55-44.45 |
Steel Round Tube Roll for a R-H55
(1-3/4"") outside diameter |
$1,200.00 |
|
BAISRTR-H55-50.8 |
Steel Round Tube
Roll for a R-H55 (2"") outside diameter |
$1,200.00 |
|
BAISRTR-H55-57.15 |
Steel Round Tube Roll for a R-H55
(2-1/4"") outside diameter |
$1,200.00 |
|
BAISRTR-H55-63.5 |
Steel Round Tube
Roll for a R-H55 (2-1/2"") outside diameter |
$1,200.00 |
|
BAISSTR-H55-12.7 |
Steel Square Tube Rolls for a R-H55
Square tubing size is (1/2""). |
$1,200.00 |
|
BAISSTR-H55-19.05 |
Steel Square Tube
Rolls for a R-H55 Square tubing size is (3/4""). |
$1,200.00 |
|
BAISSTR-H55-22.225 |
Steel Square Tube Rolls for R-H55
7/8"" Square tubing |
$1,200.00 |
|
BAISSTR-H55-25.4 |
Steel Square Tube
Rolls for a R-H55 Square tubing size is (1""). |
$1,200.00 |
|
BAISSTR-H55-31.75 |
Steel Square Tube Rolls for a R-H55
1-1/4"" Square Tubing |
$1,200.00 |
|
BAISSTR-H55-38.1 |
Steel Square Tube
Rolls for a R-H55 1-1/2"" Square Tubing |
$1,200.00 |
|
BAISSTR-H55-50.8 |
Steel Square Tube Rolls for R-H55 T
2"" Square Tubing |
$1,200.00 |
|
BAIR-H55
$20,995.00 $20,356.75
"220 Volt Three Phase Ring and Angle Roll Bending Machine with Hydraulic Movement of the Top Roll. Includes Digital Read-Out. 2-1/2"" Schedule 40 Maximum Capacity ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"
|
BAINRTR-H55-19.05
$1,300.00 $1,200.00
"Nylon Round Tube Rolls for a R-H55. (3/4"""") outside diameter. For aluminum .>>>FREE FREIGHT only when ordered with equipment"""
|
BAINRTR-H55-25.4
$1,300.00 $1,200.00
"Nylon Round Tube Rolls for a R-H55. (1"""") outside diameter. For aluminum.>>>FREE FREIGHT only when ordered with equipment"""
|
BAINRTR-H55-31.75
$1,300.00 $1,200.00
"Nylon Round Tube Rolls for a R-H55. (1-1/4"""") outside diameter. For aluminum .>>>FREE FREIGHT only when ordered with equipment"""
|
BAINRTR-H55-38.1
$1,300.00 $1,200.00
"Nylon Round Tube Rolls for a R-H55. (1-1/2"""") outside diameter. For aluminum.>>>FREE FREIGHT only when ordered with equipment"""
|
BAINRTR-H55-44.45
$1,300.00 $1,200.00
"Nylon Round Tube Rolls for a R-H55. (1-3/4"""") outside diameter. For aluminum.>>>FREE FREIGHT only when ordered with equipment"""
|
BAINRTR-H55-50.8
$1,300.00 $1,200.00
"Nylon Round Tube Rolls for a R-H55. (2"""") outside diameter. For aluminum >>>FREE FREIGHT only when ordered with equipment"""
|
BAINRTR-H55-63.50
$1,300.00 $1,200.00
"Nylon Round Tube Rolls for a R-H55. (2-1/2"""") outside diameter. For aluminum>>>FREE FREIGHT only when ordered with equipment"""
|
BAINRTR-H55-76.2
$1,300.00 $1,200.00
"Nylon Round Tube Rolls for a R-H55. (3"""") outside diameter. For aluminum>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRPR-H55-33.4
$1,300.00 $1,200.00
"Steel Round Pipe Rolls for a R-H55. (1"""" Pipe) outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRPR-H55-42.16
$1,300.00 $1,200.00
"Steel Round Pipe Rolls for a R-H55. (1-1/4"""" Pipe) outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRPR-H55-48.26
$1,300.00 $1,200.00
"Steel Round Pipe Rolls for a R-H55. (1-1/2"""" Pipe) outside diameter>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRPR-H55-60.32
$1,300.00 $1,200.00
"Steel Round Pipe Rolls for a R-H55. (2"""" Pipe) outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRPR-H55-73.025
$1,300.00 $1,200.00
"Steel Round Pipe Rolls for a R-H55. (2-1/2"""" Pipe) outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRPR-H55-88.9
$1,300.00 $1,200.00
"Steel Round Pipe Rolls for a R-H55. (3"""" Pipe) outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRTR-H55-25.4
$1,300.00 $1,200.00
"Steel Round Tube Rolls for a R-H55. (1"""") outside diameter>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRTR-H55-31.75
$1,300.00 $1,200.00
"Steel Round Tube Roll for a R-H55. (1-1/4"""") outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRTR-H55-38.1
$1,300.00 $1,200.00
"Steel Round Tube Rolls for a R-H55. (1-1/2"""") outside diameter >>>FREE FREIGHT only when ordered with equipment"""
|
BAISRTR-H55-44.45
$1,300.00 $1,200.00
"Steel Round Tube Rolls for a R-H55. (1-3/4"""") outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRTR-H55-50.8
$1,300.00 $1,200.00
"Steel Round Tube Rolls for a R-H55. (2"""") outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRTR-H55-63.5
$1,300.00 $1,200.00
"Steel Round Tube Rolls for a R-H55. (2-1/2"""") outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISRTR-H55-76.2
$1,300.00 $1,200.00
"Steel Round Tube Rolls for a R-H55. (3"""") outside diameter.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISSTR-H55-25.4
$1,300.00 $1,200.00
"Steel Square Tube Rolls for R-H55 roll bender to roll (1"""" OD) >>>FREE FREIGHT only when ordered with equipment"""
|
BAISSTR-H55-38.1
$1,300.00 $1,200.00
"Steel Square Tube Rolls for R-H55 roll bender to roll (1-1/2"""" OD)>>>FREE FREIGHT only when ordered with equipment"""
|
BAISSTR-H55-50.8
$1,300.00 $1,200.00
"Steel Square Tube Rolls for R-H55 roll bender to roll (2"""" OD) tubing.>>>FREE FREIGHT only when ordered with equipment"""
|
BAISSTR-H55-76.2
$1,300.00 $1,200.00
"Steel Square Tube Rolls for R-H55 roll bender to roll (3"""" OD) tubing.>>>FREE FREIGHT only when ordered with equipment"""
|
