DeFelsko Ultrasonic Thickness Gauge UTG Std & UTG ME
Ultrasonic Wall Thichness Gages



 utgme

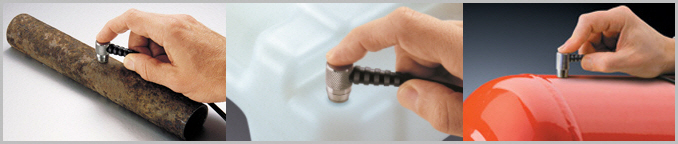

UTG Std ultrasonically measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side UTG ME features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating


Flip Display enables right-side-up viewing
whether the gage is in your hand,
on your belt or on a worktable

Download Literature

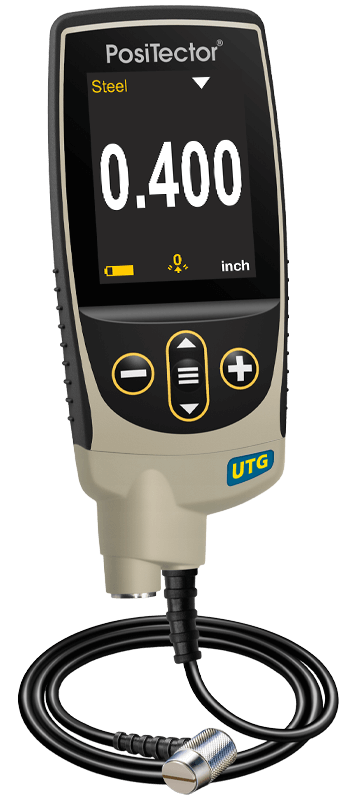

The PosiTector UTG measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

 Simple

  • Large, easy-to-read, graphics LCD
  • Enhanced one-handed menu navigation
  • Pre-programmed velocities - simply select from a list of common materials or enter your own with ease
  • Smart Couple - eliminates inadvertent decoupling- ideal for analyzing large areas using multiple passes
  • Flashing display - ideal for noisy environment
  • RESET feature instantly restores factory settings

 Durable

  • Solvent, acid, oil, water and dust resistant – weatherproof
  • Impact resistant lens
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster with belt clip
  • Two (2) year warranty on body and probe

 Accurate

  • Precision ultrasonic transducers provide fast, accurate readings
  • Certificate of Calibration (Long Form) showing traceability to NIST included
  • Conforms to national and international standards including
    ASTM E797
  • Built-in temperature compensation ensures measurement accuracy

 Versatile

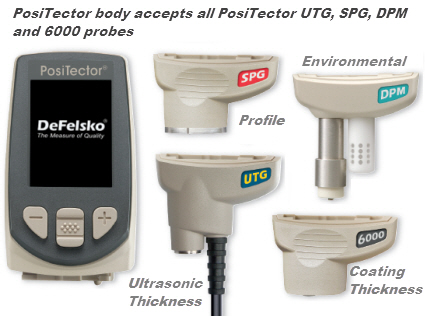

  • Gage body accepts all PosiTector UTG (wall thickness), SPG (surface profile), DPM (environmental) and 6000 (coating thickness) probes
  • Hi Contrast backlit display for bright or dark environments
  • Single or two point adjustment
  • Inch/mm switchable
  • Selectable display languages
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)

Powerful

  • Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
  • Statistics - continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Every stored measurement is date and time stamped
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
  • PosiTector.net account - a free web-based application offering secure storage of thickness readings
  • PosiSoft Software Compatible - Continue using the familiar legacy software you have used for years. Available as a free download.
  • Screen Capture -record and save image into USB flash memory for record keeping and review
  • Software updates via web keep your gage current

Step 1: Select a Body (Standard or Advanced features)

Standard Models

Includes ALL features as shown on At A Glance page plus...

  • Monochrome display with transflective technology enhances viewability in direct sunlight
  • Storage of 250 readings in one group – stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on At A Glance page plus...

  • Hi Contrast reversible color LCD
  • A-Scan with adjustable Gain and screen capture for further analysis and documentation
  • B-Scan - displays a cross sectional profile of the test material
  • Storage of 100,000 readings in up to 1,000 batches and sub-batches
  • Store thickness, profile and environmental measurements in individual batches
  • Onscreen Batch Annotation -add notes, change batch names, and more with the new builtâÄêin QWERTY keyboard
  • - Wireless Technology for data transfer to a computer or optional portable printer
  • Onscreen help, Real time graphing, picture prompting, and more . . .

Step 2: Select a Probe (UTG C or UTG M)

UTG C - Corrosion Probe

Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side

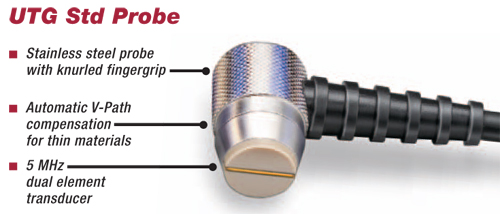

  • 5 MHz dual element transducer with wear resistant PEEK probe tip
  • Automatic V-Path compensation for thin materials

UTG M - Multiple-Echo Probe

Features ThruâÄêPaint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. The most accurate method to measure the remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.

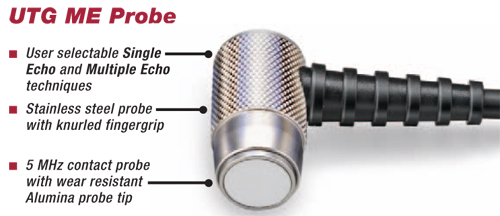

  • 5MHz contact probe with wear resistant Alumina probe tip
  • Multiple Echo technique averages 3 or more echoes for accurate and reliable readings
  • Most accurate method to measure remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense.
  • Toggle easily between..
    –Multiple Echo mode to eliminate coating thickness, and...
    –Single Echo mode to detect pits and flaws, and to increase the measurement range
Probe Details & Specifications Corrosion Multiple Echo
 Probe UTG C UTG M
 Probe Type 5 MHz Dual Element 5 MHz Contact
 Thru-Paint Capability (Multiple Echo) no yes
 Measurement Range* - Single Echo 0.040" to 5.000"
1.00 to 125.00 mm 		0.100" to 5.000"
2.50 to 125.00 mm
 Measurement Range* - Multiple Echo NA 0.100" to 2.500"
2.50 to 60.00 mm
 Resolution 0.001"
0.01 mm 		0.001"
0.01 mm
 Accuracy ±0.001"
±0.03 mm 		±0.001"
±0.0mm
* Measurement range is for carbon steel and depends upon surface condition, temperature and material



Technical Data
PosiTector UTG Model
UTG Std UTG ME
Probe Type 5 MHz dual element 5 MHz contact
Mode Single Echo Single Echo Multiple Echo
Measurement Range*

0.040" to 5.000"
1.00 to 125 mm

0.100" to 5.000"
2.50 to 125 mm 		0.100" to 2.500"
2.50 to 60.00 mm
Thru-Paint Capability no

no

yes
Measurement Rate - Normal 6 readings/sec 3 readings/sec
Measurement Rate - Scan 20 readings/sec n/a

Resolution

0.001" / 0.01 mm 0.001" / 0.01 mm
Accuracy ±0.001" / ±0.03 mm ±0.001" / ±0.03 mm
Gage Dimensions 5.75" x 2.5" x 1.2"
146 x 64 x 31 mm 		5.75" x 2.5" x 1.2"
146 x 64 x 31 mm
Weight (without batteries) 165 G (5.8 oz.) 165 G (5.8 oz.)
Warranty (Gage and Probe)

2 Years

2 Years

*Measurement range is for carbon steel and depends upon surface condition, temperature and material.



Pre-programmed Material Velocities

Material (Menu Option)

Longitudinal Velocity Min Range* Max Range*
in/us m/s in mm in mm
CAST IRON (Iron) 0.179 4547 0.040 1.02 5.000 127.00
SS 303 (SS303) 0.223 5664 0.040 1.02 5.000 127.00
STEEL 1018 (Steel) 0.233 5918 0.040 1.02 5.000 127.00
Al 2024 (Alum) 0.251 6375 0.050 1.27 5.000 127.00
PLEXIGLAS (Plexi) 0.106 2692 0.040 1.02 2.000 50.80
PVC (PVC) 0.094 2388 0.035 0.89 2.000 50.80
POLYSTYRENE (Poly) 0.081 2057 0.035 0.89 2.000 50.80
* Range may change depending on surface roughness, Temperature or Material Properties.

For a more complete list of Material Properties please refer to:  NDT Resource Center



Probe Features

s-h alt

s-h alt

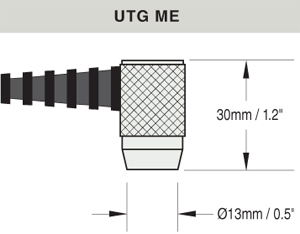

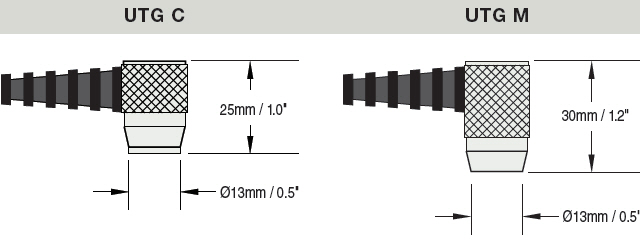

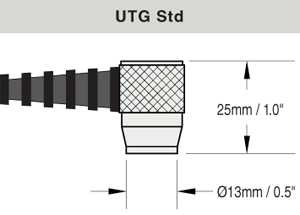

Probe Dimensions

s-h alt s-h alt

s-h alt

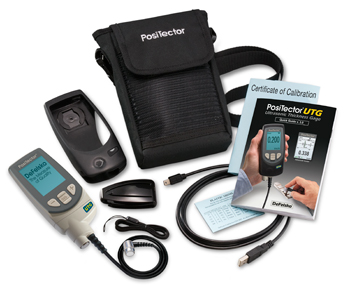

All gages come complete with...

  • probe
  • couplant
  • protective rubber holster with belt clip
  • 3 AAA batteries
  • instructions
  • nylon carrying case with shoulder strap
  • Certificate of Calibration traceable to NIST
  • two (2) year warranty
PosiTector UTG - Ultrasonic Thickness Gage
PRBUTGC-C UTG C - Corrosion Probe
PRBUTGM-C UTG M - Multiple Echo Probe
UTGC1-E PosiTector UTG C1 Standard
UTGC3-E PosiTector UTG C3 Standard
UTGM1-E PosiTector UTG M1 Standard
UTGM3-E PosiTector UTG M3 Standard
STDB1 PosiTector UTG Calibration Test Block (INCH)
STDB1M PosiTector UTG Calibration Test Block (METRIC)
GEL_P PosiTector® UTG Additional 4 oz. Ultrasonic Gel (case of 12):
IR_PRINTER IR Printer for use with PosiTector 200/UTG/PC
IR_PAPER 3 Rolls of IR paper

Ordering Guide

PosiTector UTG Corrosion Multiple Echo






s-h alt s-h alt s-h alt s-h alt

 Order Code

UTG C1 UTG C3 UTG M1 UTG M3
 Included Body Standard Advanced Standard Advanced
 Included Probe UTG C UTG M
 Probe Type 5 MHz Dual Element 5 MHz Contact
 Thru-Paint Capability (Multiple Echo) no yes
 Measurement Range* - Single Echo 0.040" to 5.000"
1.00 to 125.00 mm 		0.100" to 5.000"
2.50 to 125.00 mm
 Measurement Range* - Multiple Echo NA 0.100" to 2.500"
2.50 to 60.00 mm
 Resolution 0.001"
0.01 mm 		0.001"
0.01 mm
 Accuracy ±0.001"
±0.03 mm 		±0.001"
±0.03 mm
* Measurement range is for carbon steel and depends upon surface condition, temperature and material.

s-h alt

ALL GAGES COME COMPLETE with body and probe, couplant, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiTector.net account, two (2) year warranty.

SIZE: 146 x 61 x 28 (5.75â€Âù x 2.4â€Âù x 1.1â€Âù)

WEIGHT: 140 g (4.9 oz.) without batteries

CONFORMS TO: ASTM E797

Q. Should I purchase the PosiTector UTG Std or PosiTector UTG ME?
A

    Purchase the PosiTector UTG Std

  • to measure the effects of corrosion on unpainted structures or when coating thickness is not considered relevant
  • to measure pitted, corroded or eroded pieces
  • when a Scan Mode is required for thorough inspection

    Purchase the PosiTector UTG Std

  • when you want to eliminate the coating thickness from the total wall thickness
  • for measuring on sandblasted materials, hot surfaces or other applications requiring a more durable wear face
  • for best repeatability in manufactured parts inspection

Q. Why is it necessary to eliminate the coating thickness to get an accurate indication of remaining wall thickness?
A. Due to the acoustic differences between paint and metal, a layer of coating on metal will tend to make the metal appear thicker than actual. For best accuracy, remove the coating or eliminate it with a Multiple Echo gage (UTG ME).

Q. Why does the PosiTector UTG ME include both Multiple and Single Echo operating modes?
A. Multiple Echo mode eliminates coatings from thickness measurements. Even when there is no coating it produces repeatable, accurate measurements by averaging 3 or more back wall reflections. Single Echo mode has better sensitivity for detecting pits & flaws. It also increases the measurement range of the gage.

Q. Can the PosiTector UTG store or print data?
A. Yes. Both PosiTector UTG models have an internal memory of 10,000 readings in up to a 1,000 batches which can be viewed on the LCD, printed to an IR wireless printer (option) or downloaded to a PC using PosiSoft software (option).

Q. How is the PosiTector UTG calibrated at DeFelsko?
A. The PosiTector UTG is calibrated against known standards using NIST traceable standards. A Certificate of Calibration containing actual thickness measurements is included with every gage.

Q. How do I make calibration adjustments to PosiTector Ultrasonic Thickness Gages?

A. Using the user-friendly menu, the PosiTector UTG can be easily adjusted for a particular material in one of four ways...

  1. Known Material – select from a list of common pre-programmed materials
  2. Velocity – enter the known velocity of the material
  3. Known thickness – measure a known thickness of your material
  4. Two point adjustment – for best accuracy, measure two known thicknesses and the gage will calculate velocity and probe zero offset

Q. What is IP5X?

A. An Ingress Protection number or IP is used to specify the environmental protection of enclosures around electronic equipment. The NEW PosiTector UTG is rated IP5X indicating protection against dust ingress. The dust test for IP5X is conducted in a dust chamber for 8 hours, with talcum powder (2kg per cubic meter of the test chamber) circulating, so it continually falls down onto the equipment under test. The IP rating system has been in use in Europe and other countries outside of North America for many years.


Q. Can PosiTector 6000 or 200 probes  be attached to the PosiTector UTG?
A. No. Although the PosiTector UTG shares many of the same features as the PosiTector 6000 and PosiTector 200 and has a similar appearance, probes are not interchangeable. A PosiTector UTG probe will not work on a PosiTector 6000 or 200, and a PosiTector 6000 or 200 probe will not work on a PosiTector UTG.
DEFPRBUTGC-C mfg. item #: PRBUTGC-C
$715.00
UTG C - CORROSION PROBE FOR POSITECTOR
lease to own for as little as:$14 per month! 75
FREE SHIPPING ANYWHERE in lower 48 states21

DEFPRBUTGM-C mfg. item #: PRBUTGM-C
$1415.00
UTG M - MULTIPLE ECHO PROBE FOR POSITECTOR
lease to own for as little as:$28 per month! 75
FREE SHIPPING ANYWHERE in lower 48 states21

DEFUTGC1-E mfg. item #: UTGC1-E
$995.00
POSITECTOR UTG C1 STANDARD ULTRASONIC THICKNESS GAGE
lease to own for as little as:$20 per month! 75
FREE SHIPPING ANYWHERE in lower 48 states21

DEFUTGC3-E mfg. item #: UTGC3-E
$1395.00
POSITECTOR UTG C3 ADVANCED ULTRASONIC THICKNESS GAGE
lease to own for as little as:$28 per month! 75
FREE SHIPPING ANYWHERE in lower 48 states21

DEFUTGM1-E mfg. item #: UTGM1-E
$1695.00
POSITECTOR UTG M1 STANDARD ULTRASONIC THICKNESS GAGE
lease to own for as little as:$34 per month! 75
FREE SHIPPING ANYWHERE in lower 48 states21

DEFUTGM3-E mfg. item #: UTGM3-E
$1885.50   msrp $2095.00
POSITECTOR UTG M3 ADVANCED ULTRASONIC THICKNESS GAGE
lease to own for as little as:$38 per month! 75
FREE SHIPPING ANYWHERE in lower 48 states21

DEFSTDB1 mfg. item #: STDB1
$275.00
CERTIFIED STEP BLOCK B1 -INCH FOR ULTRASONIC THICKNESS GAGES
  75
FREE shipping when ordered with a machine from this manufacturer.20

DEFSTDB1M mfg. item #: STDB1M
$275.00
CERTIFIED STEP BLOCK B1M -MM FOR ULTRASONIC THICKNESS GAGES
  75
FREE shipping when ordered with a machine from this manufacturer.20

DEFGEL_P mfg. item #: GEL_P
$150.00
ULTRASONIC COUPLANT POSITECTOR (CASE OF 12)
  75
FREE shipping when ordered with a machine from this manufacturer.20

DEFIR_PRINTER mfg. item #: IR_PRINTER
$259.00
MARTEL IR PRINTER
  75
FREE shipping when ordered with a machine from this manufacturer.20

DEFIR_PAPER mfg. item #: IR_PAPER
$8.00
PRINTER PAPER - 3 ROLLS FOR THE IR PRINTER
  75
FREE shipping when ordered with a machine from this manufacturer.20


  • Hours: Monday - Friday
    8:00 AM to 7:00 pm Eastern
  • Toll Free: 1-800-458-3687
    786-866-9865

  • Fax: 865-376-9792
  • American Express American Express American Express
Copyright © 2013 Smith-Hamilton, Inc
0.007 1186 03:21:15
