Programmable Tubing Benders - Model 350-S
- Programmable Electric Tube Bending Machine
- This tubing bender has a maximum capacity of 2.5
inch Schedule 40 pipe, 3 inch tube (.187 wall
thickness), 3 inch square tubing (.093 wall thickness)

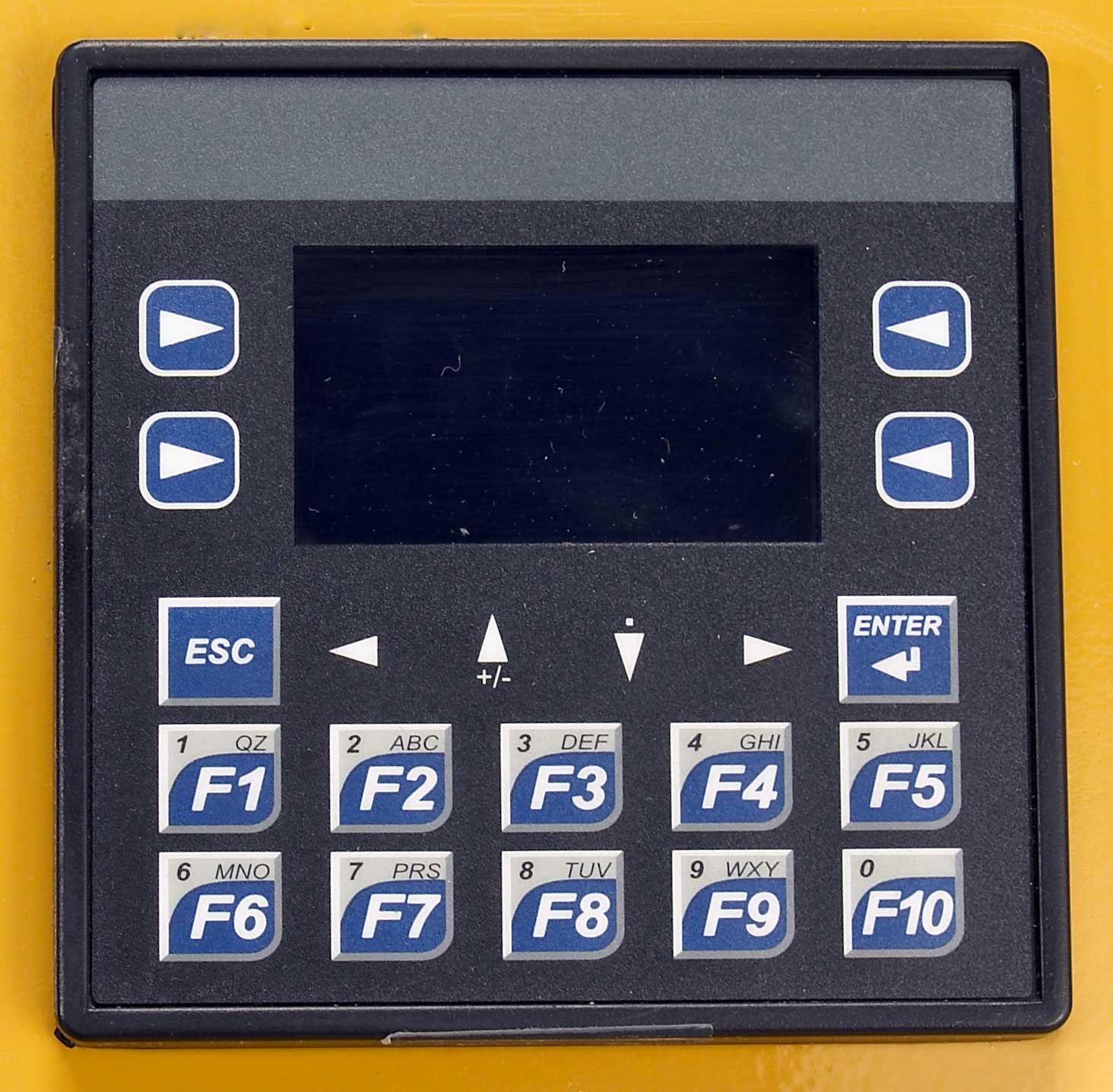

- The OCS (Operator Control Station) allows for quick,
accurate repeatability of multiple or single bends.
Unit can store up to 20 programs with 10 bends per
program. The OCS unit is extremely easy to program.
- Extra heavy duty design normally seen on larger
models of bending machines means more value for the
investment.
- Quick release counter die system allows for maximum
efficiencies for high production runs.
- Maximum bend is 180 degrees (plus spring back up to
206 degrees).
- The model 350 tubing bender has a maximum bend speed
of 6 seconds at 180 degrees.
- This tubing bender has a larger CLR than almost all
other bending equipment on the market. The maximum CLR
is 24 inch.
- Power is 240 V, 3 phase, 60 Hertz, 30 amp
- Weight is approximately 1200 lbs (solid steel
construction)
- Similar to other RMD programmable tubing benders,
the model 350 can be fitted with a rotary positioning
table allowing for accurate bends in varying planes, as
well as consistent measurements between bends.
- Bend Material: Round or square tubing, pipe, flat
stock, angle iron, or solid rod.
- RMD tube benders are made in America!
|
FEATURES &
BENEFITS:
- Operator Control Station allows user to store up to
20 programs, with up to 10 bends per program.
- Extra heavy duty design normally seen on larger
models, means more value for the investment.
- The Model 350-S pipe benders utilizes a portable
cart with wheels for easy mobilization around the
production floor.
- To program a bend punch in the bend (bend 1, 2, 3,
etc.), then desired angle, add spring back for the
material. When complete run program with one or multiple
bends. Operator interface can store up to 20 programs
for quick set up.
- This pipe benders capacity is up to 2.5 inch
Schedule 40 Pipe (up to 3.0 inch tube .187 wall
thickness).
- Operator Control Station allows operator to control
the bend (speed, forward, reverse, etc.).
- Quick Release Counter Die System allows maximum
efficiencies for high production runs.
- All die sets are color coded for easy identification
(green for pipe, blue for tube, and gray for square).
- Foot pedal indexing allows for hands free operation
|
SPECIFICATIONS:
- Power: Model 350-S pipe benders are 240 V, Three
Phase, 60 hertz.
- Bend Material: Round or square tubing, pipe, flat
stock, angle iron, or solid rod.
- Fast Change Over: Dies and counter dies can be
changed out in a matter of seconds, no tools required.
- Maximum bend is 180 degrees (plus spring back).
- Maximum speed is 6 seconds at 180 degrees.
- Maximum Center Line Radius is 24 inch.
- Speed: Five preset speeds to choose from (depending
on material).
- Custom dies available
- This pipe benders weight is Approximately 1200 lbs.
OPTIONS:
- Rotary positioning table available in various table
lengths for repeatable bends in a single piece of
material. Allows this bending machine to have accurate
bends in varying planes, as well as consistent
measurements between bends.
|
|
Standard programmer can hold up to 170 programs with 10
bends per program!
|

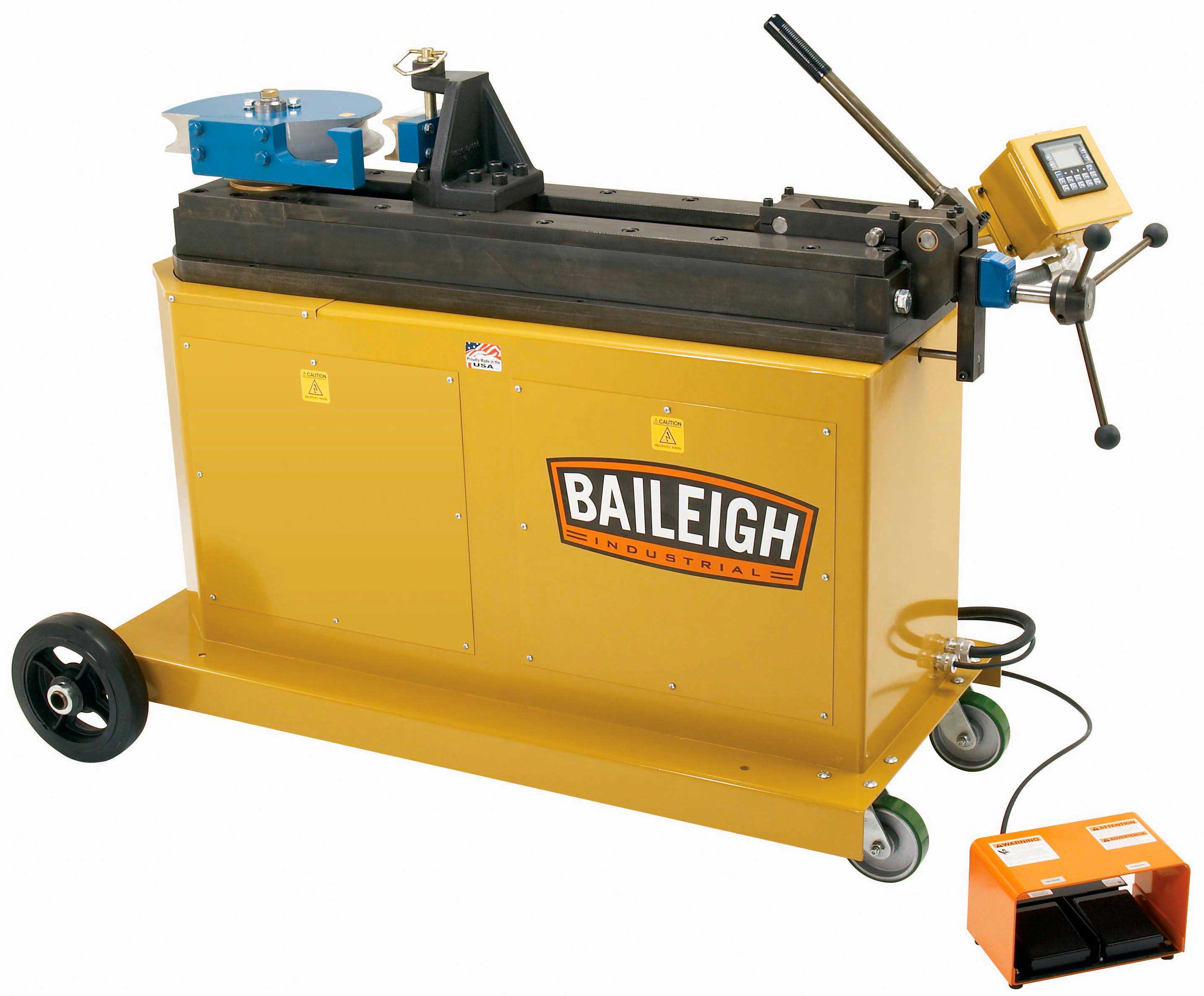

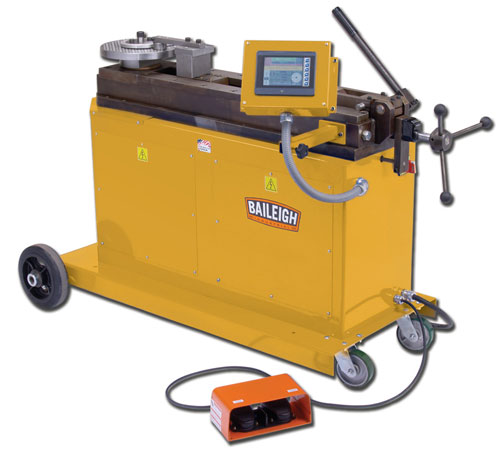

Programmable Tubing Benders -
Model RDB-350-TS
-
The ultimate job shop bender
-
Bends up to 2 1/2" schedule 40 pipe, 3"
square, and more (see capacity chart in catalog)
-
Programmable, portable, and easy to
operate
-
Easy to program and operate
-
Holds 140 programs, 10 bends each
-
220V, 3-phase
-
Touch Screen Interface
-
Quick release counter die system
-
Optional Positioning table for
multi-bend / multi-plane parts
-
24" CLR maximum
|

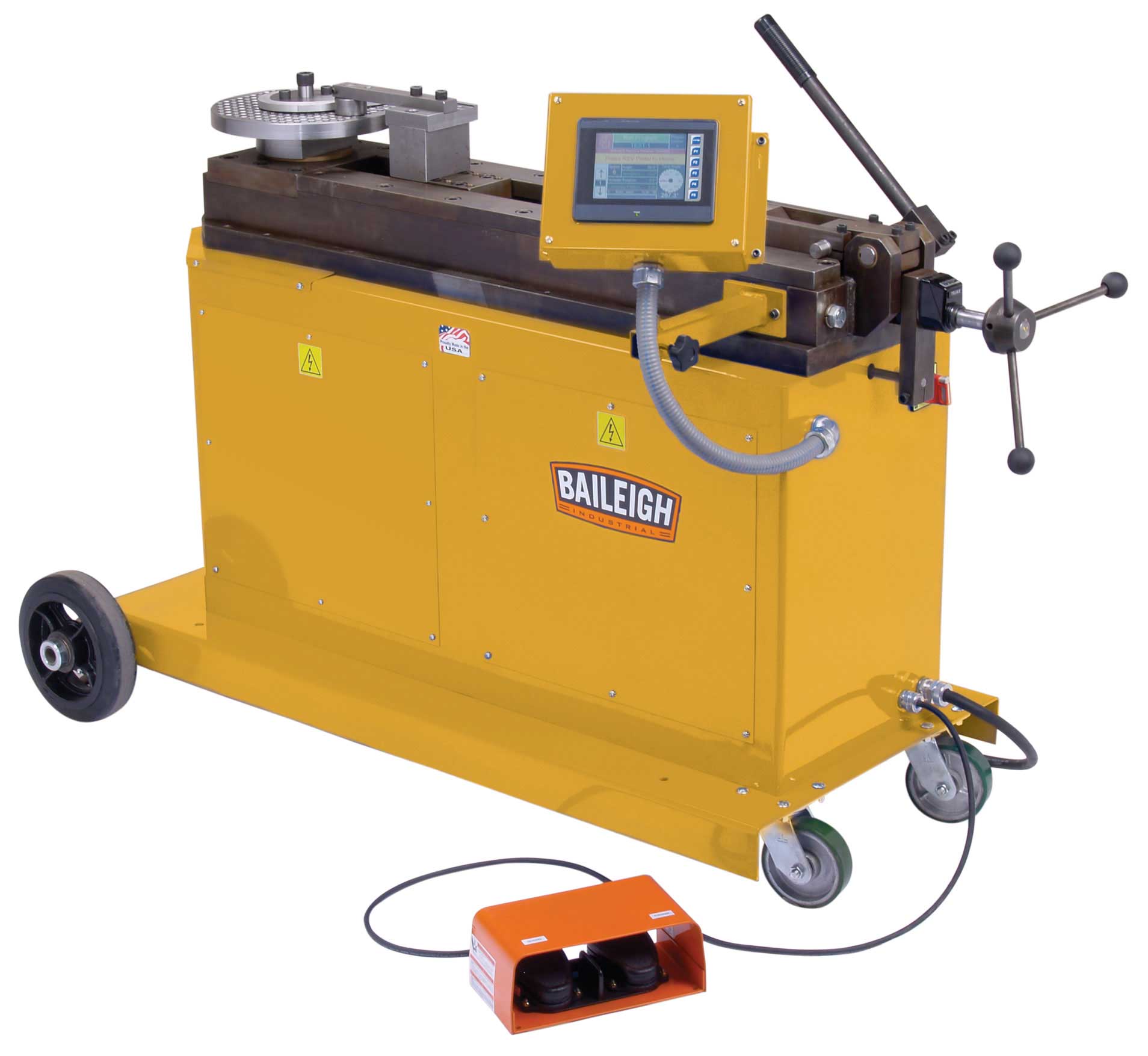

Click image to enlarge |
|
Specifications and Capacities: RDB-350 |
| Mild Steel Pipe (Schedule 40) |
2.5" |
| Aluminum Pipe (Schedule 40) |
3" |
| Stainless Steel Pipe (Schedule
40) |
2" |
| Mild Steel Round Tube (Wall) |
3" (.187) |
| Aluminum Round Tube (Wall) |
3.5" (.250) |
| Stainless Steel Round Tube
(Wall) |
3" (.125) |
| Chromolly Round Tube (Wall) |
2.5" (.125) |
| Mild Steel Solid Rod |
1.5" |
| Mild Steel Square Tube (Wall) |
3" (.125) |
| Minimum OD |
.25" |
| Maximum Speed to 180 Degrees |
16 Seconds |
| Maximum Center Line Radius (CLR) |
24" |
| Minimum CLR |
.5" |
| Power Requirements |
***220V (3-Phase) |
| Weight (Lbs.) |
1500 |
| Length |
69" |
| Width |
32" |
| Height |
46" |
|
*** Other Voltages available by special order |
|
|
Specifications and Capacities:
RDB-350-TS |
| Mild Steel Pipe (Schedule 40) |
2.5" |
| Aluminum Pipe (Schedule 40) |
3" |
| Stainless Steel Pipe (Schedule
40) |
2" |
| Mild Steel Round Tube (Wall) |
3" (.187) |
| Aluminum Round Tube (Wall) |
3.5" (.250) |
| Stainless Steel Round Tube
(Wall) |
3" (.125) |
| Chromolly Round Tube (Wall) |
2.5" (.125) |
| Mild Steel Solid Rod |
1.5" |
| Mild Steel Square Tube (Wall) |
3" (.125) |
| Minimum OD |
.25" |
| Maximum Speed to 180 Degrees |
16 Seconds |
| Maximum Center Line Radius (CLR) |
24" |
| Minimum CLR |
.5" |
| Power Requirements |
***220V (3-Phase) |
| Weight (Lbs.) |
1500 |
| Length |
69" |
| Width |
32" |
| Height |
46" |
|
*** Other Voltages available by special order |
|
|
|
