Tubing Bender
Positioning Table - Model IDX-10
- RMD electric programmable tubing benders can be
equipped with the optional tubing bender positioning
table. A tubing bender fitted with a rotary positioning
table allows for accurate bends in varying planes, as
well as consistent measurements between bends
- RMD tube benders that can be fitted with the table
are the models 200-S, 300-S, 300-P, 300-S-w/OCS,
350-S-w/OCS, and the Model 400-S. The positioning table
can be attached or taken off of the tubing bender with
ease.
- The IDX-10 comes standard with a 10 foot table. We
do offer an optional IDX-15 that features a 15 foot
table.

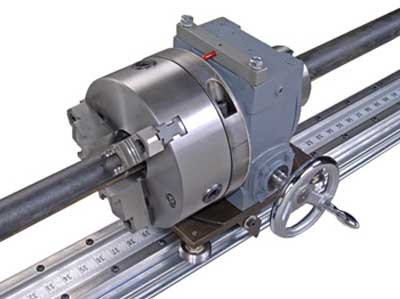

- The positioning carriage rolls on a precision V
block rail and rides the rail using V-block bearings.
- The positioning carriage has a heavy duty lubricated
gear box that is used to turn the position of the
completed bend to the desired varying plane. To change
the plane of bend, the operator simply turns a hand
wheel and stops at the plane of bend angle (large 360
degree angle dial).
- The table comes with an 8" three jaw chuck with
2-1/2" thru hole that allows for longer pieces of tubing
than the table length. Chuck can handle up to 4-1/2"
OD. The minimum OD is 1/4".
- The table has a linear indicator strip so the
operator can set up accurate distances between bends.
Mechanical stops can be positioned for the start of each
bend. Using the mechanical stops is very beneficial for
repeatability on bigger production runs.
- RMD tubing benders equipped with the tube benders
positioning table is great for hand railing, auto
chassis, furniture, marine products, playground
equipment, and hundreds of additional applications.
- Like a RMD tubing bender, the positioning table is
made in America!
|
|
