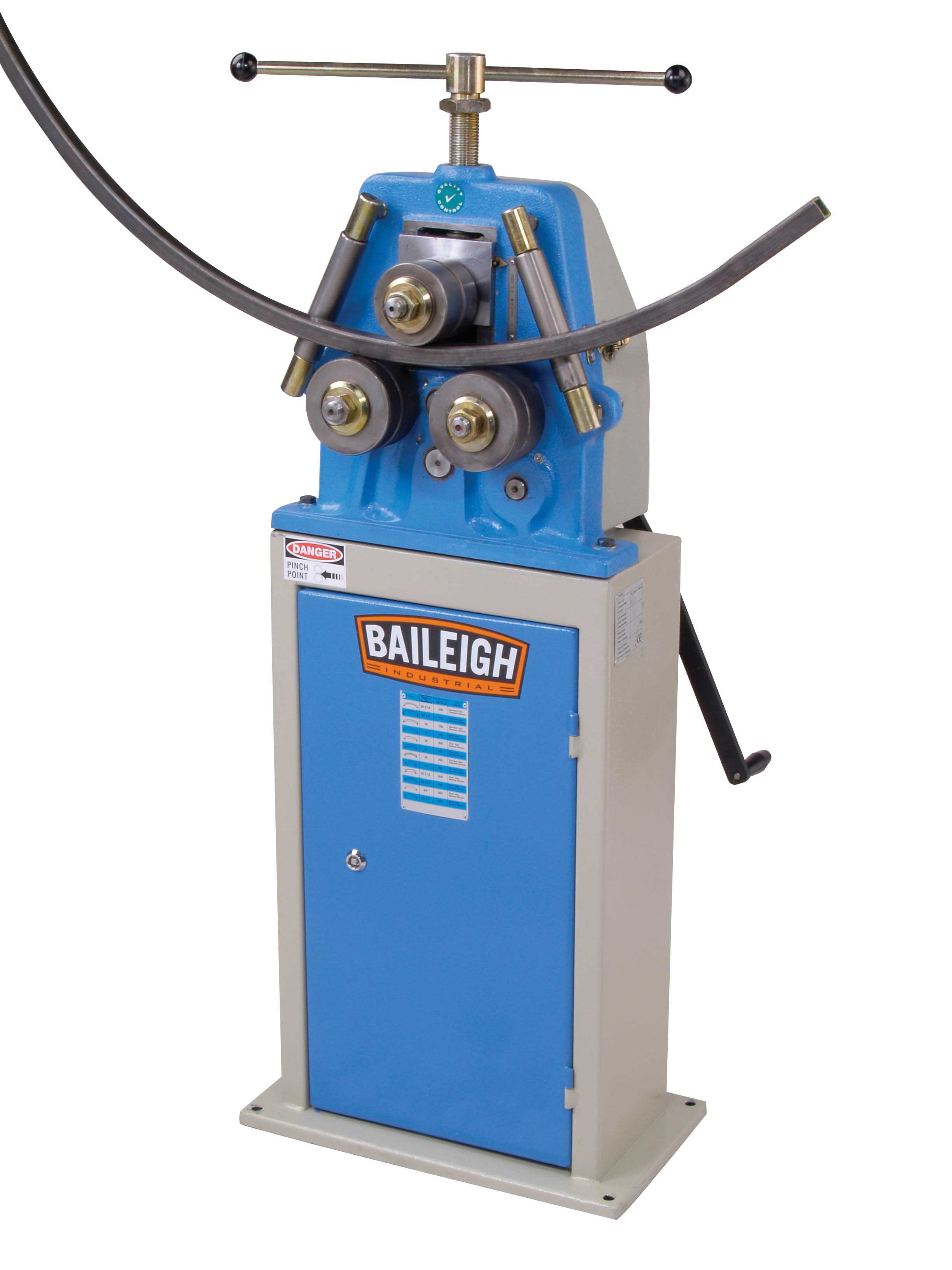

Baileigh M-10 Bender at Southern Tool Catalog

Baileigh RM-10

Technical Specifications and Standard Equipments

Two rolls are manually powered
Special cast frame
Shafts are hardened with special steel material
Rolls are special steel material hardened and grinded
Gears milled with full material
Standard rolls, guide rollers, manual working
Users manual book

Optional Accessories

Special rolls

SPECIFICATIONS
Roll Adjustment	Manual
Pinch	Single
Shaft Diameter	30mm/1.181"
Roll Diameter Upper	98mm/3.86"
Roll Diameter Lower	118mm/4.65"
Shaft Center Distance (lower rolls)	3.86"
Driven Rolls	2
Speeds	N/A
Motor	N/A
Power Requirement	Manual
Shipping Dimensions (L/W/H)	60” / 44” / 68”
Shipping Weight	435 lbs

CAPACITIES:
Pipe	1" (sch.40)	28"
Round Tube	1.25" (.078")	31.5"
Square Tube	1.2"(.078"	35"
Angle Iron	1.25"(.157")	30"
Solid Square	.75"	20"
Solid Round	.875"	20"
Flat Bar Easy Way	2"	15.75"
Flat Bar Hard Way	.75"	6.5"

R-M10 Tooling
Model No.	Description
Aluminum
NSR-M10/20-Standard	Set of standard rolls made in nylon for model R-M10 roll bender
NRTR-M10-19.05	Nylon Round Tube Rolls for a R-M10. (3/4"") outside diameter
NRTR-M10-22.225	Nylon Round Tube Rolls for a R-M10. (7/8"") outside diameter
NRTR-M10-25.4	Nylon Round Tube Rolls for a R-M10. (1"") outside diameter
NRTR-M10-31.75	Nylon Round Tube Rolls for a R-M10. (1-1/4"") outside diameter
NRTR-M10-38.1	Nylon Round Tube Rolls for a R-M10. (1-1/2"") outside diameter
BAINRTR-M10-44.45	Nylon Round Tube Rolls for a R-M10. (1-3/4"") outside diameter
NRTR-M10-50.8	Nylon Round Tube Rolls for a R-M10. (2"") outside diameter
NRTR-M10/20-25.4	Nylon Round Tube Rolls for R-M10. (1"") outside diameter
NSTR-M10-25.4	Nylon Square Tube Rolls for a R-M10. (1"") outside diameter
Steel
BAISRTR-M10-9.525	Steel Round Tube Rolls for R-M10. (3/8"") outside diameter
BAISRTR-M10-12.7	Steel Round Tube Rolls for R-M10. (1/2"") outside diameter
BAISRTR-M10/20-19.05	Steel Round Tube Rolls for a R-M10. (3/4"") outside diameter
BAISRTR-M10/20-22.225	Steel Round Tube Rolls for a R-M10. (7/8"") outside diameter
BAISRPR-M10/20-26.67	Steel Round Pipe Rolls for a R-M10. (3/4"" Pipe) outside diameter
BAISRPR-M10/20-33.4	Steel Round Pipe Rolls for a R-M10. (1"" Pipe) outside diameter
BAISRPR-M10/20-48.26	Steel Round Pipe Rolls for a R-M10. (1-1/2"" Pipe) outside diameter
BAISRTR-M10/20-20	Steel Round Tube Rolls for a R-M10. 20mm outside diameter
