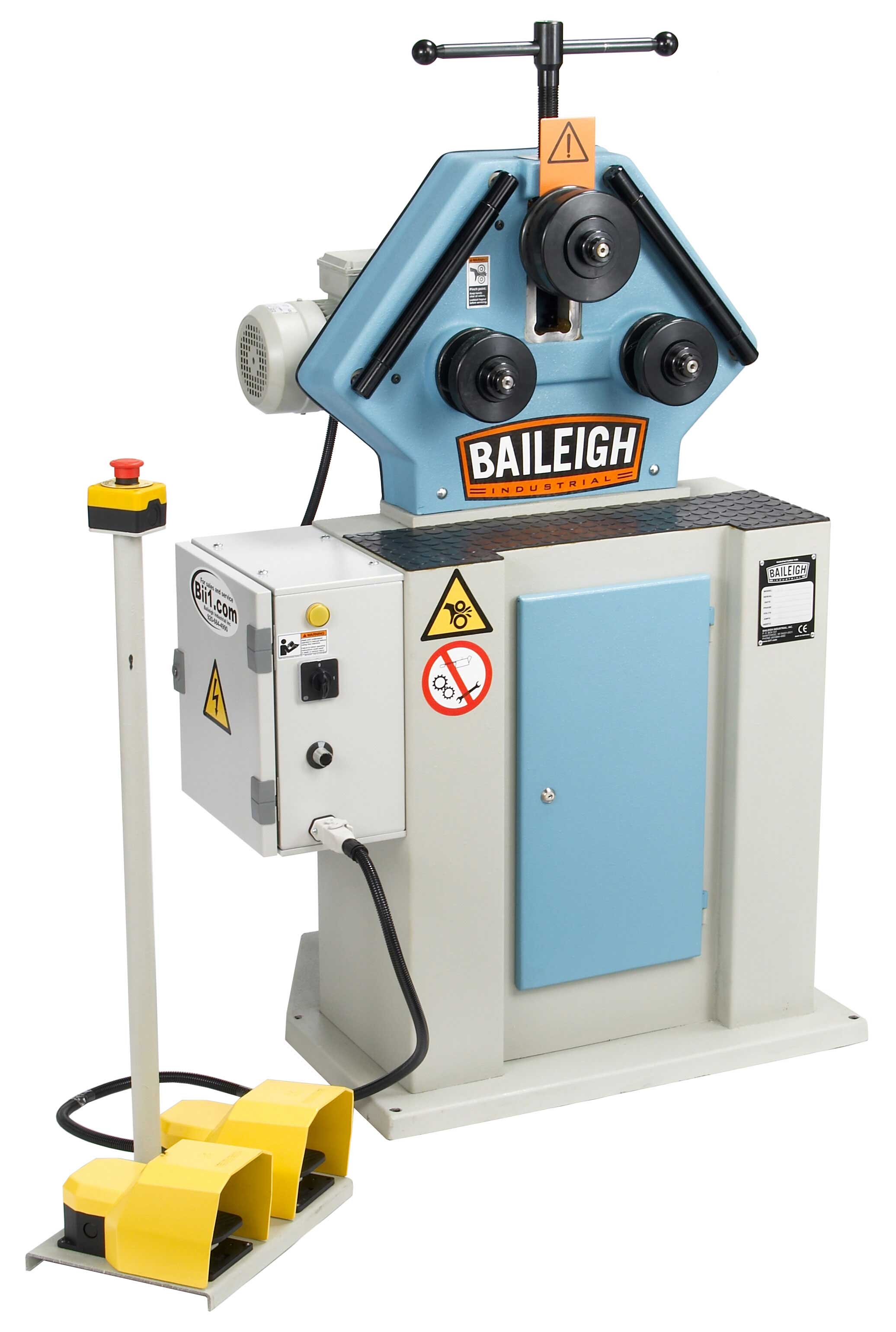

Baileigh R-M40 Bender

Click image to enlarge





R-M40 in horizontal working position

Click image to enlarge

Model M-40 Bender

Standard Equipments

  • Two Driven Rolls

  • Variable Speed

  • Rolls are hardened

  • Shafts are Special Steel material hardened an ground

  • Standard Rolls

  • Guide Rolls

  • Horizontal and Vertical Working Position

  • Foot Pedal

  • User’s manual book

Optional Accessories

  • Pipe/ Tube Bending Rolls

  • Profile Bending Rolls

  • Angle Bending Rolls

SPECIFICATIONS
Roll Adjustment
Manual
Pinch
Single
Shaft Diameter
30mm/1.181"
Roll Diameter Upper
130mm/5.181"
Roll Diameter Lower
130mm/5.181"
Shaft Center Distance (lower rolls)
10.88"
Driven Rolls
2
Digital Readout
N/A
Speeds
10.6-21.2 rpm (variable)
Motor
2 hp
Power Requirement
220v / 1 phase
Shipping Dimensions (L/W/H)
60” / 44” / 68”

Shipping Weight

560 lbs

CAPACITIES
Capacity
Size
Min Diameter
Pipe
1.5” (sch.40)
28"
Round Tube
2.375” (.078”)
27.55"
Square Tube
1.5” (.083”)
39"
Angle Iron
1.5” (.1875”)
22"
Solid Square
1.25”
20"
Solid Round
1.375”
24"
Flat Bar Easy Way
3"(.5")
15.75"
Flat Bar Hard Way 2.25" (.375') 20"

R-M40 TOOLING

Nylon Tube Rolls
Model No. Description Price
NRTR-M40-19.05 Nylon Round Tube Rolls for a R-M40.  (3/4") Outside Diameter $900.00
NRTR-M40-25.4 Nylon Round Tube Rolls for a R-M40.  (1") Outside Diameter $900.00
NRTR-M40-31.75 Nylon Round Tube Rolls for a R-M40.  (1-1/4") Outside Diameter $900.00
NRTR-M40-38.1 Nylon Round Tube Rolls for a R-M40.  (1-1/2") Outside Diameter $900.00
NRTR-M40-44.45 Nylon Round Tube Rolls for a R-M40.  (1-3/4") Outside Diameter $900.00
NRTR-M40-50.8 Nylon Round Tube Rolls for a R-M40.  (2") Outside Diameter $900.00
Steel Tube Rolls
Model No. Description Price
SRTR-M40-25.4 Steel Round Tube Rolls for R-M40. (1"") Outside Diameter $900.00
SRTR-M40-31.75 Steel Round Tube Rolls for R-M40. (1-1/4"") Outside Diameter $900.00
SRTR-M40-38.1 Steel Round Tube Rolls for R-M40. (1-1/2"") Outside Diameter $900.00
Steel Pipe Rolls
Model No. Description Price
SRPR-M40-26.67 Steel Round Pipe Rolls for R-M40. (3/4") Outside Diameter $900.00
SRPR-M40-33.40 Steel Round Pipe Rolls for R-M40. (1") Outside Diameter $900.00
SRPR-M40-42.16 Steel Round Pipe Rolls for R-M40. (1-1/4") Outside Diameter $900.00




BAIR-M40
$5,395.00 $5,230.99
"220V Single Phase Ring and Angle Roll Bending Machine with Manually Adjusted Top Roll. 1-1/2"" Schedule 40 Maximum Capacity ::::: CALL 1-800-458-3687 for a Freight Rate On This Item"


BAINRTR-M40-19.05
$975.00 $900.00
"Nylon Round Tube Rolls for a R-M40.  (3/4"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""


BAINRTR-M40-25.4
$975.00 $900.00
"Nylon Round Tube Rolls for a R-M40.  (1"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""


BAINRTR-M40-31.75
$975.00 $900.00
"Nylon Round Tube Rolls for a R-M40.  (1-1/4"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""


BAINRTR-M40-38.1
$975.00 $900.00
"Nylon Round Tube Rolls for a R-M40.  (1-1/2"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""


BAINRTR-M40-44.45
$975.00 $900.00
"Nylon Round Tube Rolls for a R-M40.  (1-3/4"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""


BAINRTR-M40-50.8
$975.00 $900.00
"Nylon Round Tube Rolls for a R-M40.  (2"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""


BAISRTR-M40-25.4
$975.00 $900.00
"Steel Round Tube Rolls for R-M40. (1"""") Outside Diameter >>>FREE FREIGHT only when ordered with equipment"""


BAISRTR-M40-31.75
$975.00 $900.00
"Steel Round Tube Rolls for R-M40. (1-1/4"""") Outside Diameter >>>FREE FREIGHT only when ordered with equipment"""


BAISRTR-M40-38.1
$975.00 $900.00
"Steel Round Tube Rolls for R-M40. (1-1/2"""") Outside Diameter >>>FREE FREIGHT only when ordered with equipment"""


BAISRPR-M40-26.67
$975.00 $900.00
"Steel Round Pipe Rolls for R-M40. (3/4"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""


BAISRPR-M40-33.40
$975.00 $900.00
"Steel Round Pipe Rolls for R-M40. (1"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""


BAISRPR-M40-42.16
$975.00 $900.00
"Steel Round Pipe Rolls for R-M40. (1-1/4"") Outside Diameter>>>FREE FREIGHT only when ordered with equipment"""
