Tapping and Assembly Arms

Baileigh Tapping Arms
baileigh ATM-27-1000 Pneumatic Tapping Arm Baileigh ATM-27-1900 Pneumatic Tapping Arm Baileigh Electronically Controlled Tapping Arm ETM-32-1500 Baileigh Electronically Controlled Tapping Arm EATM-32-1900
Baileigh ATM-27-1000 Pneumatic Tapping Arm Baileigh ATM-27-1900 Pneumatic Tapping Arm Baileigh Electronically Controlled Tapping Arm ETM-32-1500 Baileigh Electronically Controlled Tapping Arm EATM-32-1900



Models
ATM-27-1000 ATM-27-1000 Pneumatic Tapping Arm
ATM-27-1900 ATM-27-1900 Pneumatic Tapping Arm
ETM-32-1500 ETM-32-1500 Electronically Controlled Tapping Arm
EATM-32-1900 EATM-32-1900 Electronically Controlled Tapping Arm

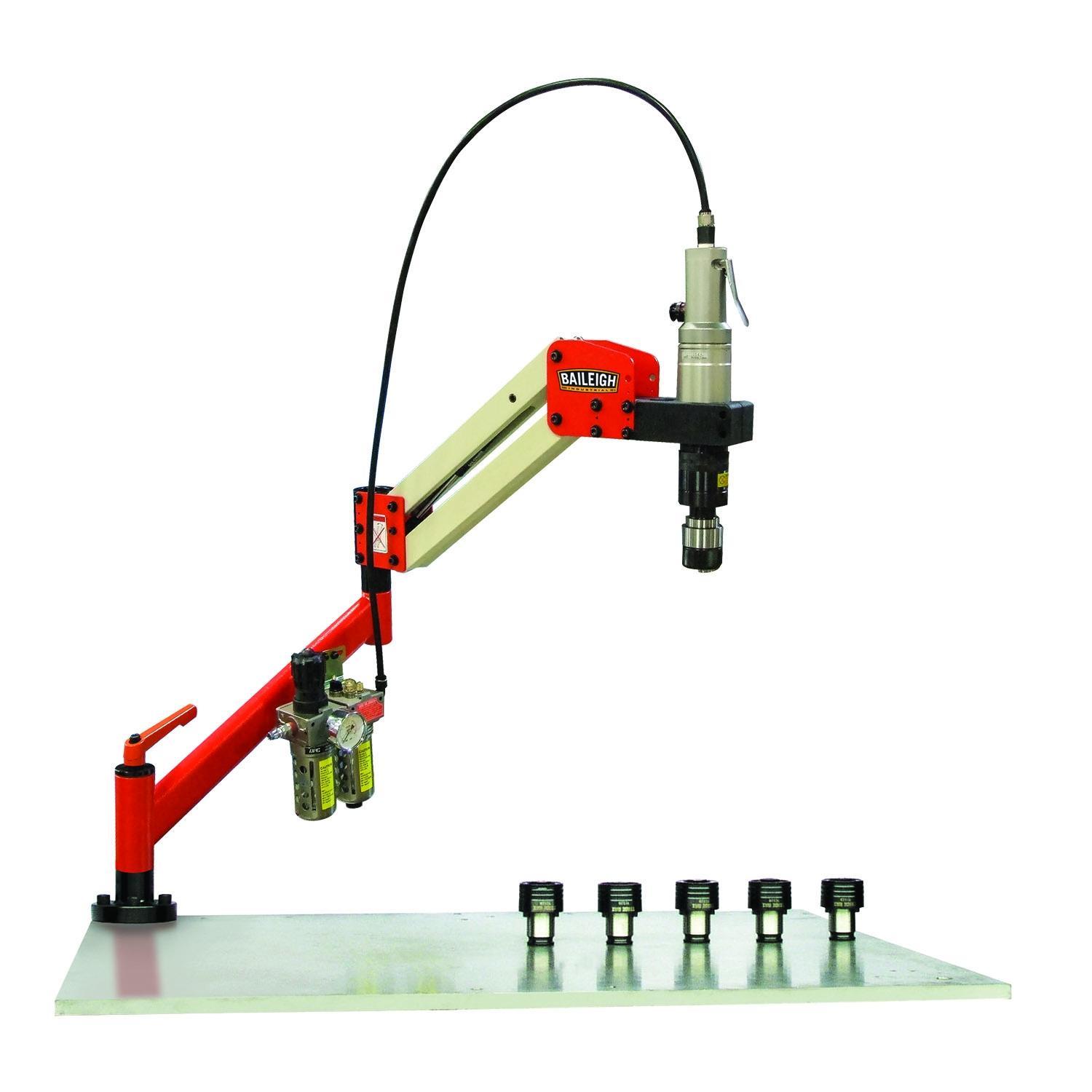

ATM-27-1000 Pneumatic Tapping Arm

 ATM-27-1000 Pneumatic Tapping Arm  SKU: 1000326

The ATM-27-1000 pneumatic tapping arm from Baileigh industrial is a heavy duty articulating tool support arm designed to provide fingertip control for the most demanding applications.  The sturdy cast iron swing arm is connected to the base by means of a hardened and ground shaft that incorporates a leveling system.  The twin parallel arms are made of heavy gauge aluminum tubing that is effective at neutralizing vibration and torque reaction.

The included pneumatic motor spins at 220 rpm and includes 6 different tap holders.  Another nice feature of the ATM-27-1000 heavy duty industrial articulating arm is that is has an ergonomic design, this is to protect workers from injuries that tend to develop over time during repetitious work. Order the ATM-27-1000 pneumatic arm from Baileigh Industrial.

  • Air tapping spindle
  • Work range 3.93" to 39.3"
  • Slanted arm
  • Table mount system
  • 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8" tap holders included

Contact a representative today to find out more about the ATM-27-1000 heavy tool support arm.

Specifications
Item Number ATM-27-1000
Tapping Range .11" to 1"
Work Range (Maximum) 39.3"
Work Range (Minimum) 3.93"
Spindle Speeds 220 rpm
Spindle Operation Pneumatic
Included Tap Holders 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8"
Included Accesories Included Accesories
Shipping Weight 55lbs
Shipping Dimensions (Inches) 69x44x32

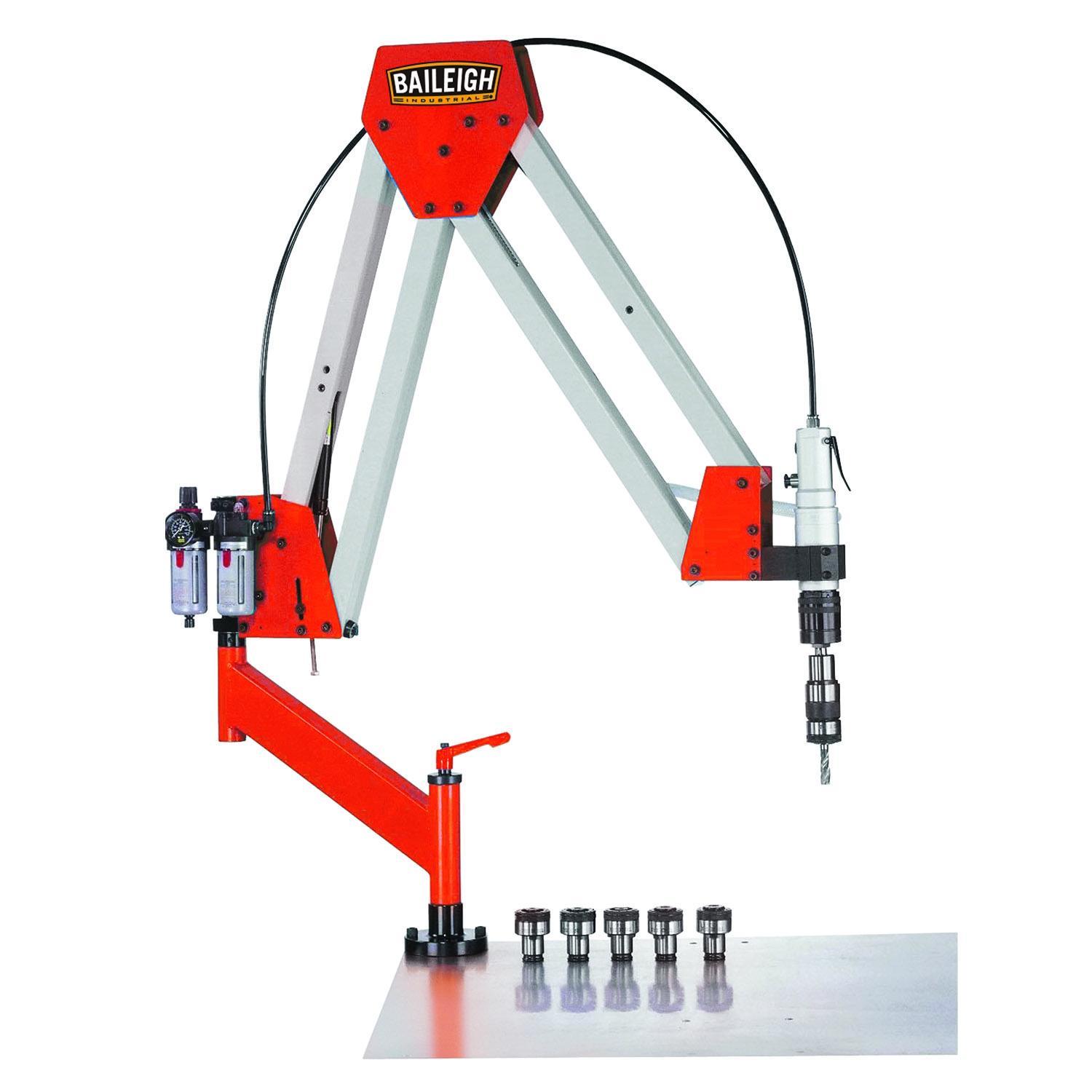

ATM-27-1900 Pneumatic Tapping Arm

ATM-27-1900 Pneumatic Tapping Arm

Tapping arms are the easiest way to help an employee do repetitious work.  The ATM-27-1900 tapping arm's advantage is that is has an ergonomic design; this is to protect workers from injuries that tend to develop over time during repetitious work. What makes this pneumatic tapping tool different is that it has a double articulated arm to extend its reach to 75”. The sturdy cast iron swing arm is connected to the base by means of a hardened and ground shaft that incorporates a leveling system.  The twin parallel arms are made of heavy gage aluminum tubing that is effective at neutralizing vibration and torque reaction.

The included pneumatic motor spins at 220 rpm and includes 6 different tap holders.  Use with the optional work cart to make this a mobile unit so that it can be used anywhere in the shop.

  • Air tapping spindle
  • Work range 7.8" to 74.8"
  • Dual stretch arm
  • Slanted arm for increased reach
  • Table mount system
  • Adjustable spindle mount for variable degree tapping
  • 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8" tap holders included

Contact a representative today to find out more about the ATM-27-1900 from Baileigh industrial.

Specifications
Item Number ATM-27-1900
Tapping Range .11" to 1"
Work Range (Maximum) 74.8"
Work Range (Minimum) 7.8"
Spindle Speeds 220 rpm
Spindle Operation Pneumatic
Included Tap Holders 1/4", 3/8", 1/2", 5/8", 3/4" and 7/8"
Included Accesories Included Accesories
Shipping Weight 79lbs
Shipping Dimensions (Inches) 69x44x32

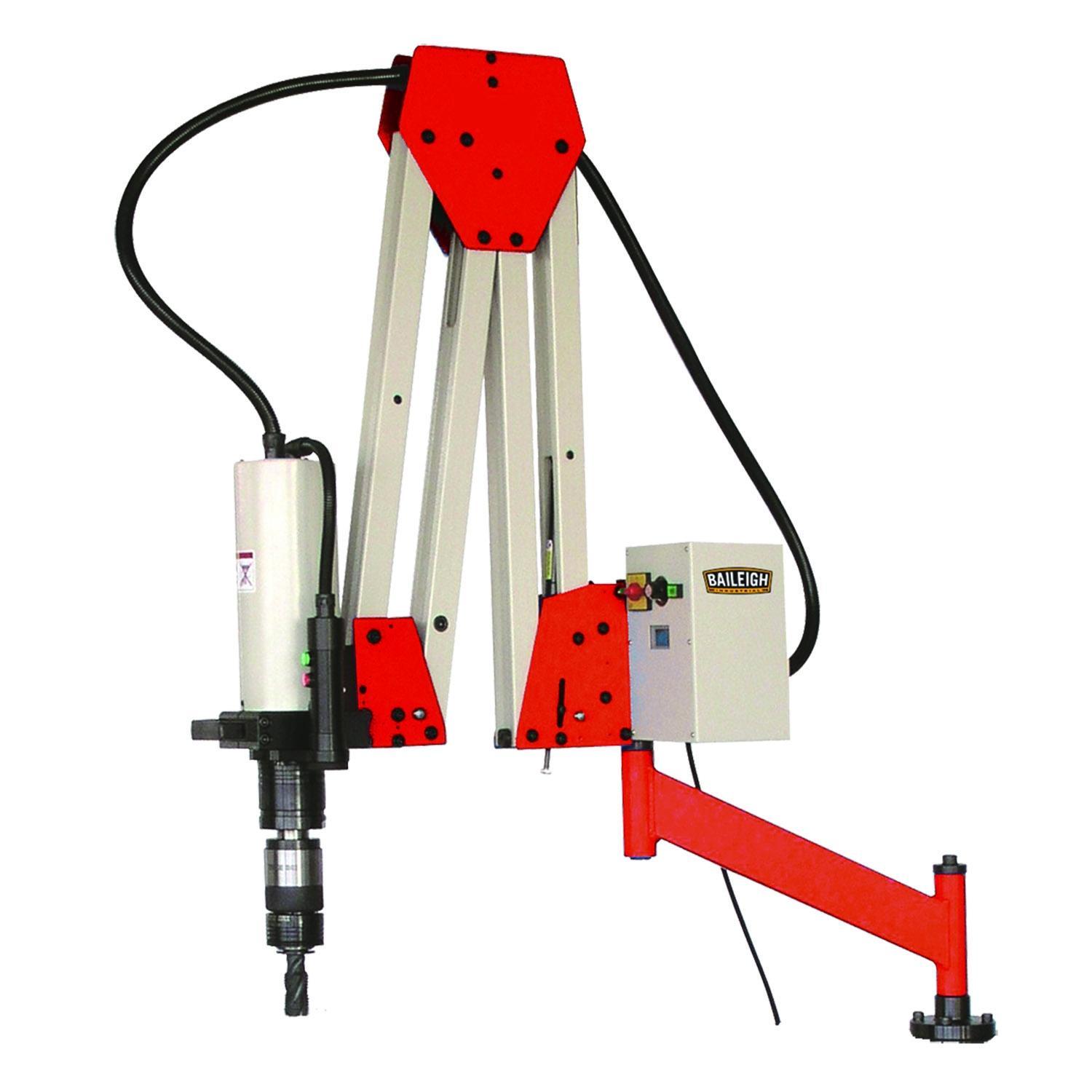

Electronically Controlled Tapping Arm ETM-32-1500

Electronically Controlled Tapping Arm ETM-32-1500

The ETM-32-1500 is an electronically controlled tapping arm that has a maximum tapping capacity of 1-1/4”.   This is a self-contained unit that has a variable speed spindle making it perfect for most every job.  The ETM-32-1500 has a double articulated arm to extend its reach to 59”.   The sturdy cast iron swing arm is connected to the base by means of a hardened and ground shaft that incorporates a leveling system.  The twin parallel arms are made of heavy gauge aluminum tubing that effective sat neutralizing vibration and torque reaction.

Tapping arms are very popular for jobs that require employees to do the same process over and over accurately.  It also has an ergonomic design, to protect workers from injuries that tend to develop over time during repetitious work.  Also included are 6 sets of tap holders in various sizes.  To make the ETM-32-1500 even more versatile ask about the optional work cart.

  • Electric tapping spindle
  • 0 to 300 rpm
  • Work range 7.8" to 59"
  • Slanted arm for increased reach
  • Table mount system
  • Adjustable spindle mount forvariable degree tapping
  • 1/4", 3/8", 1/2", 5/8", 1", and 1-1/8" tap holders included
  • Optional work cart available
  • 220V single phase

Contact a representative today to find out more about the ETM-32-1500 from Baileigh industrial.

Speficiations
Item Number ETM-32-1500
Tapping Range .11" to 1.25"
Work Range (Maximum) 59"
Work Range (Minimum) 7.8"
Spindle Speeds 0 to 300 rpm
Spindle Operation Electric
Included Tap Holders 1/4", 3/8", 1/2", 5/8", 1" and 1-1/8"
Voltage 220V single phase
Shipping Weight 150lbs
Shipping Dimensions (Inches) 69x44x32

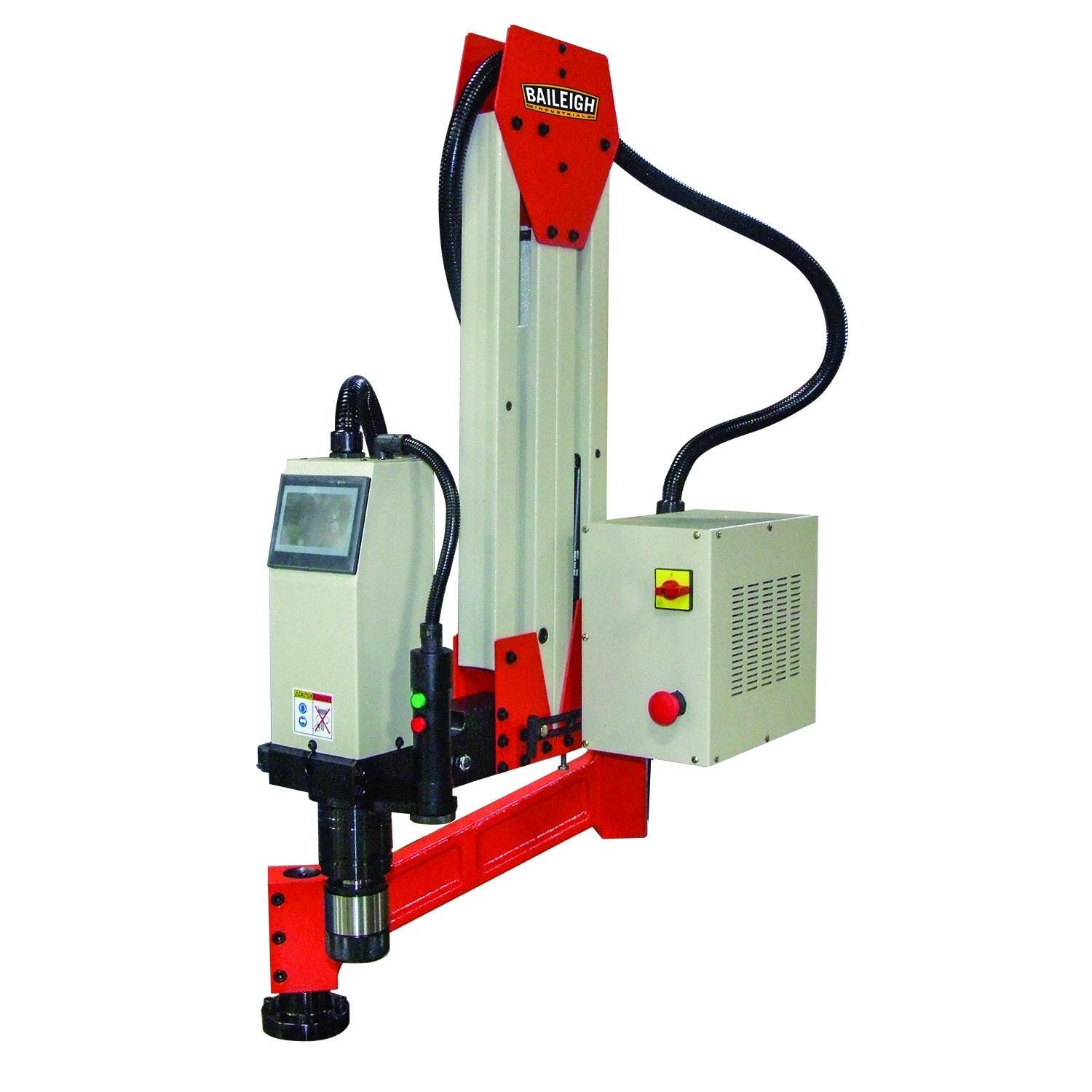

Electronically Controlled Tapping Arm EATM-32-1900

Electronically Controlled Tapping Arm EATM-32-1900

The EATM-32-1900 electric tapping arm was designed to help employees finish their work faster and more accurately by adding and automatic depth control.  This control ensures that the job is done right the first time, every time.  It has a double articulating arm that features a set of twin parallel arms, made of heavy gage aluminum tubing that are effective at neutralizing vibration and torque reaction.   They also allow the arm to reach to 74” from the base.

The spindle of the EATM-32-1900 electric tapping arm machine has a variable speed range of 0 to 300 rpm from its 1hp motor.  This powerful spindle will accommodate a 1-1/4” tap.  .  Also included are 6 sets of tap holders in various sizes.  Ask about the optional heavy duty work cart that allows the EATM-32-1900 electric tapping arm to be mobile, especially handy in those smaller shops.

  • Electric tapping spindle
  • Auto depth control
  • 0 to 300 rpm
  • Work range 7.8" to 74"
  • Dual stretch arms
  • Slanted arm forincreased reach
  • Table mount system
  • Adjustable spindle mount for ariable degree tapping
  • 1/4", 3/8", 1/2", 3/4" tap holders included
  • Optional work cart available
  • 220V single phase

Contact a representative today to find out more about the ETM-32-1500 from Baileigh industrial.

Specifications
Item Number EATM-32-1900
Tapping Range .11" to 1.25"
Work Range (Maximum) 83"
Work Range (Minimum) 7.8"
Spindle Speeds 0 to 300 rpm
Spindle Operation Electric
Automatic Depth Control Yes
Included Tap Holders 1/4", 3/8", 1/2", 3/4", TRE3/2 and TRE2/1 adapter
Voltage 220V single phase
Shipping Weight 240lbs
Shipping Dimensions (Inches) 60x44x20



BA9-1000326
SINGLE ARM AIR POWERED TAPPING MACHINE, 1/8-1 TAPPING CAPACITY:39 MAX RANGE *DOES NOT FIT CART* / MADE IN TAIWAN / WGT = 55 LBS / SHIPS UPS OR FEDEX (SKU 1000326)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1000326
BAIATM-27-1000
lease to own for as little as:$99 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$5,295.00

28
BA9-1000327
DOUBLE ARM ARTICULATED AIR POWERED TAPPING MACHINE, 1/8 TO 1 TAPPING CAPACITY, 74 MAX WORK RANGE / MADE IN TAIWAN / WGT = 80 LBS / SHIPS UPS OR FEDEX (SKU 1000327)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1000327
BAIATM-27-1900
lease to own for as little as:$116 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$6,219.00

28
BA9-1004165
ON SALE - ETM-32-1500-220V 1PH TAPPING MACHINE
OVERSTOCK SALE LIMITED QUANTITY AVAILABLE, WHILE SUPPLIES LAST
PRICE REFLECTS A $1513.35 SAVINGS ON THIS ITEM
Mfg. item #: BA9-1004165
BAIETM-32-1500
lease to own for as little as:$172 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$10,089.00

18
BA9-1004133
220V 1PHASE AUTO DEPTH CONTROL TAPPING MACHINE, 1/8-1-1/4 TAP CAPACITY, 74 WORK RANGE / MADE IN TAIWAN / WGT = 240 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1004133)
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR BEST BROTHER-IN-LAW PRICE & FREE SHIPPING
Mfg. item #: BA9-1004133
BAIEATM-32-1900
lease to own for as little as:$245 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$13,139.00

28
