Huthbender Model 1600 Knee Control Bender

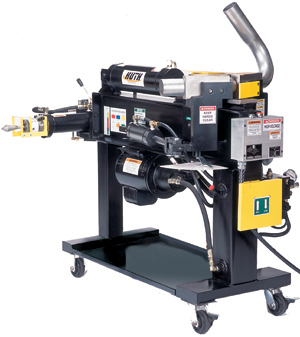

Image of : Pipe Bender - Knee Control Model 1600

HuthBender Pipe Bender - Knee Control Model 1600

Product Description & Features

  • The Model 1600 Knee Control Bender is Huth's entry level bender. The rugged, versatile 1600 is the same bender as in the HB-10 package. But it comes without the tooling, making it ideal for those who want to put together their own tooling packages or who already have tooling but want to replace or add a bender

  • The 1600 delivers 58,000 lbs. of bending power - more than enough for 3" tubing. Bending is activated by a slim-design knee control pedal, allowing the operator to get close to the work for more precision. A foot pedal can be substituted for the knee pedal, if desired, at no charge. For a nominal charge, Huth will install a foot pedal and a knee pedal.

  • A manual depth-of-bend indicator clearly shows the operator how far into a bend he is at all times

  • As with all Huth Benders, the 1600 features a built-in swager/expander for complete end-finishing - 1" to 3" tubing on the swager end and 1" to 5 1/2" tubing on the expander end. Ball joints, flanges, flares and slip joints are easily created. Huth's Accu-Sizer(tm) automatic bull's-eye expanding systems lets you dial in precise expansions every time

  • The 1600 accepts all of Huth's standard tooling and accessories such as the Ready-Rak, Rod Bracket Bender and Oil Filter Crusher

  • Easy-To-Use Knee Pad Control

  • Manual Depth-of-Bend Indicator

  • Includes Huth Instructional Video

  • Available with Foot Pedal Activation

  • Complete Manual Control

  • Built-in swager/expander for complete end-finishing

  • 58,000 lbs of bending power - More than enough for 3" tubing

  • HB Cylinders

  • Flat Tool Tray

  • Bending Die Retainer

  • Heavy-Duty Swager/Expander

  • Rugged I-Beam Construction

  • Exclusive Safety-Guard Pac

  • Front Swivel Casters with Bra

  • The 1600 is available with 220 volt, single or 3 phase, 60 or 50 Hz., high speed, and high volt options

Call 1-800-458-3687 For Your Specific Tooling Application


HUT1600
$6,160.00 $5,744.00
MANUAL BENDER :::: FREE FREIGHT On This Order Anywhere in The Continental US ** NOTE: Any Residential/Tailgate or Re-Delivery Charges NOT INCLUDED (PC031009)


HUT028
$2,600.00 $2,340.00
TOOL PACKAGE - HB-10 :::: FREE FREIGHT **ONLY** When Ordered with Equipment or Please Call Southern Tool @ 1-800-458-3687 for the BEST Freight Rate (PC110608)

HUT010
$2,390.00 $2,151.00
TOOL PACKAGE :::: FREE FREIGHT **ONLY** When Ordered with Equipment or Please Call Southern Tool @ 1-800-458-3687 for the BEST Freight Rate (PC110608)

HUT011
$4,255.00 $3,829.50
TOOL PACKAGE :::: FREE FREIGHT **ONLY** When Ordered with Equipment or Please Call Southern Tool @ 1-800-458-3687 for the BEST Freight Rate (PC110608)

HUT013
$5,855.00 $5,269.50
TOOL PACKAGE :::: FREE FREIGHT **ONLY** When Ordered with Equipment or Please Call Southern Tool @ 1-800-458-3687 for the BEST Freight Rate (PC110608)

HUT016
$4,255.00 $3,829.50
TOOL PACKAGE - METRIC :::: FREE FREIGHT **ONLY** When Ordered with Equipment or Please Call Southern Tool @ 1-800-458-3687 for the BEST Freight Rate (PC110608)
