Huthbender Model 1674 Expander

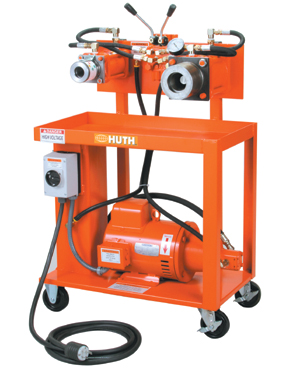

Image of : Portable Expander (1674)

Model 1674 Portable Expander

Product Description & Features

  • Mounted on its own easy wheeling cart, Huth's Model 1674 portable expander equips you to use all existing Huth expanding tooling. Now with the powerful 5" cylinder you can expand tubing from 3" up to, and larger than 6" diameter, 3" deep. The large tray allows you to keep your tooling within easy reach. Just wheel the 1674 to where the work is

  • 5 HP Motor, single-phase (30 amp), or 3-phase (20-amp)

  • Runs on 220 volt, 60 Hz supply. 50 Hz and other voltages available

  • The 3-1/2" cylinder produces 25,000 lbs. of expanding power and the 5" cylinder produces 49,000 lbs. of expanding power

  • Expanding capacity from 1" to 6" and greater

  • Features Huth's Accu-Sizer(tm) automatic, preset expanding system for quick, precise expanding each and every t

  • Front swivel caster with brake

  • 15' power cord with male and female receptacles

  • Includes 41047 Accu - Sizer adjustable collar for the 3-1/2" cylinder, and the 527 adjustable collar with the 528 collar extension for the 5" cylinder

Call 1-800-458-3687 For Your Specific Tooling Application


HUT1674
$4,615.00 $4,303.50
DUAL HEADED EXPANDER :::: FREE FREIGHT On This Order Anywhere in The Continental US ** NOTE: Any Residential/Tailgate or Re-Delivery Charges NOT INCLUDED (PC031009)


HUT37074
$2,450.00 $2,205.00
TOOL PACKAGE - H1674 :::: FREE FREIGHT **ONLY** When Ordered with Equipment or Please Call Southern Tool @ 1-800-458-3687 for the BEST Freight Rate (PC110608)
