Vertical Panel Saws
PURCHASE A C4 OR H5 PANEL SAW AND RECEIVE A FREE DUST KIT = $ 209.00 RETAIL VALUE -
The H-Series offers full-sized vertical panel saw productivity in economical machines. H-Series saws cut within 1/32" on a wide variety of panel materials up to 1Â¾" thick, and are available in three standard crosscutting widths, 50", 64" and 73". H-Series saws are used in all kinds of panel processing applications. More Information
These two vertical panel saws utilize heavy-duty worm gear driven saw motors for production applications. The additional steel supports in the frame, worm driven motor, double guide tube bearings and machined aluminum material rollers result in heavier duty machines with a guaranteed cutting accuracy of 1/64" straight and square. The 6400 cuts panels up to 64" wide, while the 6800 can handle extra wide sheets up to 73".

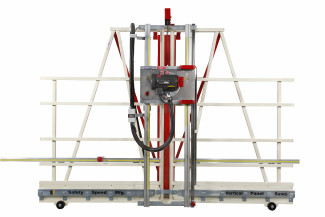

The 7000 vertical panel saw is a high capacity production machine. This heavy-duty saw offers incredible durability and accuracy at a very affordable price. Sporting a 3 Hp, 3~ continuous duty induction motor or an optional 2 Hp, 1~ motor this machine will rise to the occasion during the toughest of applications. The saw carriage rides on two aluminum anodized extruded beams with integrated linear v-guides allowing the machine to deliver an accuracy of .015". The rugged steel frame will handle years of abuse in the most challenging working environments. MORE INFORMATION
The 7400 saws are designed for continuous production and tight tolerance cutting. With a 2 horsepower, 220V heavy-duty induction motor (upgradeable to 3 horsepower, 3 phase), these saws handle the toughest applications. The saw carriage travels vertically on two heavy extruded beams utilizing Dual-Vee bearings to deliver cutting accuracy to 0.005" straight and square. The 7400XL offers an extra large 13' frame length for cutting panels in excess of 10' in length. Specify these machines for heavy production requirements, large panels and close tolerance panel processing More Information
The ES52 Panel Saw is designed for high production and tight tolerance cutting. The machine is equipped with a 3 Hp,1~ 220V motor. The European Style traveling carriage traverses the full length of the machine frame to execute cuts on full size sheets up to 61" tall and 130" long with cutting accuracy of 0.010" straight and square. The traveling beam allows the operator to leave the panel stationary while the cutting blade moves both horizontally and vertically. More Information
The SR5 is able to saw and rout on one vertical steel welded frame, which is ideal for shops with limited space where both panel sizing and panel routing are performed. This model can be changed from saw to router in less than one minute and has accuracy of 1/64" straight and square. It's equipped with a MID-WAY FENCE™ system as standard equipment, which makes the processing of small panels more efficient. Our patented self-adjusting router carriage provides for a consistent depth of cut when routing.
The SR5U is an upgrade from the SR5, with a heavier worm gear driven saw and a 3Â¼ horsepower router that can be interchanged in less than one minute. The upgrade includes machined aluminum material rollers, an enclosed counterweight, and a MID-WAY FENCEâ„¢ system. This machine is ideal for cabinet shops, composite panel fabrication and other applications where both panel sizing and panel routing are required functions. More Information
The TR2 horizontal table router is a productive machine for jobs that require 36" or less cross dado capacity. This machine has the ability to do standard dados, cut blind dados and rabbet dados. Easy one-person operation makes this machine work well for wood shops, schools, display manufactures and cabinet shops. More Information
