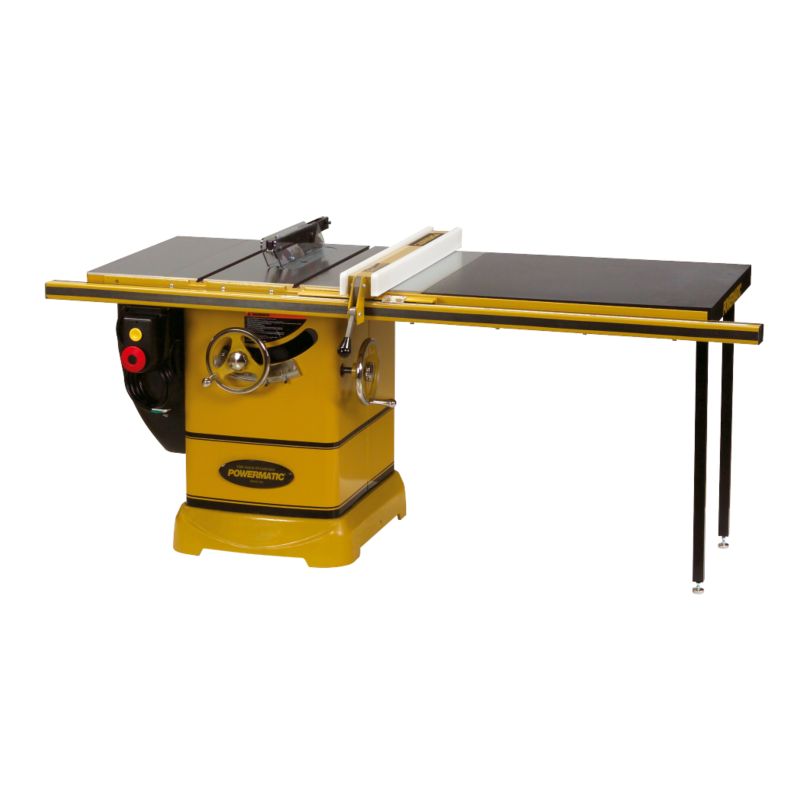

PowerMatic Model PM1000 Cabinet Saw



Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we're proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.

Features:

  • Cabinet saw that only requires 115V power
  • A blade surround and collection hose provide an unobstructed path, maximizing dust collection
  • Conveniently located hands free power switch
  • Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
  • The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
  • Exclusive AccuFence provides rigidity and precision
  • The poly-V belt drive system reduces vibration and maximizes efficiency
  • Ergonomically designed 7 inch handwheels provide momentum making blade height and bevel adjustments easy
  • Arbor lock allows for one handed blade changes with minimal tools
  • Cast iron work surface features a beveled edge
  • Bevel scale is conveniently located with large, easy to read numbers
  • Hinged motor cover provides quick access to the interior of the cabinet
Specifications
Stock Number 1791000K
Model Number PM1000-30
Table Height from Floor (In.) (EN) 34-1/4
Style (Type) (EN) Cabinet
Recommended Circuit Size (Amps.) (EN) 30A (for 115V), 20A (for 230V)
Prewired Voltage (V.) (EN) 115
Motor Voltage (V.) (EN) 115/230
Motor Power (HP) (EN) 1-3/4
Motor Phase (EN) 1
Dust Port Outside Diameter (In.) (EN) 4
Dust Collection Minimum CFM Required (CFM) (EN) 350
Weight (Lbs.) (EN) 346.8
Total Work Surface (In.) (EN) 57 x 27
Table Type (EN) Cast Iron
Table Size (In.) (EN) 20 x 27
Motor Current (Amps) (EN) 15/7.5
Maximum Width of Dado (In.) (EN) 13/16
Maximum Rip Right of Blade (In.) (EN) 30
Maximum Rip Left of Blade (In.) (EN) 12
Maximum Diameter of Dado (In.) (EN) 8
Maximum Depth of Cut at 45 Degrees (In.) (EN) 2-1/8
Maximum Depth of Cut (In.) (EN) 3-1/8
Cast Iron Work Surface (In.) (EN) 40 x 27
Blade Diameter (In.) (EN) 10
Arbor Speed (RPM) (EN) 4200
Arbor Diameter (In.) (EN) 5/8
Warranty 5 Year



Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we're proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.

Features:

  • Cabinet saw that only requires 115V power
  • A blade surround and collection hose provide an unobstructed path, maximizing dust collection
  • Conveniently located hands free power switch
  • Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
  • The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
  • Exclusive AccuFence provides rigidity and precision
  • The poly-V belt drive system reduces vibration and maximizes efficiency
  • Ergonomically designed 7 inch handwheels provide momentum making blade height and bevel adjustments easy
  • Arbor lock allows for one handed blade changes with minimal tools
  • Cast iron work surface features a beveled edge
  • Bevel scale is conveniently located with large, easy to read numbers
  • Hinged motor cover provides quick access to the interior of the cabinet
Specifications
Stock Number 1791001K
Model PM1000-52
Table Height from Floor (In.) (EN) 34-1/4
Style (Type) (EN) Cabinet
Recommended Circuit Size (Amps.) (EN) 30A (for 115V), 20A (for 230V)
Prewired Voltage (V.) (EN) 115
Motor Voltage (V.) (EN) 115/230
Motor Power (HP) (EN) 1-3/4
Motor Phase (EN) 1
Dust Port Outside Diameter (In.) (EN) 4
Dust Collection Minimum CFM Required (CFM) (EN) 350
Weight (Lbs.) (EN) 393.8
Total Work Surface (In.) (EN) 75-3/8 x 27
Table Type (EN) Cast Iron
Table Size (In.) (EN) 20 x 27
Motor Current (Amps) (EN) 15/7.5
Maximum Width of Dado (In.) (EN) 13/16
Maximum Rip Right of Blade (In.) (EN) 52
Maximum Rip Left of Blade (In.) (EN) 12
Maximum Diameter of Dado (In.) (EN) 8
Maximum Depth of Cut at 45 Degrees (In.) (EN) 2-1/8
Maximum Depth of Cut (In.) (EN) 3-1/8
Cast Iron Work Surface (In.) (EN) 40 x 27
Blade Diameter (In.) (EN) 10
Arbor Speed (RPM) (EN) 4200
Arbor Diameter (In.) (EN) 5/8
Warranty 5 Year



  s-h altWARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.For more informaton click HERE



Accessories
708119 Mobile Base
708158 MOBILE BASE EXTENSION KIT for 50" Table Saw
1791793 PM1000-TKLPRK: .079"LOW PROFILE RK
708158 MOBILE BASE EXTENSION KIT
708295 JTG-10Q TENONG JIG W/QCK RLSE

30" PM1000 use 708119 Mobile Base
52" PM1000 requires 708119 & 708158


More Informationshow more
WMH1791000K mfg. item #: 1791000K
$1999.99   msrp $2400.00
NEW FOR 2014 - PM1000 TABLESAW, 1-3/4HP 1PH 115V, 30 ACCU-FENCE SYSTEM W/RIVING KNIFE
lease to own for as little as:$40 per month! 2
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.29


More Informationshow more
WMH1791001K mfg. item #: 1791001K
$2099.99   msrp $2520.00
NEW FOR 2014 - PM1000 TABLESAW, 1-3/4HP 1PH 115V, 52 ACCU-FENCE SYSTEM W/RIVING KNIFE
lease to own for as little as:$42 per month! 2
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.29


More Informationshow more
WMH708119 mfg. item #: 708119
$161.48
UNIVERSAL MOBILE BASE, HEAVY DUTY
  2
$9.99 Freight including residential and tailgate deliveries on this item. Free freight for Jet, Powermatic, Wilton and Performax orders over $199.001019


More Informationshow more
WMH708158 mfg. item #: 708158
$99.95   msrp $129.95
MOBILE BASE EXTENSION KIT FOR 708119
  2
$9.99 Freight including residential and tailgate deliveries on this item. Free freight for Jet, Powermatic, Wilton and Performax orders over $199.001019


More Informationshow more
WMH1791793 mfg. item #: 1791793
$18.34
NEW FOR 2014 - PM1000-TKLPRK, .79 THIN KERF, LOW PROFILE RIVING KNIFE
  2
$9.99 Freight including residential and tailgate deliveries on this item. Free freight for Jet, Powermatic, Wilton and Performax orders over $199.001019


More Informationshow more
WMH708295 mfg. item #: 708295
$167.19
JTG-10Q, TENONING JIG WITH QUICK RELEASE
  2
$9.99 Freight including residential and tailgate deliveries on this item. Free freight for Jet, Powermatic, Wilton and Performax orders over $199.001019
