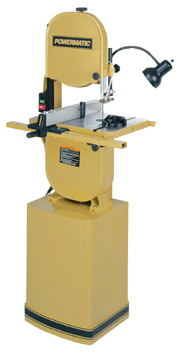

| PWBS-14CS Bandsaw |
| This 14" Bandsaw has an
extra large, two-piece cast iron table. It
consists of a 15" x 15" tilting section and a
fixed 15" x 5" extension for a total working
surface area of 15" x 20". A balanced, nine
spoke cast iron wheel makes for smooth blade
travel, and a CARTER™ quick tension release
lever makes blade changing easy. A
micro-adjustable dual bearing blade guide system
is featured above and below the table, as well
as a work lamp and chip blower. A Poly-V belt
maximizes power transmission while minimizing
noise and vibration. It has full 6" under-guide
capacity with 13-1/2" frame-to-blade clearance.
The aluminum rip fence comes with a resaw
attachment. |
 |
|
Features
-
CARTER™ quick tension release lever with
full tension, and blade release levels
-
With a powerful 1-1/2HP TEFC motor and a
wide Poly-V belt, full power is transferred
from the motor to the drive wheel
-
Features durable micro-adjustable dual
bearing blade guide system above and below
the table
-
Extra-large, two-piece cast iron table
consists of a 15" x 20-7/8" tilting (45
degrees right, 10 degrees left) section and
a fixed 15" x 5" extension for a total
working surface area of 15" x 20"
-
Exclusive design, quick release
precision T-square style rip fence with 4"
resaw attachment
-
Precision balanced, nine-spoke cast iron
wheels run smoothly
-
Easy-to-read tensioning gauge setting
indicated in blade width increments
-
Full 6" under-guide capacity with
13-1/2" width capacity
-
60 watt lamp built into the body,
providing direct light on blade and work
piece while cutting (bulb not included)
-
Chip blower ensures a clean, visible cut
line
|
|
Optional
Accessories |
| 6" Riser Block |
1791217 |
| Mobile
Base |
2042377 |
|
|
|
Specifications |
| Model Number |
PWBS-14CS |
| Stock
Number |
1791216K |
| Cutting Capacity (H/in.) |
6 |
|
Cutting Capacity (W/in.) |
13-1/2 |
| Min. Saw Blade (W/in.) |
1/8 |
| Max.
Saw Blade (W/in.) |
3/4 |
| Saw Blade (L/in.) |
93-1/2 |
| Table
Dimensions (L x W/in.) |
15 x 15 |
| Table Dimensions with
Extension (L x W/in.) |
15 x
20-1/2 |
| Blade
Speed (SFPM) |
3000 |
| Table Tilt (deg.) |
45 R, 10L |
| Stand
Type |
Closed |
| Table Height From Floor
(in.) |
44 |
| Dust
Chute Diameter (OD/in.) |
4 |
| Overall Dimensions (L x
W x H/in.) |
20 x 34 x
68 |
|
Motor (TEFC) |
1-1/2HP, 1Ph, 115/230V
(Prewired 115V) |
| Net Weight (lbs.) |
203 |
|
Shipping Weight (lbs.) |
221 |
|
|
Standard Equipment
-
CARTER™ quick tension release
-
Adjustable miter gauge
-
T-style rip fence with resaw assembly
-
1/4" bandsaw blade
-
Gooseneck work light and chip blower
|
|
|
|
Choose The Right Blade For Your Jet Bandsaw |
|
STOCK NUMBER |
BANDSAW SIZE (IN.) |
BLADE LENGTH (IN.) |
BLADE WIDTH (IN.) |
PITCH (TPI) |
TOOTH STYLE |
BLADE THICKNESS |
|
Carbon Steel -
Made with carbon steel band stock, ground and set
for sawing consistency |
|
709370 |
14 |
93-1/2 |
1/8 |
14 |
Hook |
0.02 |
|
709371 |
14 |
93-1/2 |
3/16 |
6 |
Skip |
0.02 |
|
709372 |
14 |
93-1/2 |
1/4 |
6 |
Skip |
0.02 |
|
709373 |
14 |
93-1/2 |
3/8 |
4 |
Skip |
0.02 |
|
709374 |
14 |
93-1/2 |
1/2 |
4 |
Hook |
0.02 |
|
709375 |
14 |
93-1/2 |
3/4 |
4 |
Hook |
0.02 |
|
709376* |
14 |
105 |
1/8 |
14 |
Hook |
0.02 |
|
709377* |
14 |
105 |
3/16 |
6 |
Skip |
0.02 |
|
709680* |
14 |
105 |
1/2 |
4 |
Hook |
0.02 |
|
709681* |
14 |
105 |
3/4 |
4 |
Hook |
0.02 |
|
Band Plus -
Hardened tooth points and tempered flex-back, ground
and milled teeth and band back, larger gullet capacity for a longer
life |
|
709351 |
14 |
93-1/2 |
1/8 |
14 |
Raker |
0.025 |
|
709352 |
14 |
93-1/2 |
3/16 |
4 |
Skip |
0.025 |
|
709354 |
14 |
93-1/3 |
1/4 |
6 |
Hook |
0.025 |
|
709355 |
14 |
93-1/2 |
1/4 |
14 |
Raker |
0.025 |
|
709356 |
14 |
93-1/4 |
3/8 |
4 |
Hook |
0.025 |
|
709357 |
14 |
93-1/2 |
1/2 |
3 |
Hook |
0.025 |
|
709358 |
14 |
93-1/5 |
1/2 |
6 |
Hook |
0.025 |
|
709359 |
14 |
93-1/6 |
3/4 |
3 |
Hook |
0.032 |
|
709361* |
14 |
105 |
1/8 |
14 |
Raker |
0.025 |
|
709362* |
14 |
105 |
3/16 |
4 |
Skip |
0.025 |
|
709364* |
14 |
105 |
1/4 |
6 |
Hook |
0.025 |
|
709365* |
14 |
105 |
1/4 |
14 |
Raker |
0.025 |
|
709366* |
14 |
105 |
1/4 |
4 |
Hook |
0.025 |
|
709367* |
14 |
105 |
1/2 |
3 |
Hook |
0.025 |
|
709368* |
14 |
105 |
1/2 |
6 |
Hook |
0.025 |
|
709369* |
14 |
105 |
3/4 |
3 |
Hook |
0.032 |
|
* Requires 6" Riser
Block Assembly, Stock Number 1791217—Includes
6" riser block, blade guard assembly, guide post, 105" bandsaw
blade, mounting hardware and instructions |
|
