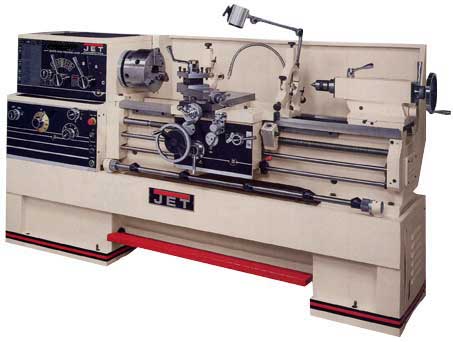

Jet ZX Series Large Spindle Bore Lathe (22" Swing)

ZX Series Large Bore Spindle Lathes

• Uniquely designed exclusively by JET

• ISO 9001 certified manufacturer

• 3-1/8" bore spindle is supported by two tapered and one ball bearing

• Chrome molybdenum headstock gears are hardened, ground, and shaved

• Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required

• Carriage features one-shot lubrication and Turcite-B on bead sliding surfaces

• T-slotted compound slide featuring a four-way tool post

• One-piece cast iron base absorbs vibration allowing heavier cuts

• High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground

• Removable gap allows up to 23-5/8" diameter work on 16", 27-1/2" on 18"

• Five position automatic carriage stoop increases productivity

• Attractive chrome control levers, dials, and knobs complete this impressive package

• Tolerance test certificate included

Standard Equipment

• 10" 3-jaw chuck with top reversing jaws

• 12" 4-jaw chuck

• Four-way tool post

• Follow rest

• Large capacity stead rest

• Fully integrated coolant system

• Full length splash guard and coolant return

• Large easy to use foot brake

• Articulating halogen work lamp

• Centrally located controls with jog button

• Threading dial

• Mounting pads and levelers

• Spindle sleeve (MT-7 to MT-5

• Dead center

• Live center

• Tool box and adjusting tools
