JET 2 HP Geared Head Bench Lathe

jet 1340 2 hp geared head bench lathe lathejet 2 year warranty logo

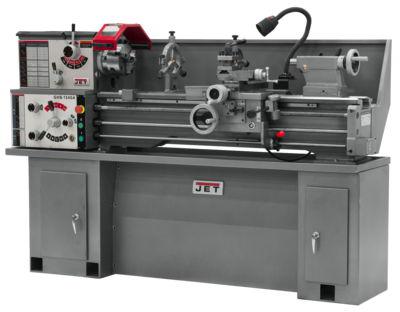

Shown with Optional Stand

This JET GHB-1340A Lathe comes equipped with a 2 HP, 1 Ph motor, allowing it to turn metal more power and accuracy. As one of the most popular of JET lathes, the GHB-1340A has a V-way bed design that is induction hardened and ground. The gap bed section provides for larger diameter work and the D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings

 The Jet GHB-1340A, 13 inch Swing 40 inch Centers, 2HP, 1Ph, 230V only
has a 2 Year warranty

  • One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supperted by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Gear box gives wide inch threading and feed capabilities with no gear changes
  • V-way bed is induction hardened and ground
  • Gap bed section provided for large diameter work
  • Independent leadscrew and feed rod
  • Spindle actuation control is apronmounted
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slideways
  • Tailstock may be offset for turning tapers and includes an inch/metric graduated quill
  • Oil pan included
  • Tolerance test certificate included
  • 6 inch 3-jaw direct mount scroll chuck with top reversing jaws
  • 8 inch 4-jaw independent chuck
  • 12 inch faceplate
  • Four-way tool post
  • Steady and follow rest
  • Metric change gear
  • Centers with headstock center sleeve
  • Threading dial
  • Tool box with tools
  • Splash guard

Detailed Specifications
Size 13 x 40
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-25/32
Swing Through Gap (In.) 18-3/4
Length of Gap (In.)
Distance Between Centers (In.) 43
Spindle Bore (In.) 1-3/8
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Spindle Speeds
Range of Spindle Speeds (RPM) 70 - 2,000
Number of Longitudinal and Cross Feed Rates 40
Range of Longitudinal Feeds (IPR) .0018 - .0374
Range of Cross Feeds (IPR) .0006 - .0130
Number of Inch Threads 38
Range of Inch Threads (TPI) 3-1/2 - 80
Number of Metric Threads 23
Range of Metric Threads .45 - 10
Max Tool Size (In.) 5/8 x 5/8
Compound Slide Travel (In.) 2-11/16
Cross Slide Travel (In.) 6-5/16
Carriage Travel (In.) 35
Tailstock Spindle Travel (In.) 3-3/4
Taper in Tailstock Spindle MT-3
Follow Rest Capacity (In.) 2-3/8
Steady Rest Capacity (In.) 2-3/4
Width of Bed (In.) 7-3/8
Motor (HP) 2 HP, 230V, 1Ph
Prewired (V.) 230
Weight (Lbs.) 1,154
Drive Geared Head
Overall Dimensions (L x W x H) (In.) 79 x 28-1/2 x 30
Style (Type) Bench - Geared Head
Height 28.5000
Length 79.0000
Weight 1236.0000
Width 30.0000



JET 13 inch GEARED HEAD BENCH LATHE
321357A GHB-1340A, Gear Head Bench Lathe
JET 13 inch GEARED HEAD BENCH LATHE PACKAGES
321101AK GHB-1340A With CBS-1340A Stand
321119 GHB-1340A With Taper Attachment
321124 GHB-1340A With Collet Closer
321129 GHB-1340A With Collet Closer and Taper Attachment
JET 13 inch GEARED HEAD BENCH LATHES WITH ACU-RITE DRO
321103 GHB-1340A With ACU-RITE VUE DRO
321103AK GHB-1340A With ACU-RITE VUE DRO and CBS-1340A Stand
321102 GHB-1340A With ACU-RITE VUE DRO With Collet Closer
321226 GHB-1340A With ACU-RITE VUE DRO With Taper Attachment and Collet Closer
321122 GHB-1340A With ACU-RITE 200S DRO
321123 GHB-1340A With ACU-RITE 200S DRO and Taper Attachment
321125 GHB-1340A With ACU-RITE 200S DRO and Collet Closer
321127 GHB-1340A With ACU-RITE 200S DRO With Taper Attachment and Collet Closer
JET 13 inch GEARED HEAD BENCH LATHES WITH NEWALL DRO
323131 GHB-1340A With Newall DP500 DRO
323581 GHB-1340A With Newall DP500 DRO With Collet Closer
323115 GHB-1340A With Newall DP500 DRO With Taper Attachment
323104 GHB-1340A With Newall DP500 DRO With Taper Attachment and Collet Closer
321131 GHB-1340A With Newall DP700 DRO
321115 GHB-1340A With Newall DP700 DRO With Taper Attachment
321581 GHB-1340A With Newall DP700 DRO With Collet Closer
321104 GHB-1340A With Newall DP700 DRO With Taper Attachment and Collet Closer
GHB/BDB SERIES STANDS
321443AK CBS-1340 Stand for BDB-1340A/GHB-1340A
JET TAPER ATTACHMENTS
321442 TAK-13GH/BD, Taper Attachment for GHB / BDB Models
987000009 Voltage Change Labor Charge
JET COLLET CLOSERS
321514A CC-GHB1340A, 5-C Collet Closer for GHB-Series Lathes
JET TURNING TOOLING KITS
660200 22 Piece Turning Tool Kit For 13 and 14" Lathes
5C COLLET SETS
650014 CS-5C, 16-piece 5-C Collet Set
650015 Premium 18 Piece 5-C Collet Set With Rack (1/16th)
650016 Premium 35 Piece 5-C Collet Set With Rack (1/32nd)
650017 5-C Collet Rack - Holds 30 Collets
650018 5-C Collet Rack - Holds 72 Collets
TOOL POST SETS
321431 STP-13BD, Single Tool Post
650295 200 Series Quick Change Wedge Type Tool Post Set
650300 300 Series Quick Change Wedge Type Tool Post Set
650305 400 Series Quick Change Wedge Type Tool Post Set



22 Piece turning tool kit for 13 and 14 inch JET Lathes - 660200
  • Complete 22 piece set
  • Compatible with 13 and 14 inch W Series Lathes
  • Compatible with 13 and 14 inch Bench Series Lathes
  • Set consists of the following:
  • 3/8 x 6 inch double end boring bar
  • 1/2 x 9 inch double end boring bar
  • 5/8 x 10 inch double end boring bar
  • 4 Hex keys
  • Adjustable Turning tool holder
  • HSS Knurling tool with three pairs of knurls
  • MT3 half dead center
  • MT3 carbide tipped dead center
  • MT3 heavy duty live center
  • 2 pcs. 3/16 x 1-1/2 inch round tool bits
  • 2pcs 3/16 x 2 inch HSS square tool bits
  • 2pcs 1/4 x 2 inch HSS square tool bits
  • 2pcs 5/16 x 2-1/2 inch HSS square tool bit
  • 1 pc 3/8 x 2-1/2 inch HSS square tool bit
  • 1pc 3/32 x 1/2 x 3-1/2 inch HSS (P) cuttoff blade
