Performax 16-32 Plus

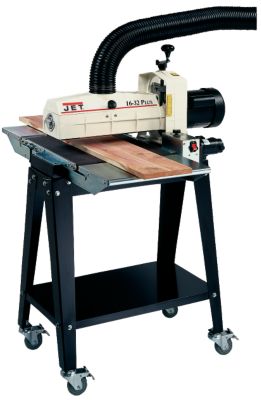

Shown with option infeed, outfeed tables & casters


Shown with optional infeed, outfeed tables & casters

The JET 16-32 Plus Drum Sander. Often imitated, never duplicated - this drum sander elevates the primary woodworking tasks of sanding from long and slow to short and fast, one may even venture to say fun. The unique design of the JET 16-32 Plus Drum Sander provides ample capacity to handle small and large jobs with ease. Add our exclusive SandSmart™ Technology that virtually eliminates workpiece or abrasive burn and you've got a great sander that will last for years to come. Put a JET 16-32 Plus Drum Sander in your shop - and you'll know why JET tools are Built Better to Build Better

629004K Brochure
629004K Whitepaper
629004K Manual

Standard Equipment

  • One abrasive strip, 80 grit
  • One 100 grit abrasive conveyor belt
  • TufTool
  • Trackers
  • Metal stand with shelf
  • One box of ready-to-wrap abrasives
  • 110 Volt Model
  • 629004K 16-32 Plus, 20 amp service required

The Jet 16-32 Plus 20 amp Service with 608003 Stand
has a 5 Year warranty

  • Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
  • Patented conveyor belt TRACKERS™ dramatically reduce the need for manual belt adjustments
  • Precision-machined and balanced extruded aluminum drum is self-cooling to protect the surface being sanded from heat-damage
  • Sealed and permanently lubricated drum ball bearings for longer life
  • Precision-flattened reinforced steel conveyor bed and no-give power feed belt provide a constant smooth sanding action for better results
  • Adjustable drum height and downward pressure feature virtually eliminates snipe
  • Top-position handwheel adjusts height at 1/16" per turn for precise sanding thickness control
  • Patented abrasive take-up fasteners make changing abrasives quick and easy
  • Infinitely variable-speed control produces the ultimate finish at a rate from 0 to 10 feet per minute
  • On/off switch with overload protection is front-mounted for operator's convenience
  • One feed and one drive motor for superior sanding control
  • Continuous-duty, 1-1/2HP motor is designed for heavier use for longer periods of time
Detailed Specifications
Brand Jet
Conveyor Motor 43 in.-lbs. torque, direct drive, dc
Conveyor Speed 0 - 10 SFPM
Drum Bearing Diameter 1 "
Drum Diameter 5 "
Drum Length 16 "
Drum Speed 1720 RPM
Dust Port Outside Diameter 4 "
Family Description 16-32 PLUS DRUM SANDER
Height 0 inch
Length 0 inch
Maximum Board Thickness 3 "
Maximum Board Width 32 (2 passes)
Minimum Board Length 2 ¼ "
Minimum Board Thickness 1/32 "
Model Number 16-32 PLUS
Motor Current 14 A
Motor Phase 1 Ph
Motor Power 1 ½ HP
Motor Voltage 115 V
Net Weight 164 pound
Overall Dimensions 18 x 23 x 32
Part Number 629004K
Prewired Voltage 115 V
Style Open Stand
Width 0 inch
  WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.





JET® 16-32 PLUS SANDER and Accessories
629004K 16-32 Plus Drum Sander, 1.5HP 1PH 115V, Open Stand
638004 Open Stand with Shelf for 10-20 and 16-32
98-1601 Infeed/Outfeed Tables, 16-32 Plus
98-0130 Casters, Set of 4
60-0316-P Powerfeed Belt, 16-32 Plus
60-6036 Ready-To-Wrap Abrasives, 36 Grit, 4-Wraps in Box (fits 16-32)
60-6060 Ready-To-Wrap Abrasives, 60 Grit, 4-Wraps in Box (fits 16-32)
60-6080 Ready-To-Wrap Abrasives, 80 Grit, 4-Wraps in Box (fits 16-32)
60-6100 Ready-To-Wrap Abrasives, 100 Grit, 4-Wraps in Box (fits 16-32)
60-6120 Ready-To-Wrap Abrasives, 120 Grit, 4-Wraps in Box (fits 16-32)
60-6150 Ready-To-Wrap Abrasives, 150 Grit, 4-Wraps in Box (fits 16-32)
60-6180 Ready-To-Wrap Abrasives, 180 Grit, 4-Wraps in Box (fits 16-32)
60-6220 Ready-To-Wrap Abrasives, 220 Grit, 4-Wraps in Box (fits 16-32)
1632 copy.gif
629004K
NLA - USE WMH723520K
Mfg. item #: 629004K
WMH629004K
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

1516
638004
OBSOLETE NO LONGER AVAILABILE
Mfg. item #: 638004
WMH638004
Call for Price

92
98-1601
OBSOLETE NO LONGER AVAILABILE
Mfg. item #: 98-1601
WMH98-1601
Call for Price

92
98-0130
** CASTER SET - BOX OF 4 ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 98-0130
WMH98-0130
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$94.68

2
60-0316-P
CONVEYOR BELT FOR 16-32 SANDER
Mfg. item #: 60-0316-P
WMH60-0316-P
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1020
$135.36

680
60-6036
** READY-TO-WRAP ABRASIVES, 36 GRIT, 4-WRAPS IN BOX (FITS 16-32) ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 60-6036
WMH60-6036
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$29.99

2
60-6060
** READY-TO-WRAP ABRASIVES, 60 GRIT, 4-WRAPS IN BOX (FITS 16-32) ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 60-6060
WMH60-6060
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$29.99

2   4
60-6080
** READY-TO-WRAP ABRASIVES, 80 GRIT, 4-WRAPS IN BOX (FITS 16-32) ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 60-6080
WMH60-6080
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$29.99

2
60-6100
** READY-TO-WRAP ABRASIVES, 100 GRIT, 4-WRAPS IN BOX (FITS 16-32) ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 60-6100
WMH60-6100
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$29.99

2   3
60-6120
** READY-TO-WRAP ABRASIVES, 120 GRIT, 4-WRAPS IN BOX (FITS 16-32) ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 60-6120
WMH60-6120
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$29.99

2
60-6150
** READY-TO-WRAP ABRASIVES, 150 GRIT, 4-WRAPS IN BOX (FITS 16-32) ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 60-6150
WMH60-6150
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$29.99

2
60-6180
** READY-TO-WRAP ABRASIVES, 180 GRIT, 4-WRAPS IN BOX (FITS 16-32) ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 60-6180
WMH60-6180
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$29.99

2
60-6220
** READY-TO-WRAP ABRASIVES, 220 GRIT, 4-WRAPS IN BOX (FITS 16-32) ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 60-6220
WMH60-6220
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1019
$29.99

2   1
