Jet J-7020M Mitering Bandsaw


s-h alt

At a Glance
Details
Specifications
More Information
Accessories

Variable speed drive system allows the operator to fine tune the blade speed fast and easily
Exclusive 6 contact point blade adjustable guide assemblies
Combined with the side bearings are carbide pads, the back of the blade rides on two load bearings mounted on a pivot shaft so both bearings share the load equally
Mitering head - the workpiece remains fixed while the head swivels to cut any angle 0Â° - 45Â°
Heavy duty transmission utilizes hardened and ground gears operating in an oil bath
Counterbalanced feed system is controlled by a dual system of counterbalance springs working with a hydrauliuc cylinder.
Swing away control panel
Cast iron blade wheels
Coolant system
1" Bi-metal blade
Adjustablr material stop

Variable speed drive system allows the operator to fine tune the blade speed fast and easily

Exclusive 6 contact point blade adjustable guide assemblies

Combined with the side bearings are carbide pads, the back of the blade rides on two load bearings mounted on a pivot shaft so both bearings share the load equally

Mitering head - the workpiece remains fixed while the head swivels to cut any angle 0Â° - 45Â°

Heavy duty transmission utilizes hardened and ground gears operating in an oil bath

Counterbalanced feed system is controlled by a dual system of counterbalance springs working with a hydrauliuc cylinder.

Swing away control panel

Cast iron blade wheels

Coolant system

1" Bi-metal blade

Adjustablr material stop

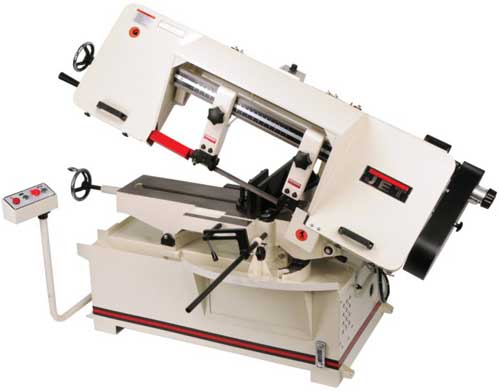

J-7020M 10" x 16" HORIZONTAL MITERING BANDSAW 1PH

Model Number	J-7020M
Brand	Jet
Height	48 inch
Width	30 inch
Length	76 inch
Net Weight	1134 pound
Gross Weight	1134 pound
Motor	1-1/2 HP, 115/230V, 1 PH, Prewired 230V
Cutting Capacity (in.)	10 x 16
Round at 90 Degrees (in.)	10
Round at 45 Degrees (in.)	8-1/2
Rectangle at 90 Degrees (in.)	2 x 16 / 10 x 14
Square at 90 Degrees (in.)	10
Blade Size (in.)	1 X .035 X 135
Blade Speeds (SFPM)	100 - 350
Bed Height (in.)	25-1/2
Head Swivels (deg.)	45

There is no additional information on this product.

Click here for bandsaw blades!

Compare

More Information show more

J-7020M, 10 X 16 HORIZONTAL MITERING BANDSAW

Mfg. item #: 414474

WMH414474

lease to own for as little as:$150 per month!

FREE expedited shipping Plus FREE residential, liftgate and call ahead service. ⁴

$7,499.00
