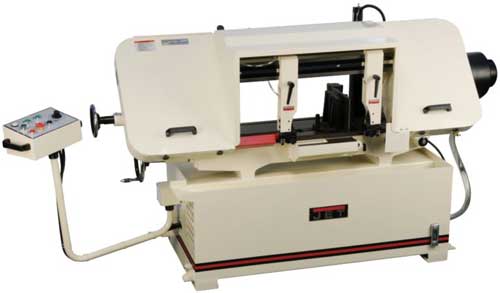

Jet J-7060 12 X 20 Semi-Auto Horizontal

Features:

  • Variable speed drive system allows the operator to fine tune the blade speed fast and easily
  • Exclusive swivel control panel
  • Heavy duty transmission utilizes hardened and ground gears operating in an oil bath
  • Counterbalanced feed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
  • Saw head raised hydraulically after each cut
  • Cast iron band wheels
  • Swing away control panel
  • Exclusively patented 3 jaw vise allows for faster set up
  • Exclusive 6 contact point blade adjustable guide assembles utilize cam follower bearings mounted on eccentric shafts on both sides of the blade
  • Coolant system
  • 1" Bi-metal blade
  • Adjustable material stop
There are no further details.
Specifications
Part Number 414476
Model Number J-7060
Motor 3 HP, 230/460V, 3Ph, Prewired 230V
Round at 90 Degrees (in.) 12
Round at 45 Degrees (in.) 12
Rectangle at 90 Degrees (in.) 12 X 20
Square at 90 Degrees (in.) 12
Blade Size (in.) 1 X .035 X 156
Blade Speeds (SFPM) 82 - 262
Bed Height (in.) 156
Blade Length (in.) 156
Rectangle at 45 (in.) 12 X 12
Overall Dimensions 87 X 37-1/2 X 53
Height 53 inch
Width 31.5 inch
Length 87 inch
Net Weight 1456 pound
There are no listed accessories.
JT9-414476
Mfg. item #: JT9-414476
WMH414476
lease to own for as little as:$269 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$14,289.00

6
JT9-5674023
Mfg. item #: JT9-5674023
WMH5674023
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$109.00
