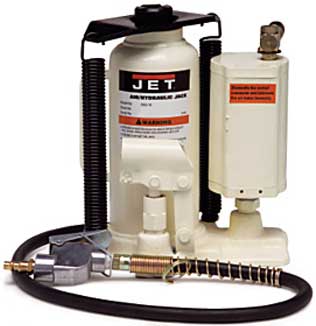

Air/Hydraulic Bottle Jack

Air/Hydraulic Bottle Jack

Features

  • Industrial Pneumatic motor reduces lifting time and provides trouble free operation

  • Forged steel base provides strength where it is needed most

  • Carrying handle great for positioning

  • Heavy-duty blow molded case provides easy storage and rugged protection for severe applications

  • Heavy-duty industrial air hose 170 PSI burst strength

  • High strength robotic welds for superior strength and leak protection

SPECIFICATIONS
Stock Number 456612 456620
Model AHJ-12 AHJ-20
Rated Capacity (ton) 12 20
Minimum Height (in) 9-5/8 9-5/8
Maximum Height (in) 18-5/8 18-5/8
Head Screw (H/in) 3-1/8 3-1/8
Base Size ( L x W/in) 8-1/4 x 6-3/8 8-1/4 x 6-3/8
Lift (in) 5-7/8 5-7/8
Air Fitting (NPT/in) 1/4 x 18 1/4 x 18
Hose Size (in) 1/4 1/4
Working Pressure (PSI/CFM) 101-145/7.85 101-145/7.85
Shipping Weight (lbs) 28 36
