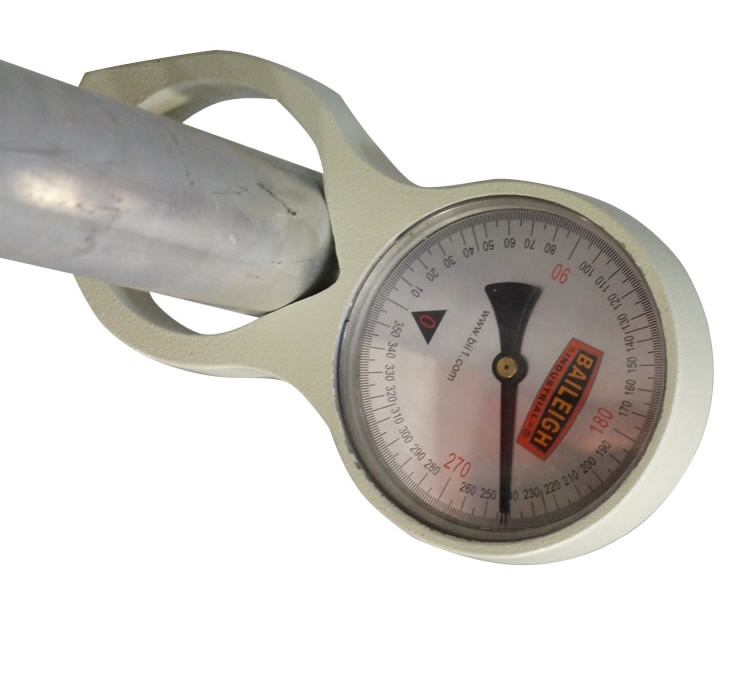

Baileigh AF-360 Angle Finder

INSTANTLY IMPROVE ACCURACY WHEN TUBE BENDING ON VARYING PLANES WITH THE AF-360

• Attach to the following end of tube or pipe before bending, complete a bend and rotate material accurately to desired degree and before next bend.
• Indicator accurately detects where plane of bend is within total 360 degree rotation.
• Fits 1 inch OD, up to 3 inch OD
• Ensures that pipe or tube stays on a level plane.
• Immediate payback due to material savings when tube bending.
• Perfect for all applications that require more than one bend in material.

WORKS WITH ANY BRAND OF BENDER!

The tubing bender plane of bend degree indicator is a must for any pipe bender who is working with hand railing, auto chassis, etc., anything that requires an accurate rotation of the previous bend completed, before performing the next bend. A pipe bender that has a positioning table is complimented with the attachment of a tubing bender plane of bend degree indicator. When bending complex exhaust with multiple bends on varying planes (if you can imaging rotating the tube up into the air and then down again to clear a drive shaft or suspension). There is also a benefit when bending hand railing to rotate pipe 32 degrees for the stairwell pitch. Knowing where the plane of bend is exactly saves time and materials, and increases profit to the tubing bender.
