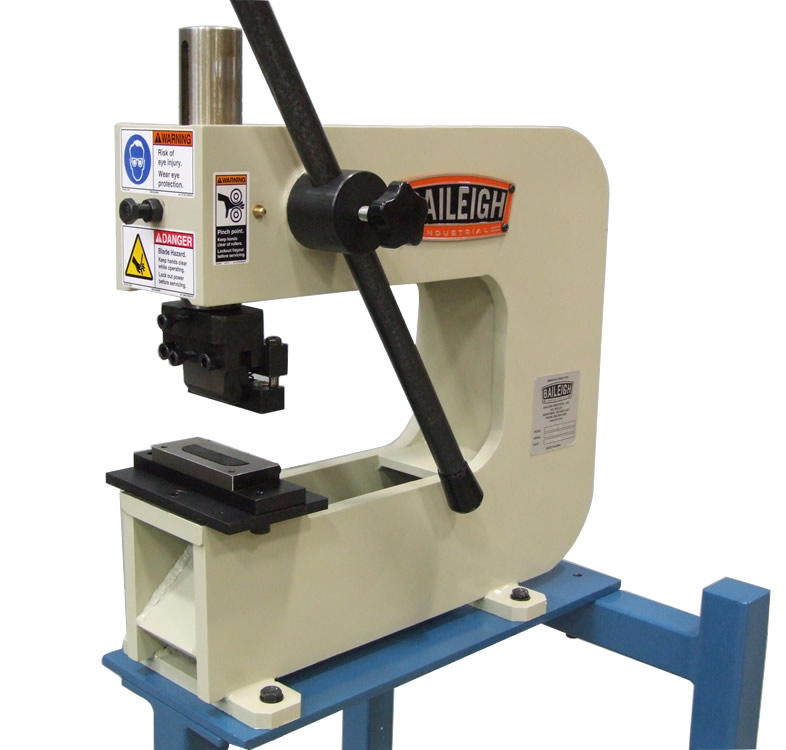

Metal Bench Press BP-3

The BP-3 manual press is the perfect addition to any dirt track chassis and body work fabrication shop. This 3 ton machine can be fitted as a manual louver press, manual press brake, and radius and corner notcher. Other options like hole punching and flaring, and shearing are available.

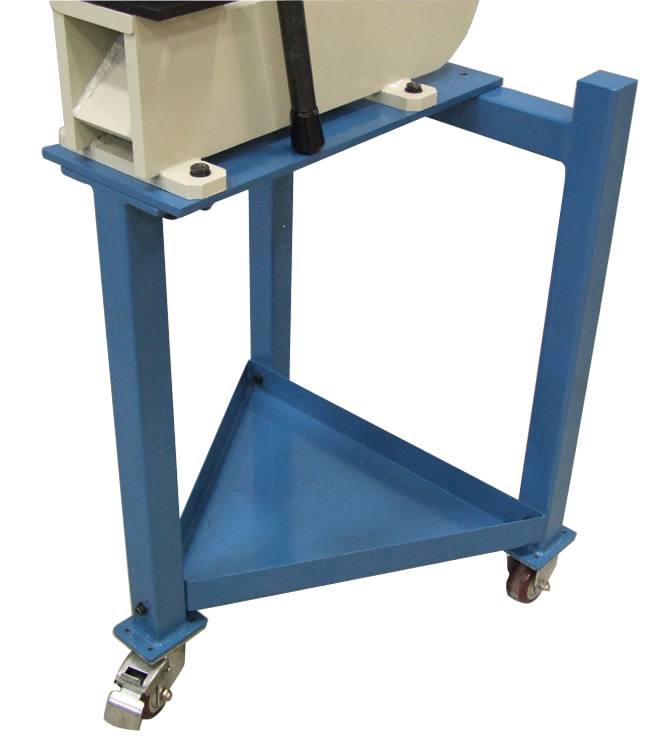

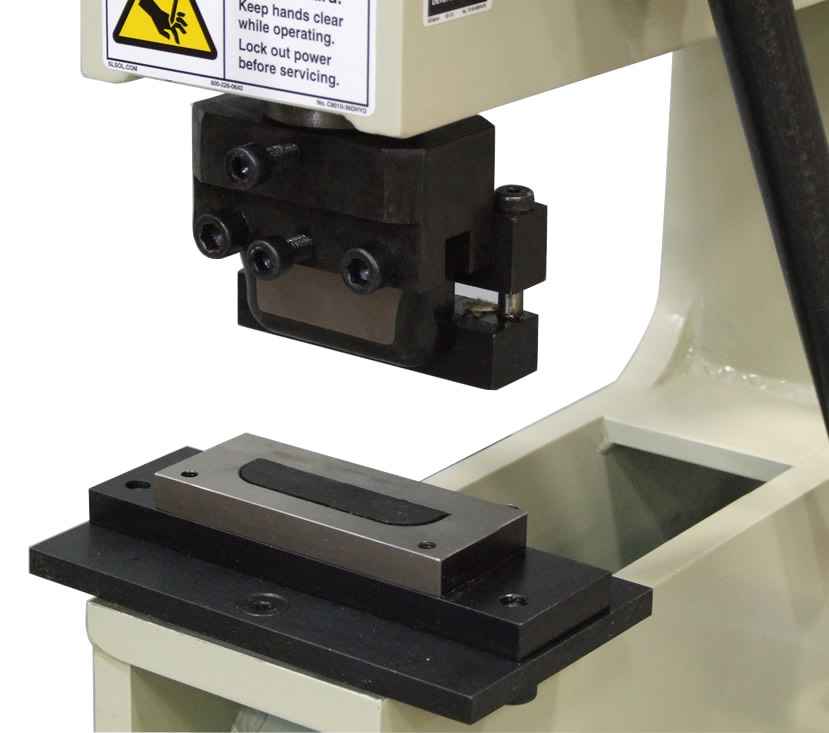

The BP-3 louver press is perfect for creating ventilation throughout any racing panel with ease. Our manual press comes standard with a heavy duty floor stand on wheels, so it can be conveniently rolled out of the way when not in use. Heavy steel plate construction that is electro welded together reduces flexing of the frame when working at maximum capacity. A deep throat depth of 12 inch allows for many applications to be worked on.

This manual press brake has up to a 3 inch stroke and includes as standard the slug ejector. This is the perfect metal bench press for any metal fabrication shop.

Metal Bench Press BP-10E

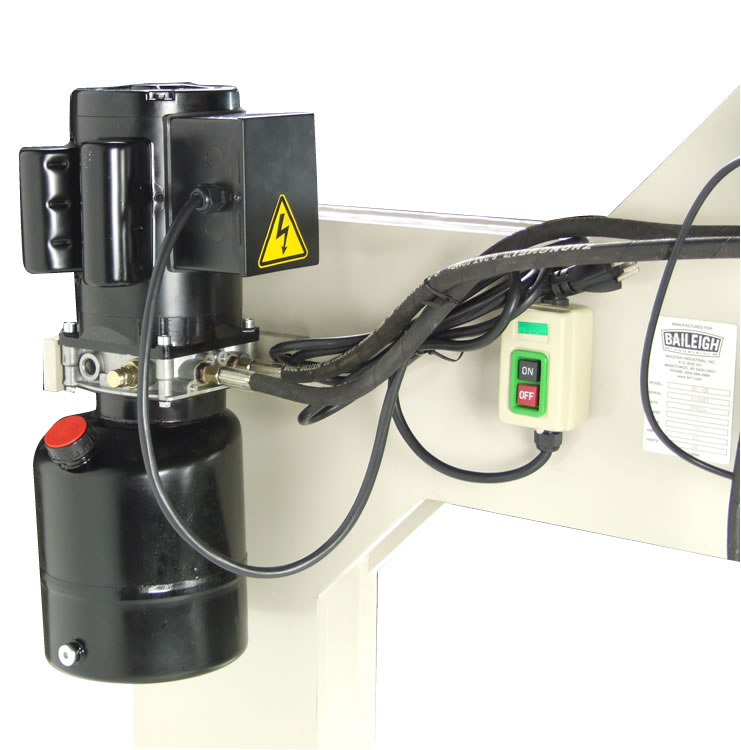

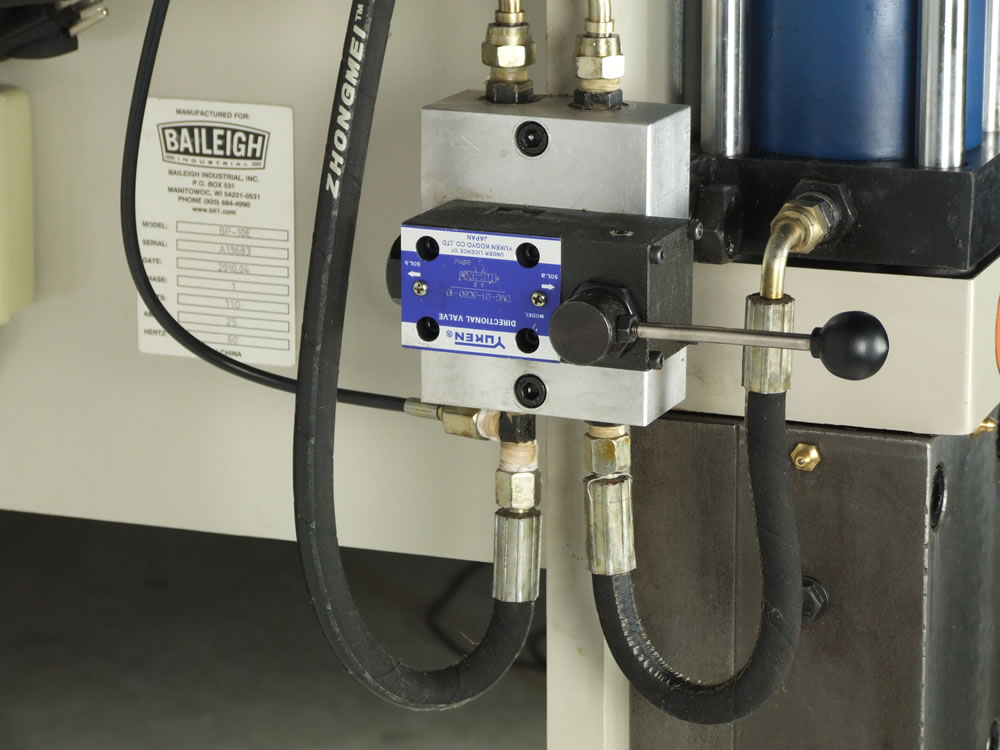

The BP-10E metal bench press is the perfect addition to any fabrication shop. This 110 Volt 10 ton hydraulic machine can be fitted as a louver press, press brake, and radius and corner notcher. Other options like hole punching,flaring, and shearing are available. Heavy steel plate construction that is electro welded together reduces flexing of the frame when working at maximum capacity. A deep throat depth of 25 inch allows for many applications to be worked on. This Hydraulic press brake has up to a 4 inch stroke and includes as standard the slug ejector. This is the perfect metal bench press for any metal fabrication shop

OPTIONAL TOOLING

Specifications for BP-3
Model	BP-3
Throat Depth	12 x 3-3/4 inch
Stand	Included
Stroke	3 inch
Capacity	3 tons
Power	Manual
Shipping Weight	165 lbs.
Shipping Dimensions	28 x 17 x 28 inch

Specifications for BP-10E
Model	BP-10E
Throat Depth	25 x 6 inch
Stroke	4 inch
Capacity	10 tons
Power	110V
Shipping Weight	880 lbs.
Shipping Dimensions	54 x 46 x 25 inch

specifications subject to change without notice

Optional Tooling for BP3 & BP10E
BP3-1	1 inch Louver Die Set for Bench Press Tooling (BP3 & BP10E)
BP3-2	2 inch Louver Die Set for Bench Press Tooling (BP3 & BP10E)
BP3-3	3 inch Louver Die Set for Bench Press Tooling (BP3 & BP10E)
BP3-4	4 inch Louver Die Set for Bench Press Tooling (BP3 & BP10E)
BP3-5	5 inch Louver Die Set for Bench Press Tooling (BP3 & BP10E)

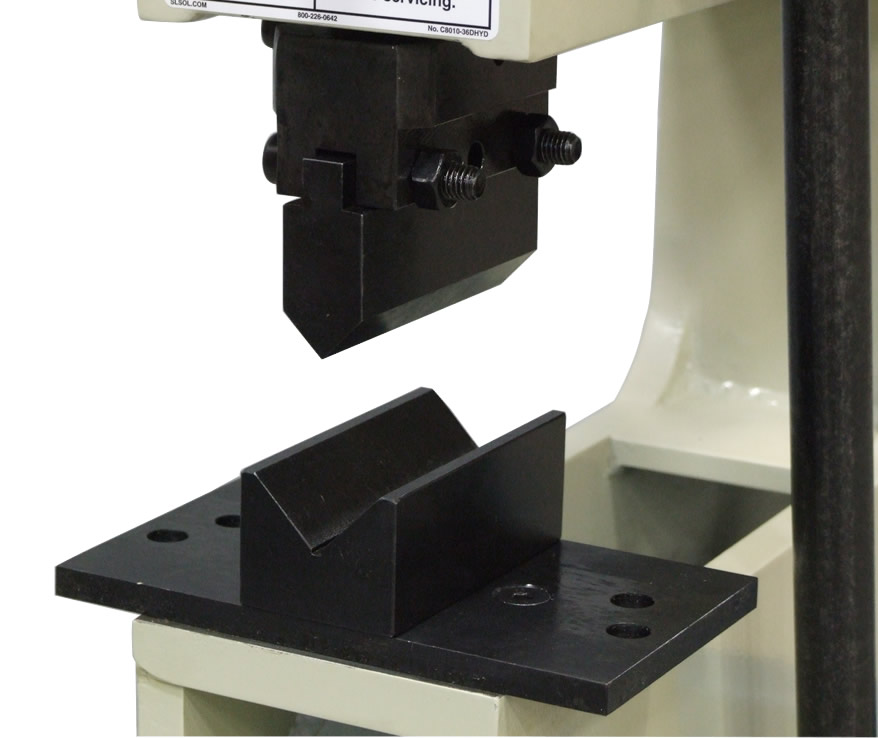

BP3-BK	90 Degree Bend Kit for BP-3/10E - 3/8 in Mild Steel Capacity for Bench Press Tooling (BP3 & BP10E)
BP3-CN	Sheet Metal Corner Notcher - 1 in x 1 in Corner Notcher Kit for BP-3/10E - 16 Gauge Mild Steel Capacity for Bench Press Tooling (BP3 & BP10E)
BP3-RC	Radius Corner Attachment for BP-3/10E, Radius are 1 in , 3/4 in , 1/2 in ,and 1/4 in - 16 Gauge Mild Steel Capacity for Bench Press Tooling (BP3 & BP10E)
BP3-SH	Sheet Metal Shear Attachment- Shear Kit for BP-3/10E -- 16 Guage Mild Steel Capacity for Bench Press Tooling (BP3 & BP10E)
BP3-PB	Complete Set of Punch and Bead Dies, Set Includes 1'', 1-1/4'', 1-1/2'', 1-3/4'', 2'', 2-1/2'', 3'' for Bench Press Tooling (BP3 & BP10E)
BP3-PF	Complete Set of Punch and Flare Dies, Set Includes 1'', 1-1/4'', 1-1/2'', 1-3/4'', 2'', 2-1/2'', 3'' for Bench Press Tooling (BP3 & BP10E)


Metal Bench Press BP-3	Metal Bench Press BP-10E
