Baileigh BR-16E-36 Power Bead Roller

Bead Roller - BR-16E-36

Click image to enlarge

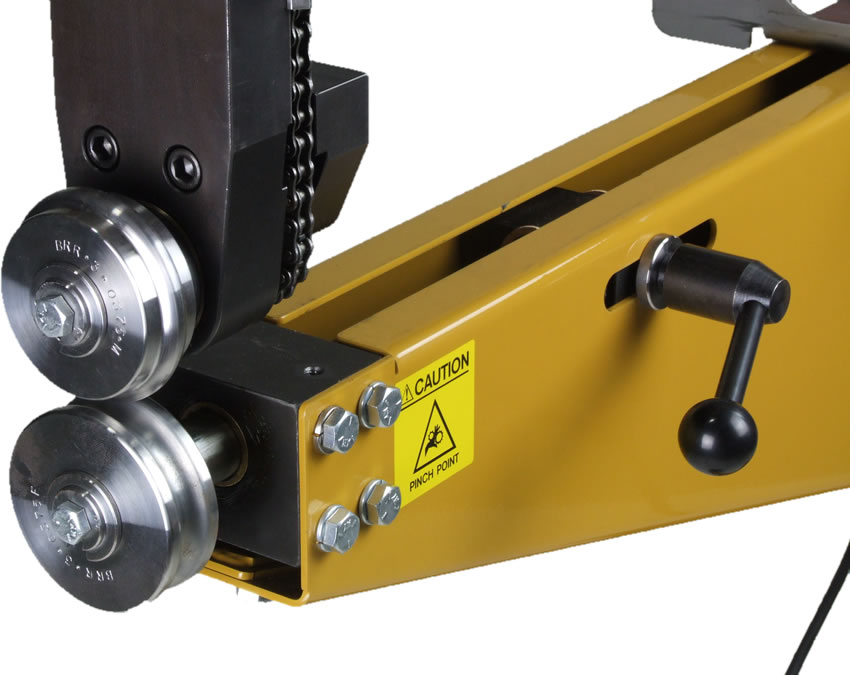

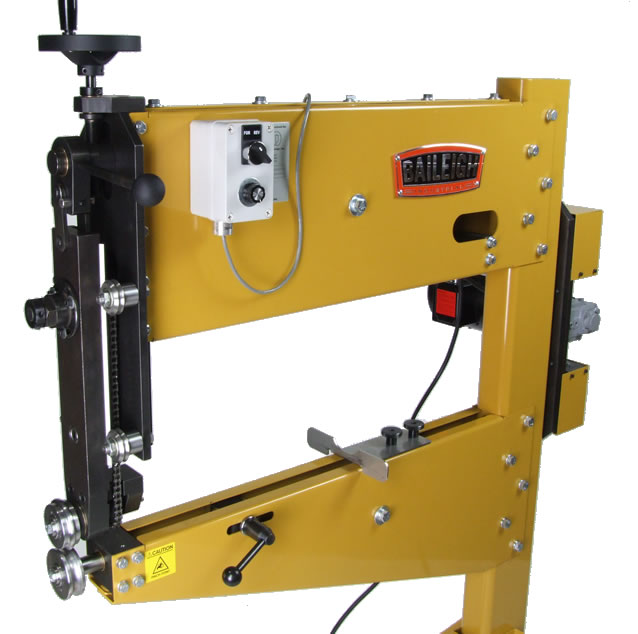

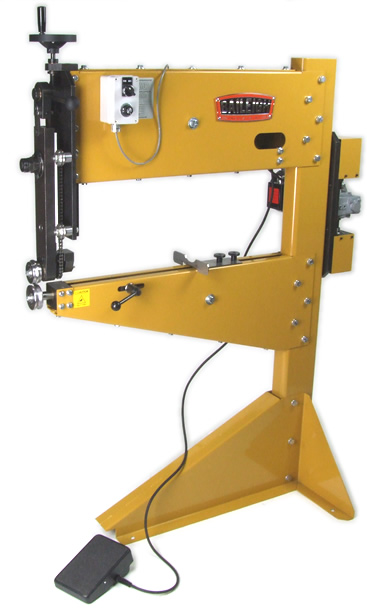

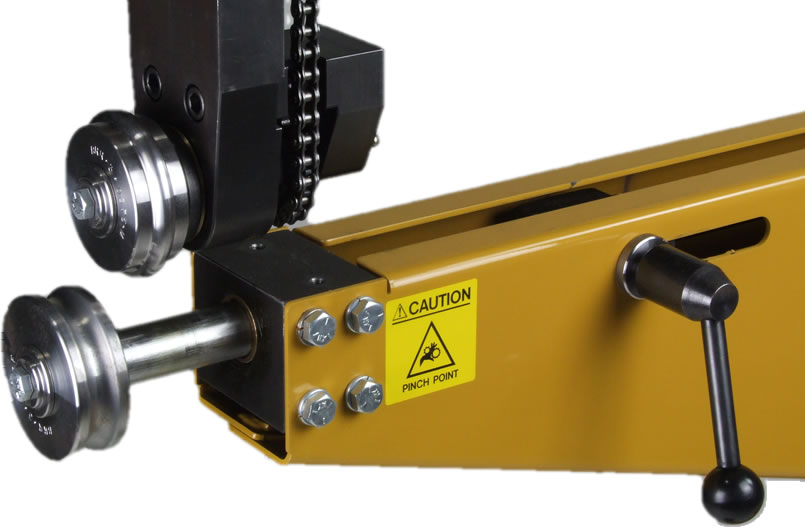

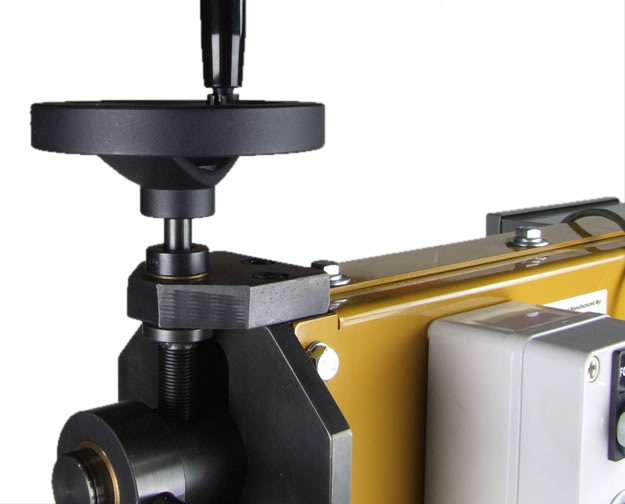

The BR-16E-36 bead roller from Baileigh Industrial is a machine that will change the metal forming industry.  It has all the best features that fabricators want, as well as some they didnt know that the needed, until now The BR-16E-36 bead former has a large 36 inch throat depth with integrated depth stop.  The Baileigh Industrial BR-16E-36 bead roll has an open concept working area with a unique quick release top die.  Unlike most other bead rollers on the market, the BR-16E-36 allows the bottom die to be slid in or out depending on the offset the finished item requires.

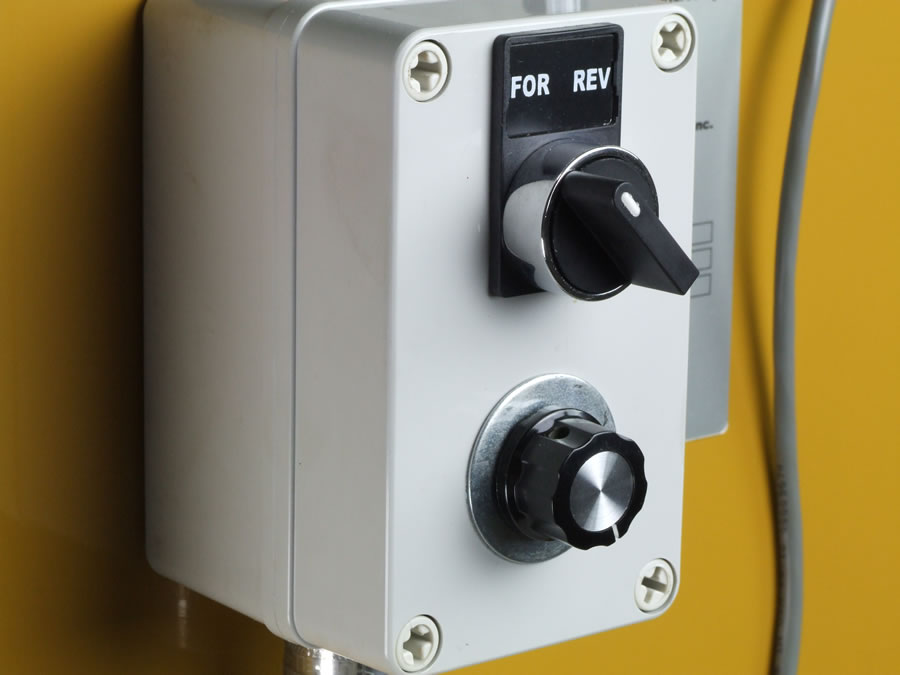

A variable speed foot pedal controls the speed of the material feed, but can be locked in at one speed if that is what the operator chooses.  An external 110V power outlet is also integrated into the BR-16E-36, allowing the operator to attach a work light for more visibility.

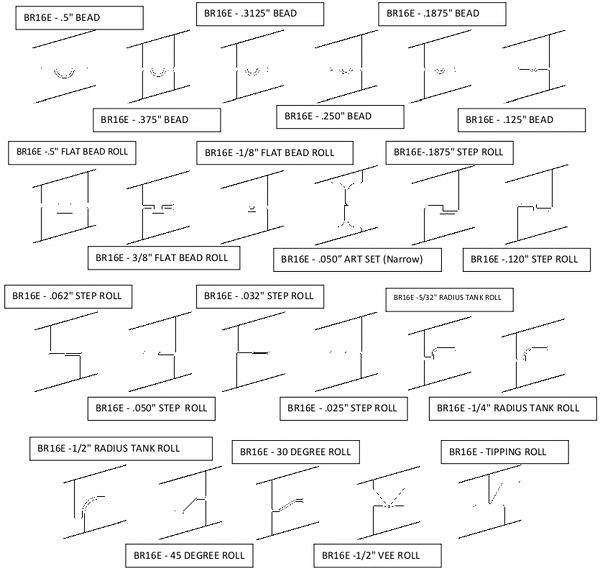

br-16e bead roller tooling image

Specifications
Model BR-16E-36
Capacity Mild Steel
16 ga
Capacity Aluminum
14 ga
Motor
1/2 HP
Throat Depth
36 inch
Accessories
BR16E-.025"STEPROLL 0.025 inch Step Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.032"STEPROLL 0.032 inch Step Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.050"ARTSET 0.050 inch ART SET NARROW Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.050"STEPROLL 0.050 inch Step Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.062"STEPROLL 0.062 inch Step Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.125"BEADROLL 0.125 inch Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.1875"BEADROLL 0.1875 inch Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.250"BEADROLL 0.250 inch Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.3125�BEADROLL 0.3125 inch Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.375"BEADROLL 0.375 inch Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.5"BEADROLL 0.5 inch Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-1/4"STEPROLL 0.25 inch Step Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-1/8"FLATBEAD 1/8 inch Flat Bead Roll Set for BR-16E 3 inch Dia For the BR-16E-36 ONLY !
BR16E-3"BLANKROLL 3 inch Blank Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-3"FLATROLL 3 inch Flat Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-3/8"FLATROLL 3/8 inch Flat Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-30DEGREEROLL 30 Degree Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-45DEGREEROLL 45 Degree Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-5/16FLATBEAD 5/16 inch Flat Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-5/16"ROUNDBEAD 5/16 inch Round Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-TIPPINGROLL Tipping Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.25"FLATBEADROLL 0.25 inch Flat Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.5"FLATBEADROLL 0.5 inch Flat Bead Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-1/2"RADIUSTANKROLL 1/2 inch Radius Tank Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-1/4"RADIUSTANKROLL 1/4 inch Radius Tank Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-5/32"RADIUSTANKROLL 5/32 inch Radius Tank Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.125"STEPROLL 1/8 inch Step Roll For the BR-16E-36 ONLY !
BR16E-.1875"STEPROLL 0.1875 inch Step Roll Set for BR-16E 3 inch Diam For the BR-16E-36 ONLY !
BR16E-.75"ROUNDBEADROL 3/4 inch Round Bead Roll for BR-16E For the BR-16E-36 ONLY !
BR16E-1/2"VEEROLL 1/2 inch Vee Roll Set for BR-16E 3 inch Diameter For the BR-16E-36 ONLY !
BR16E-6A078 Support Table for BR-16E-36 For the BR-16E-36 ONLY !
BR16E-RUBBERBEAD3"DIAM 3 inch Diam, Rubber Bead Roll For the BR-16E-36 ONLY !
BR16E-WIREBEADDIES1/8" 1/8 inch Wire bead dies for BR-16E-36 For the BR-16E-36 ONLY !



1000862
110V 36 THROAT DEPTH BEAD ROLLER, 16 GAUGE MILD STEEL CAPACITY ** WEIGHT = 515 LBS / MADE IN USA - SHIPS LTL BOX TRUCK (18 WHEELER) RESIDENTAL, LIFTGATE DELIVERIES AVAILABLE
CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DELIVERED PRICE ON THIS BAILEIGH ITEM
Mfg. item #: 1000862
BAIBR-16E-36
lease to own for as little as:$136 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,241.76

2
Call for price. BAIBR16E-.025"STEPROLL
Call for price. BAIBR16E-.032"STEPROLL
Call for price. BAIBR16E-.050"ARTSET
Call for price. BAIBR16E-.050"STEPROLL
Call for price. BAIBR16E-.062"STEPROLL
Call for price. BAIBR16E-.125"BEADROLL
Call for price. BAIBR16E-.1875"BEADROLL
Call for price. BAIBR16E-.250"BEADROLL
Call for price. BAIBR16E-.3125�BEADROLL
Call for price. BAIBR16E-.375"BEADROLL
Call for price. BAIBR16E-.5"BEADROLL
Call for price. BAIBR16E-1/4"STEPROLL
Call for price. BAIBR16E-1/8"FLATBEAD
Call for price. BAIBR16E-3"BLANKROLL
Call for price. BAIBR16E-3"FLATROLL
Call for price. BAIBR16E-3/8"FLATROLL
BR16E-30DEGREER
30 DEGREE ROLL SET FOR BR-16E 3 DIAM FOR THE BR-16E-36 ONLY !
Mfg. item #: BR16E-30DEGREER
BAIBR16E-30D{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$150.00

372
BR16E-45DEGREER
45 DEGREE ROLL SET FOR BR-16E 3 DIAM FOR THE BR-16E-36 ONLY !
Mfg. item #: BR16E-45DEGREER
BAIBR16E-45D{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$150.00

372
BR16E-5/16FLATB
5/16 FLAT BEAD ROLL SET FOR BR-16E 3 DIAM FOR THE BR-16E-36 ONLY !
Mfg. item #: BR16E-5/16FLATB
BAIBR16E-5/1{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$150.00

372
Call for price. BAIBR16E-5/16"ROUNDBEAD
BR16E-TIPPINGRO
TIPPING ROLL SET FOR BR-16E 3 DIAM FOR THE BR-16E-36 ONLY !
Mfg. item #: BR16E-TIPPINGRO
BAIBR16E-TIP{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$150.00

372
Call for price. BAIBR16E-.25"FLATBEADROLL
Call for price. BAIBR16E-.5"FLATBEADROLL
Call for price. BAIBR16E-1/2"RADIUSTANKROLL
Call for price. BAIBR16E-1/4"RADIUSTANKROLL
Call for price. BAIBR16E-5/32"RADIUSTANKROLL
Call for price. BAIBR16E-.125"STEPROLL
Call for price. BAIBR16E-.1875"STEPROLL
Call for price. BAIBR16E-.75"ROUNDBEADROL
Call for price. BAIBR16E-1/2"VEEROLL
BR16E-6A078
SUPPORT TABLE FOR BR-16E-36 FOR THE BR-16E-36 ONLY !
Mfg. item #: BR16E-6A078
BAIBR16E-6A078
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$700.00

372
Call for price. BAIBR16E-RUBBERBEAD3"DIAM
BR16E-WIREBEADD
1/8 WIRE BEAD DIES FOR BR-16E-36 FOR THE BR-16E-36 ONLY !
Mfg. item #: BR16E-WIREBEADD
BAIBR16E-WIR{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$495.00

372
