Baileigh EW-28 English Wheel

Bead Former BF-035

English Wheel English Wheel Machine English Wheel Machine Stand of the English Wheel 28 English Wheel Machine English Wheel Machine

Click image to enlarge

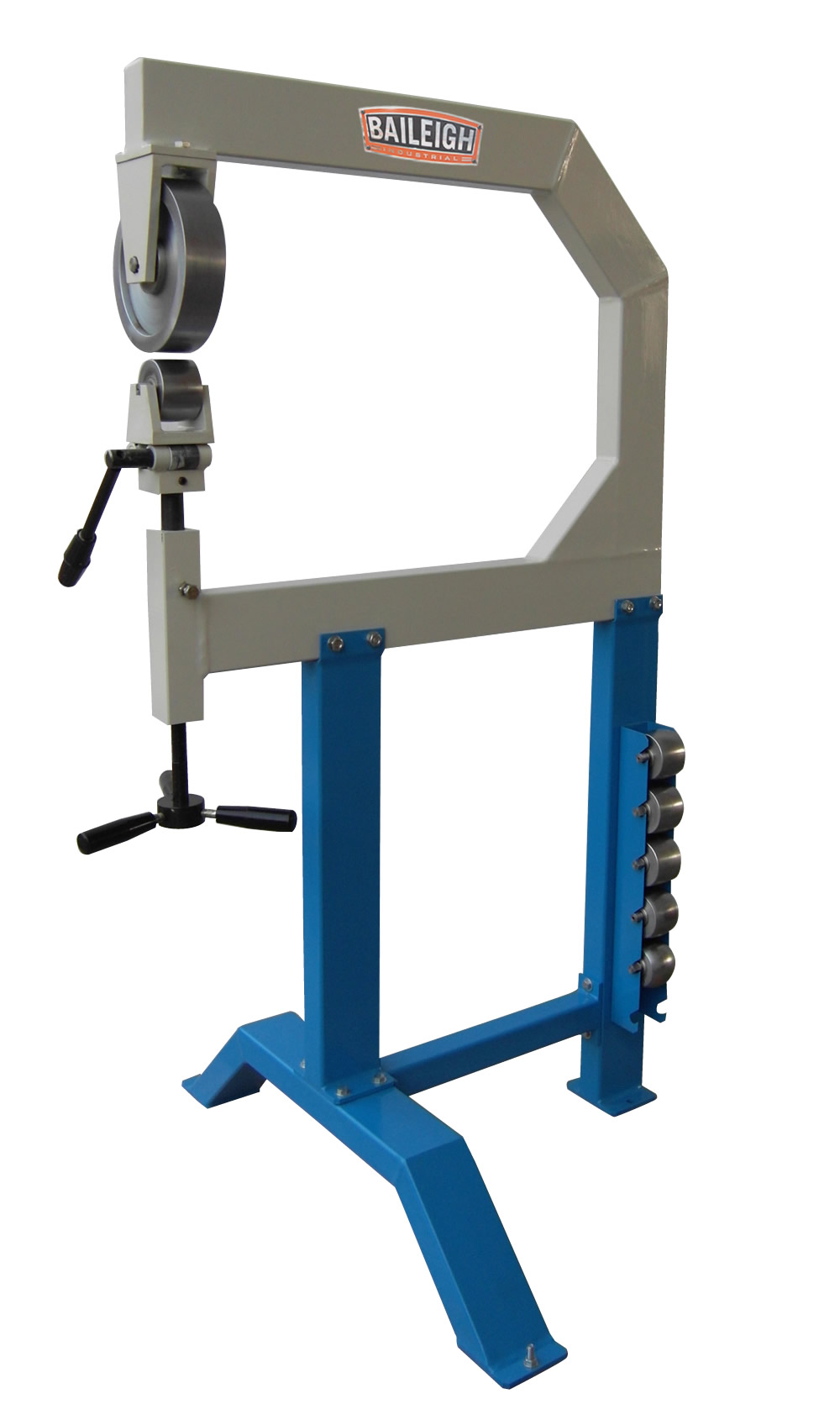

English Wheel EW-28

The EW-28 english wheel is perfect for the fabrication shop that is small on space but need a high quality tool to shape and finish sheet metal.  This quality english wheel is a standalone unit that features a heavy duty stand that is built to handle the smoothing of compound curves into mild steel and aluminum sheet metal for restoration or bodywork on autos, planes, cycles and much more. This machine has an 18-gauge mild steel capacity and has an ample 28 inch throat depth.

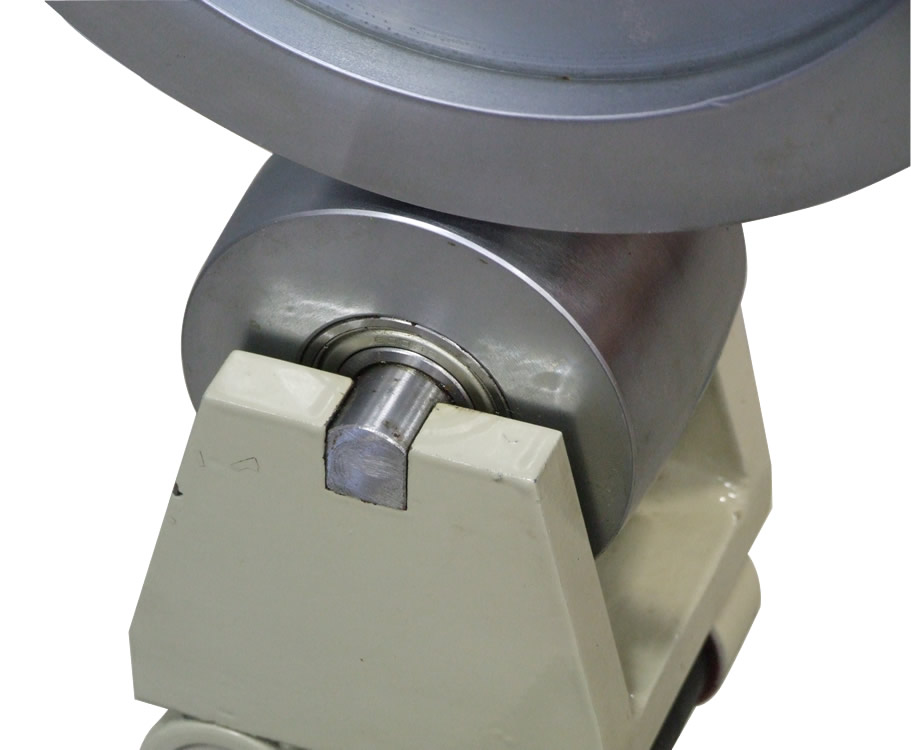

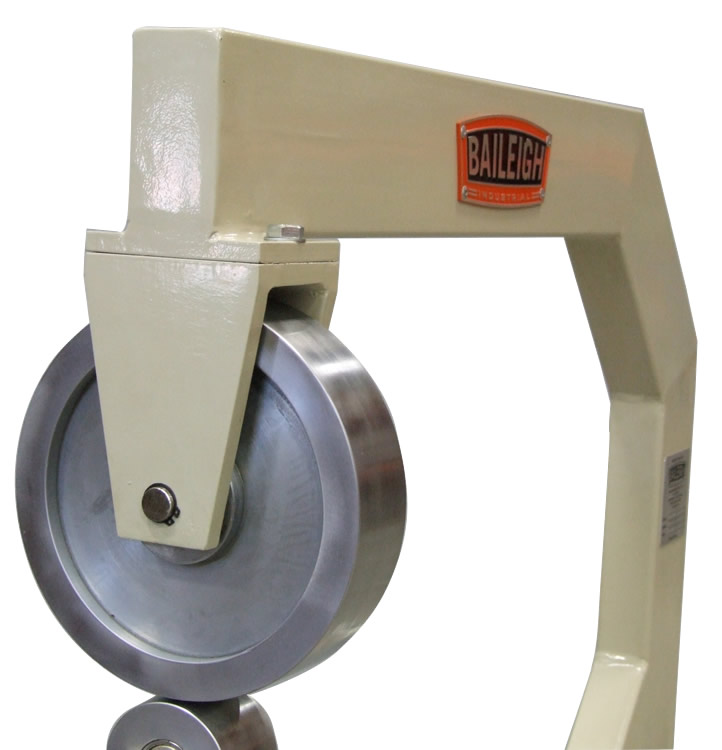

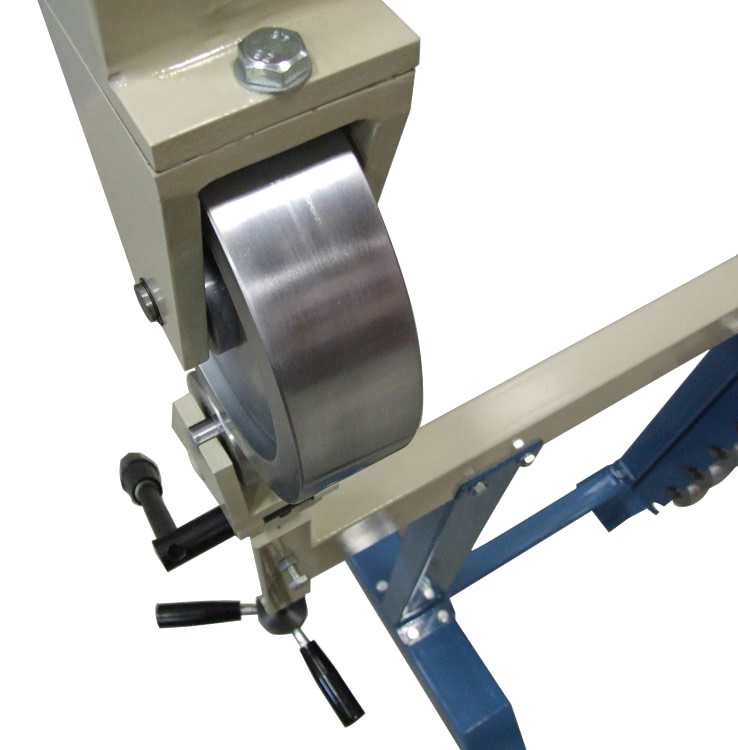

The EW-28 English wheel comes standard with an 8 X 2 inch upper roll and includes six lower anvil rolls with varying crowns. The radius included for the six lower rolls are 2, 3, 4, 6, 8, and 12 inch.

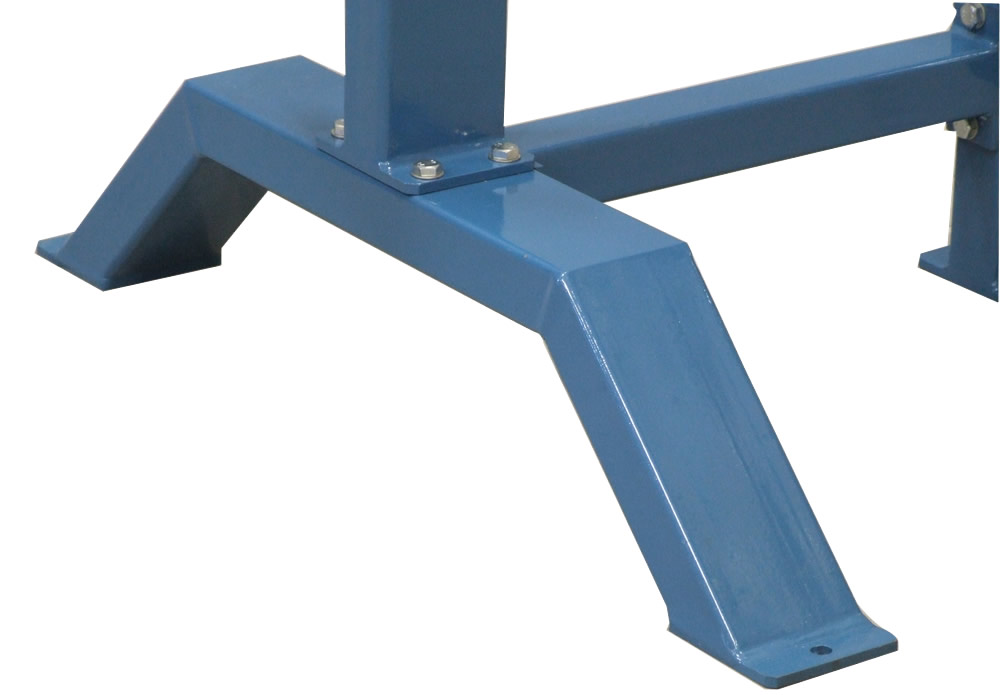

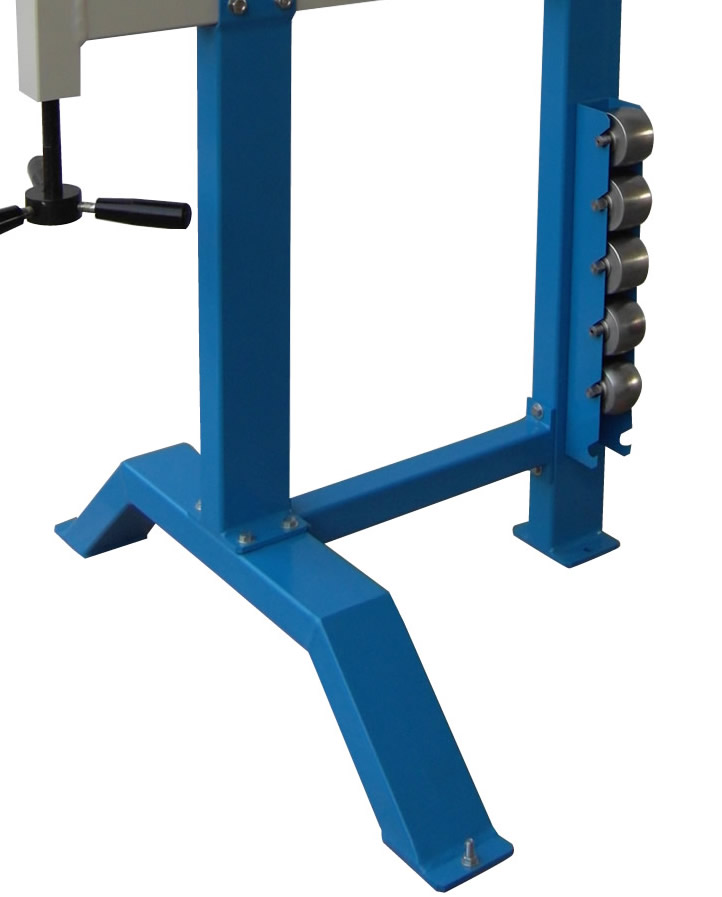

Like other Baileigh English wheels, the machine comes intact with only minor assembly required (no welding required). The frame members are constructed of heavy walled square tubing that is fully welded to help eliminate flex when forming at maximum capacity.

If youre interested in the EW-28 english wheel, call your Southern-Tool representative.



Specifications
Model EW-28
Mild Steel Capacity 18 ga.
Throat Depth 28 inch
Aluminum Capacity 14 ga.
Lower Die Radius 2, 3, 4, 6, 8, 12 inch
Power Manual
Shipping Weight 191 lbs.
Shipping Dimensions 36 x 34 x 15 inch
Top Wheel Dimensions 8 x 2 inch



No additional accessories

BA9-1004166
28 THROAT DEPTH ENGLISH WHEEL / MADE IN CHINA / WGT = 240 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1004166)ADD TO CART NOW FOR FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1004166
BAIEW-28
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,529.00
