Baileigh EW-40 English Wheel - Manually

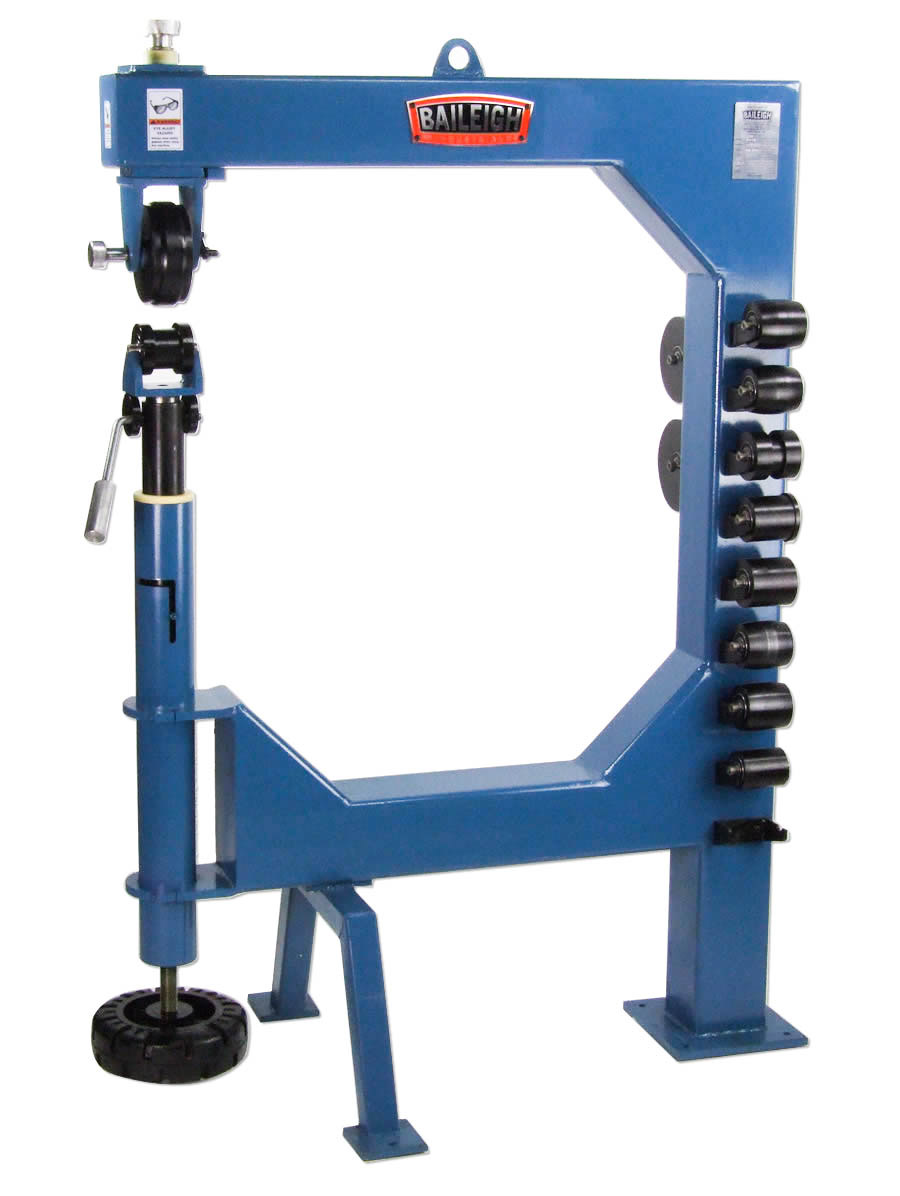

English Wheel EW-40

Made in Taiwan

Every fabrication shop has to have a good quality english wheel to help in the correct forming of sheet metal.  But not all wheels are made the same; strength, rigidity, and throat depth are the most important things when looking at an english wheel.
The EW-40 is as ridged as an english wheel with a throat depth of 37-3/4 inch can be. It uses 5x 5 x .250 inch box tubing for the frame work.  This frame is fully welded for even less flex when rolling at full capacity.  The EW-40 is rated to form up to 16 gauge mild steel, giving the fabricating shop years of quality shaping and forming metal.

The EW-40 ships complete with nine bottom anvils and three 6 inch upper wheels allowing the user to roll beads as well as form metal.  Anvils come in 1/8, 1/2 inch, and 3/4 inch edge radius as well as a 6 inch crown radius.  The EW-40 also comes with two flat rolls, a 5/16 x 1/4 inch step roll as well as 1-1/2 inch and 5/8 inch round bead rolls.  Another great feature of the EW-40 English wheel is the ability to rotate the head allowing the user to either push into the throat or at a 90 degree to it.  A real rubber kick tensioner rounds out the package. This is one complete English wheel!

Call a customer service representatives for more information.



Model EW-40
Mild Steel Capacity 18 ga.
Throat Depth 40 inch
Aluminum Capacity 14 ga.
Lower Die Radius 1.85, 2.165, 4.85,40 inch
Power Manual
Shipping Weight 388 lbs.
Shipping Dimensions 72 x 36 x 15 inch
Top Wheel Dimensions 7 x 3 inch


No additional accessories

Mfg. item #: EW-40
Call for freight quote on this item or we will confirm freight charges before shipping.1
