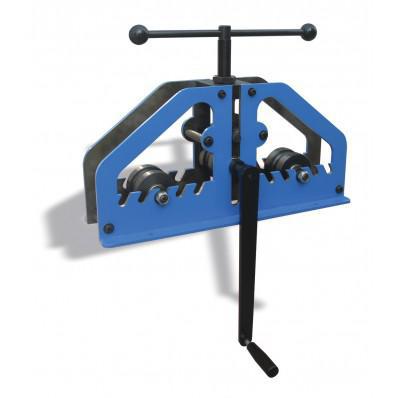

Baileigh R-M7 Manual Roll Bender

Radius Bender R-M7

Need to bend tube and pipe to large radii?  Then Baileigh Industrials R-M7 radius bender is for you. Although not for rolling complete circles, the R-M7 does, make quick work of large radius bends.  With many different tooling options, the R-M7 is just as versatile as all of the other Baileigh Industrial roll benders.

The R-M7 radius bender is built using the highest quality materials for years of use.  The R-M7 small size makes it highly portable and versatile for even the smallest shops.  All turning shafts on the R-M7 roll bender turn on precision ball bearings, for the smoothest operation possible.

If you have questions about this, or any of the other Baileigh Industrial roll benders, please call our Representative today.





Specifications
Model R-M7
Round Tube Capacity (in) Size: 2 / Min. Radius: 60
Shaft Center Distance Adj. (lower rolls)
Rectangle Capacity (in) Size: 1 x 2 / Min. Radius.: 10
Roll Adjustment Manual
Pipe Capacity (in) Size: 1.5 / Min. Radius: 20
Pinch Single
Capacity Flat Bar (in) Size: 1.25 / Min. Radius.: 10
Power Manual
Shipping Weight 85 lbs.





Round Pipe Tooling
SRPR-M7-13.716 1/4 in Round Pipe (0.54 in OD) Rolls
SRPR-M7-17.145 3/8 in Round Pipe (0.675 in OD) Rolls
SRPR-M7-21.336 1/2 in Round Pipe (0.84 in OD) Rolls
SRPR-M7-26.67 3/4 in Round Pipe (1.05 in OD) Rolls
SRPR-M7-33.401 1 in Round Pipe (1.315 in OD) Rolls
SRPR-M7-42.164 1-1/4 in Round Pipe (1.66 in OD) Rolls
SRPR-M7-48.26 1-1/2 in Round Pipe (1.90 in OD) Rolls
Round Tube Tooling
SRTR-M7-12.7 1/2 in Round Tube Rolls
SRTR-M7-15.875 5/8 in Round Tube Rolls
SRTR-M7-19.05 3/4 in Round Tube Rolls
SRTR-M7-22.22 7/8 in Round Tube Rolls
SRTR-M7-25.4 1 in Round Tube Rolls
SRTR-M7-28.575 1-1/8 in Round Tube Rolls
SRTR-M7-31.750 1-1/4 in Round Tube Rolls
SRTR-M7-34.925 1-3/8 in Round Tube Rolls
SRTR-M7-38.1 1-1/2” Round Tube Rolls
SRTR-M7-41.275 1-5/8 in Round Tube Rolls
SRTR-M7-44.45 1-3/4 in Round Tube Rolls
SRTR-M7-50.8 2 in Round Tube Rolls
Square Tube Tooling
SSTR-M7-12.7 1/2 in Square Tube Rolls
SSTR-M7-19.05 3/4 in Square Tube Rolls
SSTR-M7-25.4 1 in Square Tube Rolls
SSTR-M7-31.75 1-1/4 in Square Tube Rolls
SSTR-M7-38.1 1-1/2 in Square Tube Rolls
SSTR-M7-44.45 1-3/4 in Square Tube Rolls

BA9-1006861
R-M7; MANUALLY POWERED RING AND ANGLE ROLL BENDING MACHINE. 1-1/2 SCHEDULE 40 MAXIMUM CAPACITY **SHIPS LTL FREIGHT TRUCK, WGT = 83 LBS & MADE IN CHINA

CALL 800-458-3687 OR ADD TO VART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOINTMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-1006861
BAIR-M7
See freight charges if any at checkout. ALWAYS FREE Residential and Liftgate when Requested.1055
$839.00

1
1007463
1/4 ROUND PIPE (0.54OD) ROLLS FOR R-M7
Mfg. item #: 1007463
BAISRPR-M7-1{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$243.70

651
1007464
3/8 ROUND PIPE (0.675OD) ROLLS FOR R-M7
Mfg. item #: 1007464
BAISRPR-M7-1{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$240.81

651
1007465
1/2 ROUND PIPE (0.84OD) ROLLS FOR R-M7
Mfg. item #: 1007465
BAISRPR-M7-2{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$429.59

651
1007466
3/4 ROUND PIPE (1.05OD) ROLLS FOR R-M7
Mfg. item #: 1007466
BAISRPR-M7-2{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$322.68

651
1007467
1 ROUND PIPE (1.315OD) ROLLS FOR R-M7
Mfg. item #: 1007467
BAISRPR-M7-3{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$315.93

651
1007468
1-1/4 ROUND PIPE (1.66OD) ROLLS FOR R-M7
Mfg. item #: 1007468
BAISRPR-M7-4{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$407.44

651
1007469
1-1/2 ROUND PIPE (1.90OD) ROLLS FOR R-M7
Mfg. item #: 1007469
BAISRPR-M7-4{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$420.93

651
1007594
1/2 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007594
BAISRTR-M7-12.7
Call for freight quote on this item or we will confirm freight charges before shipping.1
$315.93

651
1007595
5/8 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007595
BAISRTR-M7-1{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$322.68

651
1007596
3/4 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007596
BAISRTR-M7-1{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$322.68

651
1007597
7/8 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007597
BAISRTR-M7-2{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$263.93

651
1007598
1 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007598
BAISRTR-M7-25.4
Call for freight quote on this item or we will confirm freight charges before shipping.1
$322.68

651
1007599
1-1/8 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007599
BAISRTR-M7-2{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$247.55

651
1007600
1-1/4 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007600
BAISRTR-M7-3{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$322.68

651
1007601
1-3/8 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007601
BAISRTR-M7-3{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$249.48

651
1007602
1-1/2 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007602
BAISRTR-M7-38.1
Call for freight quote on this item or we will confirm freight charges before shipping.1
$249.48

651
1007603
1-5/8 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007603
BAISRTR-M7-4{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$338.10

651
1007604
1-3/4 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007604
BAISRTR-M7-4{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$315.93

651
1007605
2 ROUND TUBE ROLLS FOR R-M7
Mfg. item #: 1007605
BAISRTR-M7-50.8
Call for freight quote on this item or we will confirm freight charges before shipping.1
$389.14

651
1007678
1/2 SQUARE TUBE ROLLS FOR R-M7
Mfg. item #: 1007678
BAISSTR-M7-12.7
Call for freight quote on this item or we will confirm freight charges before shipping.1
$374.69

651
1007679
3/4 SQUARE TUBE ROLLS FOR R-M7
Mfg. item #: 1007679
BAISSTR-M7-1{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$316.90

651
1007680
1 SQUARE TUBE ROLLS FOR R-M7
Mfg. item #: 1007680
BAISSTR-M7-25.4
Call for freight quote on this item or we will confirm freight charges before shipping.1
$429.59

651
1007681
1-1/4 SQUARE TUBE ROLLS FOR R-M7
Mfg. item #: 1007681
BAISSTR-M7-3{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$398.78

651
1007682
1-1/2 SQUARE TUBE ROLLS FOR R-M7
Mfg. item #: 1007682
BAISSTR-M7-38.1
Call for freight quote on this item or we will confirm freight charges before shipping.1
$324.61

651
1007683
1-3/4 SQUARE TUBE ROLLS FOR R-M7
Mfg. item #: 1007683
BAISSTR-M7-4{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
$277.40

651
