Baileigh Vertical Mill/Drill Presses

VMD-828G - VERTICAL MILL DRILL VMD-931G - VERTICAL MILL DRILL
VMD-828G  Vertical Mill Drill VMD-931G  Vertical Mill Drill

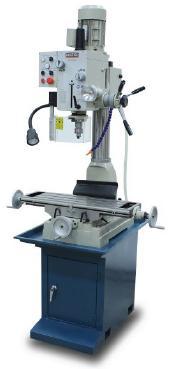

VMD-828G - VERTICAL MILL DRILL

VMD-828G - VERTICAL MILL DRILL

Dont have the space for both a gear-driven drill press and a milling machine? The VMD-828G combines 2 functions in 1 space-efficient machine. This mill drill lets you set the right speed for a given application, providing greater control and extending tooling life.

Features:

  • 2 hp motor runs on 110-volt power and will work almost any site.
  • 1.5 inch maximum drilling capacity. Includes 29 x 8 inch milling-style table which expands the machine’s possible uses.
  • Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
  • Rigid base and very wide cast column adds to machines strength and eliminates flexing when milling or drilling at full capacity.
  • Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.
  • Backed by a 1-year warranty and lifetime technical support by phone from our team of experienced reps
Specifications
Item Number VMD-828G
Spindle Speeds 90, 210, 345, 670, 1180, 1970 RPM
Table Size 28.75 x 8.25 inch
Motor 2 hp
X Axis Travel 19-1/2 inch
Y Axis Travel 9 inch
Spindle Nose to Base 16.14 inch
Spindle Stroke 4-3/4 inch
Spindle Taper R8
T Slots 0.550 inch
Coolant Pump 1/8 hp
Power 110V
Shipping Weight 710 lbs.
Drill Capacity 1.5 inch
Spindle Travel 4.75 inch
Shipping Dimensions 60 x 44 x 48 inch
specifications subject to change without notice

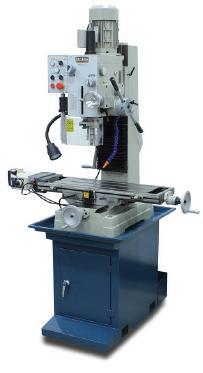

VMD-931G - VERTICAL MILL DRILL

VMD-931G - VERTICAL MILL DRILL

Ever wish you had a milling table on your drill press? Thats why we came up with the VMD-931G. Unlike most milling machine-drill combinations, this multi-functional vertical mill drill lets you select the right speed to suit your application and cut down on tooling wear and tear.

Features:

  • 2 hp motor runs on 110 volt single-phase power, optimal for any shop, garage, or educational institution.
  • 1.75 inch maximum drilling capacity.
  • 31.5 x 9.45 inch milling-style table enables you to tackle a wider variety of projects (with the right tooling).
  • Table incorporates an X-axis power feed to make those longer cuts accurately.
  • Gear-driven head swivels 90 deg left and right.
  • You can choose from 6 speeds to accommodate each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
  • Wide steel column eliminates flex when you’re milling or drilling at full capacity.
  • Heavy-duty base, made from a rigid iron casting, adds to the machine’s strength and minimizes vibrations.
  • Comes standard with a coolant system, R8 spindle taper, and a flexible halogen light.
  • Covered by a 1-year warranty and lifetime technical support by phone from our team of knowledgeable reps.
Specifications
Item Number VMD-931G
Table Size 31.5 x 9.45 inch
Head Miter 90 deg Left and Right
Motor 2 hp
X Axis Travel 22 inch
Y Axis Travel 7.48 inch
Spindle Nose to Table 17.32 inch
Spindle Speed 90,210,345,670,1180,1970 RPM
Spindle Stroke 4.75 inch
Spindle Taper R8
T Slots 0.55 inch
Coolant Pump 1/8 hp
End Mill Size 1.25 inch Max
Power 110V
Shipping Weight 710 lbs
Drill Capacity 1.5 inch
Spindle Travel 4.75 inch
Shipping Dimensions 69 x 44 x 70 inch
specifications subject to change without notice



Models
VMD-828G 110V GEAR DRIVEN MILL AND DRILL, INCLUDES STAND, COOLANT SYSTEM, WORK LIGHT, AND R8 SPINDLE, 8 X 28 TABLE
VMD-931G 110V GEAR DRIVEN MILL AND DRILL, INCLUDES STAND, COOLANT SYSTEM, WORK LIGHT, POWER X, AND R8 SPINDLE, 9 X 31 TABLE



BA9-1020692
VMD-828G; ROUND COLUMN GEARED HEAD MILL AND DRILL, INCLUDES STAND, 2HP, 110V, SINGLE PHASE **SHIPS LTL FREIGHT TURCK, WGT = 740 LBS & MADE IN CHINA

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOITMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-1020692
BAIVMD-828G
lease to own for as little as:$87 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$4,449.00

8
BA9-1020693
VMD-931G; SQUARE COLUMN GEARED HEAD MILL AND DRILL, INCLUDES STAND & X-POWERFEED 2HP, 110V, SINGLE PHASE **SHIPS LTL FREIGHT TURCK, WGT = 815 LBS & MADE IN CHINA

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOITMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-1020693
BAIVMD-931G
lease to own for as little as:$116 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$5,999.00

8
