Baileigh Entry Level Metal Lathes



PL-1236E Metal Lathe

PL-1236E-DRO Metal Lathe

Baileigh Metal Lathe PL-1340E PL-1236E-DRO Metal Lathe
 PL-1236E Metal Lathe  PL-1236E-DRO Metal Lathe  PL-1340E Metal Lathe  PL-1440E Metal Lathe

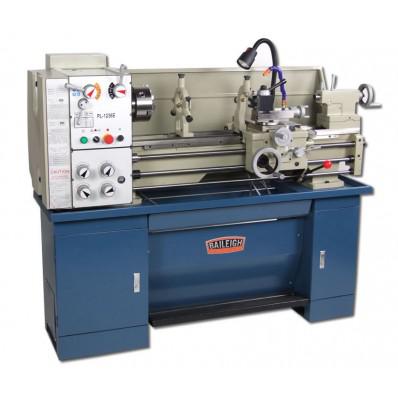

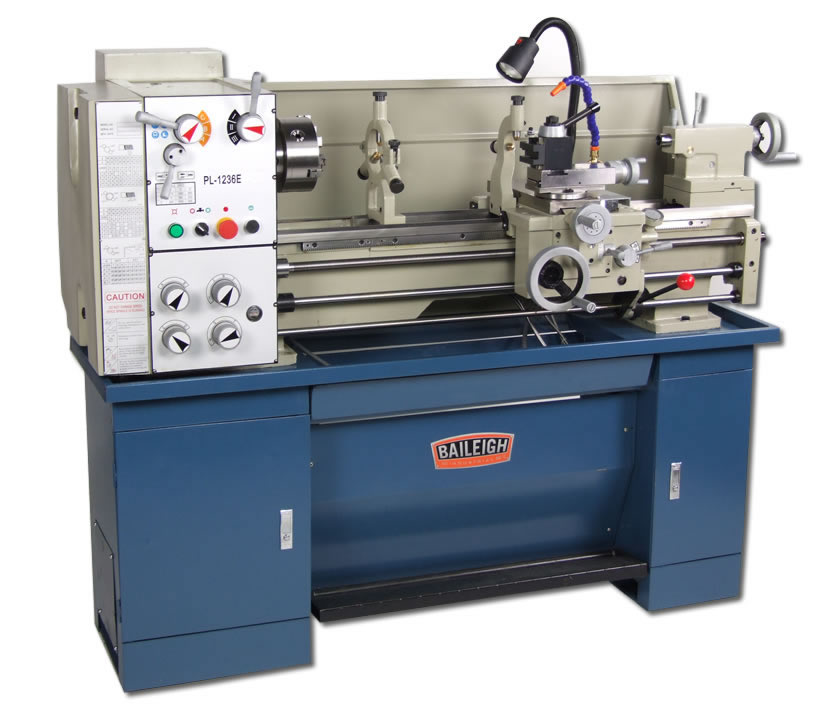

PL-1236E Metal Lathe

Metal Lathe PL-1236E

The PL-1236E is a great metal lathe for anyone that is looking an economical lathe that is high in quality and features. Like all Baileigh Industrial lathes, the PL-1236E gear head metal lathe has an integrated gear system that allows for taping, turning, and polishing with a range of speeds from 70 to 1400 RPM.

The PL-1236E is built to last with only top quality components and all ways are ground and hardened to ensure long life. The Baileigh Industrial PL-1236E metal lathe is powered by a 220v system.

As far as entry level metal lathes go, this one has all the features of the more expensive models. The included accessories are, three and four jaw chucks, steady rest, follow rest, face plate, foot brake, coolant system, and halogen work light.

For more information on PL-1236E, or any of the other Baileigh Industrial metal lathes, please contact a Representative

Specifications
Model PL-1236E-1.0
Sleeve Travel (in) 4
Spindle Bore (in) 1.50
Spindle Bore Taper Morse #5
Sleeve Taper Morse #3
Sleeve Diameter (in) 1.250
Range Of Inch Threads 4 - 56 T.P.I.
Metric Thread Range 0.4 - 7 mm
Spindle Nose (in) D1-4
Travel Of Cross Slide (in) 5.312
Travel Of Top Slide (in) 3.250
Width Of Bed (in) 7.125
Spindle Speed 9 (70 - 1400 rpm)
Swing In Gap (in) 17
Swing Over Bed (in) 12
Swing Over Cross Slide (in) 7.625
Longitudinal Feed Range (in) 0.002 - 0.0548/rev
Lead Screw Thread Pitch 8 T.P.I.
Length Of Gap (in) 6
Max. Tool Selection (in) .625 x .625
Cross Feed Range (in) 0.007 - 0.0187/rev
Power 220V, 1-phase
Shipping Weight 1,232 lbs.
Distance Between Centers 36 inch
Shipping Dimensions (in) 67 x 31 x 60

specifications subject to change without notice.

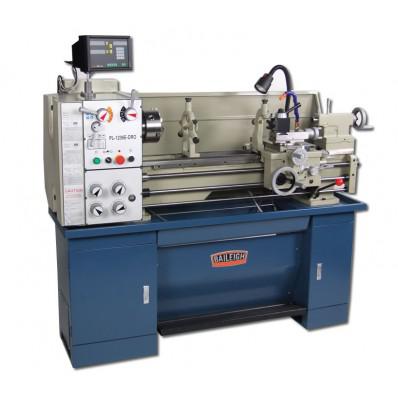

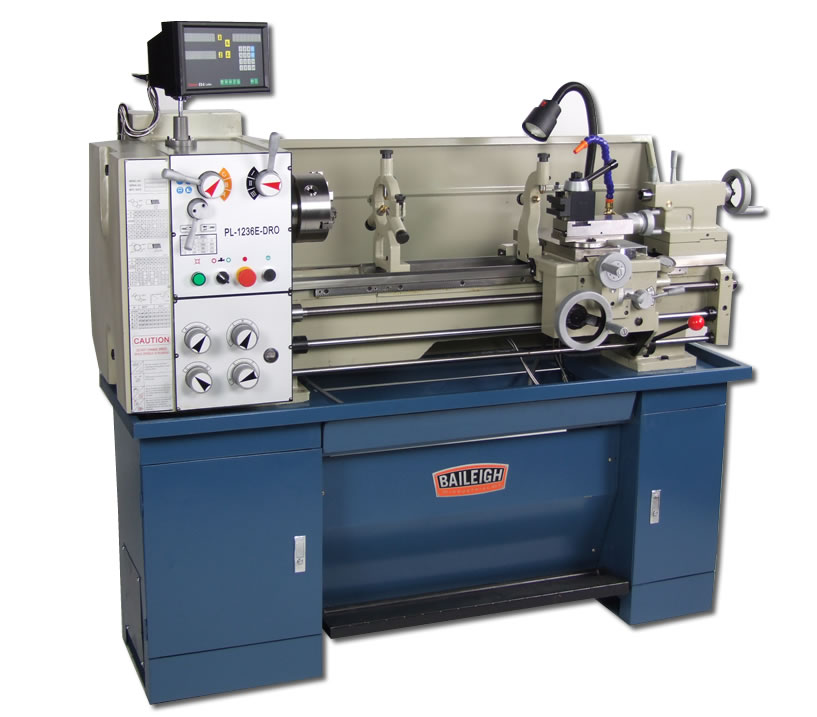

PL-1236E-DRO Metal Lathe Metal Lathe PL-1236E-DRO

With the same working base as the versatile PL-1236E lathe, the PL-1236E-DRO takes the platform one step further by adding an industrial grade digital readout system for improved accuracy and efficiency. The PL-1236E-DRO is still a great metal lathe for anyone that is looking an economical lathe that is high in quality and easy to use.

Powered by a 220v system the Baileigh Industrial PL-1236EDRO can operate in just about any shop. Because of this, as well as the integrated digital readout, the PL-1236E-DRO is the perfect choice for small fabricators, schools, or garages.

The PL-1236E-DRO has an easy to use gear system that allows for taping, turning, and polishing with a range of 9 speeds from 70 to 1400 RPM. To ensure that all cuts are precise, all ways are ground and hardened to ensure long life. They also have adjustable gibs to make sure they slide as free as possible with no binding.

The PL-1236E-DRO lathe is packed with feature that make this a winning lathe, these features include, digital read out, three and four jaw chucks, steady rest, follow rest, face plate, foot brake, coolant system, and halogen work light.
Specifications
Model PL-1236E-DRO-1.0
Sleeve Travel 4 inch
Spindle Bore 1.50 inch
Spindle Bore Taper Morse #5
Sleeve Taper Morse #3
Sleeve Diameter 1.250 inch
Range Of Inch Threads 4 - 56 T.P.I.
Metric Thread Range 0.4 - 7 mm
Spindle Nose D1-4 inch
Travel Of Cross Slide 5.312 inch
Travel Of Top Slide 3.250 inch
Width Of Bed 7.125 inch
Spindle Speed 9 (70 - 1400 rpm)
Swing In Gap 17 inch
Swing Over Bed 12 inch
Swing Over Cross Slide 7.625 inch
Longitudinal Feed Range 0.002 - 0.0548 inch/rev
Lead Screw Thread Pitch 8 T.P.I.
Length Of Gap 6 inch
Max. Tool Selection .625 x .625 inch
Cross Feed Range 0.007 - 0.0187 inch/rev
Power 220 V, 1-phase
Shipping Weight 1,316 lbs.
Distance Between Centers 3666
Shipping Dimensions 67 x 31 x 60 inch

specifications subject to change without notice.

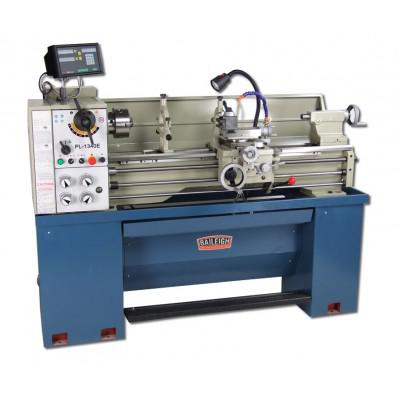

Baileigh Metal Lathe PL-1340E

Metal Lathe PL-1340E

Baileigh Industrials PL-1340E metal working lathe offers the perfect solution for small to medium sized machine shops as well as schools that are looking to upgrade outdated equipment without using up their budget. As with all Baileigh Industrial gear head metal lathes, the PL-1340E comes standard with precision ground and hardened ways offering years of tight tolerances. The castings on the PL-1340E are also of the highest quality to ensure smooth chatter free cuts to prolong tooling life

The Baileigh Industrial PL-1340E entry level lathe is powered by 220v single phase. It also has 8 spindle speed that range from 70 to 2000 rpm. The Baileigh Industrial PL-1340E metal working lathe includes many standard features that the others do not; digital read out, three and four jaw chucks, steady rest, follow rest, face plate, foot brake, coolant system, halogen work light, quick change tool post, and much more making this a great value for anyone.

Like all Baileigh Industrial products, this metal lathe machine is designed using the highest quality components. Using only the highest quality components ensures years of worry free operation.
Specifications
Model PL-1340E-1.0
Sleeve Travel 4.5 inch
Spindle Bore 1.50 inch
Spindle Bore Taper Morse #5
Sleeve Taper Morse #3
Sleeve Diameter 1.65 inch
Range Of Inch Threads 4 - 56 T.P.I.
Metric Thread Range 0.4 - 7 mm
Spindle Nose D1-4 inch
Travel Of Cross Slide 6.29 inch
Travel Of Top Slide 2.68 inch
Width Of Bed 7.375 inch
Spindle Speed 8 (70 - 2000 rpm)
Swing In Gap 18.750 inch
Swing Over Bed 13 inch
Swing Over Cross Slide 7.750 inch
Longitudinal Feed Range 0.002 - 0.0548 inch/rev
Lead Screw Thread Pitch 8 T.P.I.
Length Of Gap 5 inch
Max. Tool Selection .625 x .625 inch
Cross Feed Range 0.002 - 0.0548 inch/rev
Power 220 V, 1-phase
Shipping Weight 1,430 lbs.
Distance Between Centers 3667
Shipping Dimensions 79 x 33 x 59 inch

specifications subject to change without notice.

PL-1236E-DRO Metal Lathe Metal Lathe PL-1440E

The PL-1440E metalworking lathe from Baileigh Industrial raises the bar on what entry level lathes should be. The PL-1440E is the best choice for small to medium sized shops just getting into the machining aspect of fabrication or schools just looking for a high quality metal lathe at a great price. As with all Baileigh gear head metal lathes, the PL-1440E comes standard with precision ground and hardened ways offering years use without losing the lathes tight tolerances.

The Baileigh Industrial PL-1440E metalworking lathe runs on a 220V single phase motor that allows the lathe to be used almost anywhere. Combine that with the 8 different spindle speed the PL-1440E offers and there arent many jobs that this entry level lathe cant handle.

The PL-1440E includes many features that the others do not; digital read out, three and four jaw chucks, steady rest, follow rest, face plate, foot brake, coolant system, halogen work light and much more round out this great value. Another great aspect of the PL-1440E is that no assembly is required to get up and running. Just open the crate, wire it up and enjoy all the great benefits that a new metal lathe can offer.

Like all Baileigh Industrial metal lathes, the PL-1440E is built using only the highest quality components. Using only the highest quality components ensures years of worry free operation. For more information on the PL-1440E metalworking lathe contact a representative today.
Specifications
Model PL-1440-1.0
Spindle Speeds 90 - 1800 rpm
Spindle Bore 1.50 inch
Spindle Nose D1-4 inch
Threads Imperial Qty Speed 44 / 4-112 T.P.I.
Threads Metric Qty Speed 22 / .45-7.5 mm
Spindle Bore Taper Morse #5
Sleeve Taper Morse #3
Sleeve Diameter 1.772 inch
Tailstock Quill Taper Morse #3
Tailstock Quill Travel 4.72 inch
Bed Length 40 inch
Bed Width 7.086 inch
Main Motor 3 hp
Longitudinal Feeds Imperial Qty Speed 0.0012 - 0.0294 inch/rev.
Lead Screw Diameter 0.866 inch
Lead Screw Thread Pitch 4 T.P.I.
Max. Swing Over Bed 14 inch
Max. Swing Over Cross Slide 8.6 inch
Max. Swing In Gap Dia 19.9 inch
Cross Feeds Imperial Qty Speed 0.0003 - 0.01 inch/rev.
Distance Between Centers 40 inch
Feed Rod 0.708 inch dia.
Power 220V / 1-phase
Shipping Weight 1,936 lbs.
Shipping Dimensions 76 x 30 x 61 inch
Dimensions L x W x H 76 x 30 x 61 inch

specifications subject to change without notice.

Models
PL-1236E 220V SINGLE PHASE LATHE, 12 SWING. 36 LENGTH
PL-1236E-DRO 220V SINGLE PHASE LATHE, 12 SWING. 36 LENGTH DRO
PL-1340E 220V SINGLE PHASE LATHE, 13 SWING. 40 LENGTH. INCLUDES DRO
PL-1440E 220V SINGLE PHASE LATHE, 14 SWING. 40 LENGTH. INCLUDES DRO



BA9-1016616
220V 1PHASE LATHE, 12 SWING. 36 LENGTH / MADE IN CHINA / WGT = 1395 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1016616) ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1016616
BAIPL-1236E
lease to own for as little as:$150 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$8,148.00

11
BA9-1016617
220V 1PHASE LATHE, 12 SWING. 36 LENGTH DRO / MADE IN CHINA / WGT = 1420 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1016617) ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1016617
BAIPL-1236E-DRO
lease to own for as little as:$163 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$8,845.00

11
BA9-1016618
220V 1PHASE LATHE, 13 SWING. 40 LENGTH. INCLUDES DRO / MADE IN CHINA / WGT = 1515 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1016618) ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1016618
BAIPL-1340E
lease to own for as little as:$201 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$11,059.00

11
BA9-1016623
220V 1PHASE LATHE, 14 SWING. 40 LENGTH. INCLUDES DRO / MADE IN CHINA / WGT = 1580 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1016623) ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: BA9-1016623
BAIPL-1440E
lease to own for as little as:$276 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$14,999.00

11
