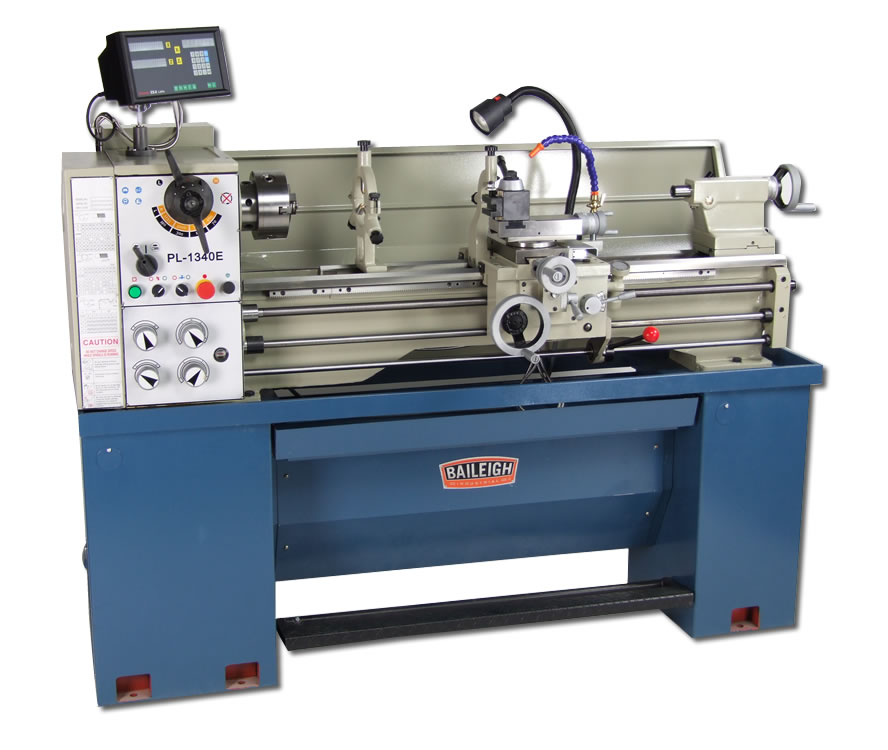

Baileigh PL-1340E Metal Lathe

Baileigh Metal Lathe PL-1340E



Baileigh Metal Lathe PL-1340E

Baileigh Industrials PL-1340E metal working lathe offers the perfect solution for small to medium sized machine shops as well as schools that are looking to upgrade outdated equipment without using up their budget.  As with all Baileigh Industrial gear head metal lathes, the PL-1340E comes standard with precision ground and hardened ways offering years of tight tolerances.  The castings on the PL-1340E are also of the highest quality to ensure smooth chatter free cuts to prolong tooling life.

The Baileigh Industrial PL-1340E is powered by a 110/220v dual voltage system that allows the operator to choose what voltage will suit their needs the best.  It also has 8 spindle speed that range from 70 to 2000 rpm.  The Baileigh Industrial PL-1340E metal working lathe includes many features that the others do not; digital read out, three and four jaw chucks, steady rest, follow rest, face plate, live center, foot brake, coolant system, halogen work light, quick change tool post, and much more making this a great value for anyone.

Like all Baileigh Industrial products, this metal lathe is designed using the highest quality components.  Using only the highest quality components ensures years of worry free operation.
If you would like more information on this or any of the other Baileigh metal lathes, contact your Southern-Tool representative.

Specifications
Model PL-1340E
Sleeve Travel 4.5 inch
Spindle Bore 1.50 inch
Spindle Bore Taper Morse #5
Sleeve Taper Morse #3
Sleeve Diameter 1.65 inch
Range Of Inch Threads 4 - 56 T.P.I.
Metric Thread Range 0.4 - 7 mm
Spindle Nose D1-4 inch
Travel Of Cross Slide 6.29 inch
Travel Of Top Slide 2.68 inch
Width Of Bed 7.375 inch
Spindle Speed 8 (70 - 2000 rpm)
Swing In Gap 18.750 inch
Swing Over Bed 13 inch
Swing Over Cross Slide 7.750 inch
Longitudinal Feed Range 0.002 - 0.0548 inch/rev
Lead Screw Thread Pitch 8 T.P.I.
Length Of Gap 5 inch
Max. Tool Selection .625 x .625 inch
Cross Feed Range 0.007 - 0.0187 inch/rev
Power 110 / 220V, 1-phase
Shipping Weight 1,430 lbs.
Distance Between Centers 3667
Shipping Dimensions 79 x 33 x 59 inch

specifications subject to change without notice

There are no listed accessories.

Digital read out included

PL-1340E
220V SINGLE PHASE LATHE, 13 SWING. 40 LENGTH. INCLUDES DRO
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: PL-1340E
BAIPL-1340E
lease to own for as little as:$121 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,170.25
