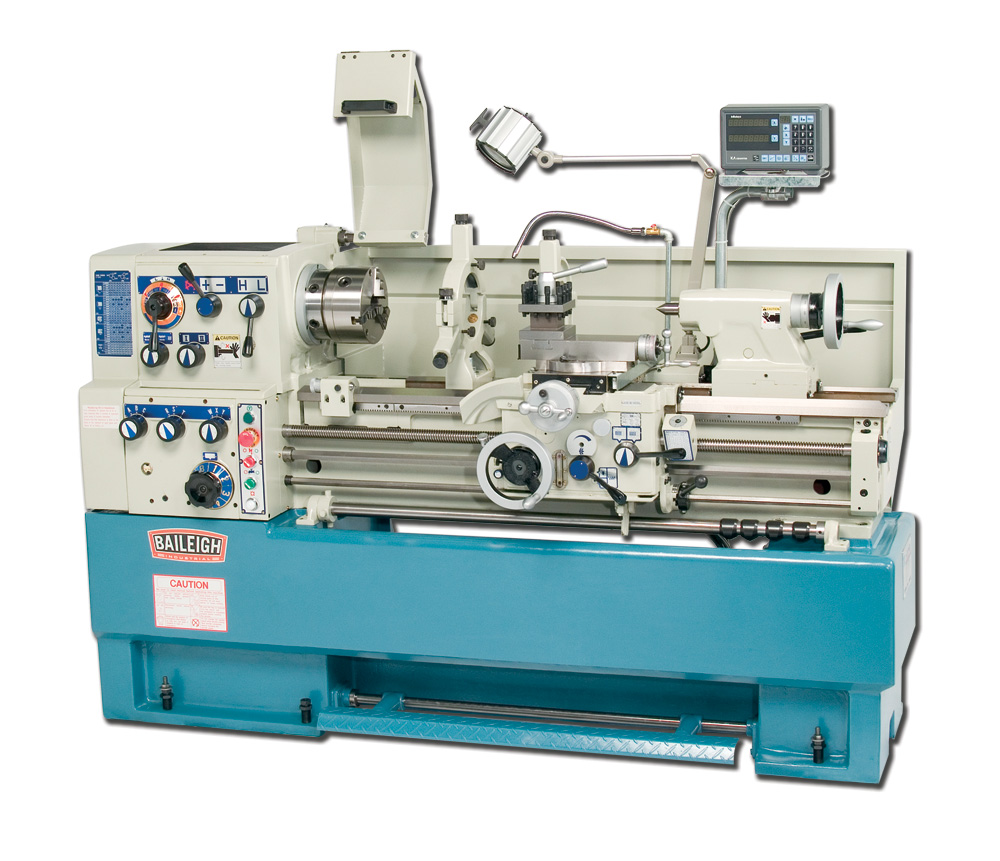

Baileigh PL-1640 Precision Metal Lathe

Baileigh Precision Lathe PL-1640

Made In Taiwan

The PL-1640 metal working lathe is the perfect combination of size and power.  This precision lathe features a 16 inch swing and 40 inch between centers and has features that will allow your shop to grow for years.

The PL-1640 is built to Baileigh industrials high standards and has everything that a machine shop could want.  The PL-1640 has a full cast iron base that is integrated into the main frame of the lathe, making this one of the most rigid lathes on the market.  It is powered by a 7.5 hp motor and can turn rpms form 30 to 2000 through its 12 speeds.  The PL-1640 metal working lathe is built to withstand years of use in any metal working shop and features precision ground and hardened ways.

The PL-1640 comes standard with a factory installed Mitutoyo DRO (digital read out) for making precise cuts, halogen light, a three jaw chuck, steady rest and follow rest.  All this in one complete package.  For more information on this or any of the Baileigh Industrial metal lathes, contact our  representative.

Specifications
Model PL-1640
Speed 30 - 2000 rpm
Spindle Bore 2.0625 inch
Threads Diametrical Qty Speed 32 / 4 - 32 D.P.
Threads Imperial Qty Speed 40 / 2 - 56 T.P.I.
Threads Metric Qty Speed 53 / .4 - 14 mm pitch
Threads Module Qty Speed 44 / .4 - 7 M.P.
Spindle Taper Sleeve Morse #4
Spindle Taper Nose Morse #6
Tailstock Quill Dia 2.125 inch
Tailstock Quill Taper Morse #4
Tailstock Quill Travel 4.75 inch
Compound Rest Width 4.33 inch
Center Length 40 inch
Center Height 7.086 inch
Compound Travel 4.75 inch
Bed Height 12.20 inch
Bed Length 74.75 inch
Bed Width 11.81 inch
Longitudinal Feeds Metric Qty Speed 40 / .032 - .640 mm / rev.
Main Motor 7.5 hp
Longitudinal Feeds Imperial Qty Speed 40 / .0012 - .0252 inch / rev.
Lead Screw Diameter 1.25 inch
Lead Screw Thread Pitch 4 T.P.I.
Max. Swing In Gap Length 6.125 inch
Max. Swing Over Bed 16 inch
Max. Swing Over Cross Slide 9.45 inch
Max. Swing In Gap Dia 23.42 inch
Cross Feeds Imperial Qty Speed 40 / .0006 - .0126 inch / rev.
Cross Feeds Metric Qty Speed 40 / .015 - .320 mm / rev.
Cross Slide Travel 9 inch
Cross Slide Width 7.08 inch
Cutting Tool Max Section .625 x .625 inch
Feed Rod .708 dia.
Power 220V / 3-Phase
Shipping Weight 4,400 lbs.
Shipping Dimensions 91 x 65 x 44 inch
specifications subject to change without notice



There are no listed accessories.

PL-1640
220V 3PHASE 7-1/2 HP PRECISION LATHE. 16 SWING. 40 LENGTH.
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: PL-1640
BAIPL-1640
lease to own for as little as:$370 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$19,280.25
