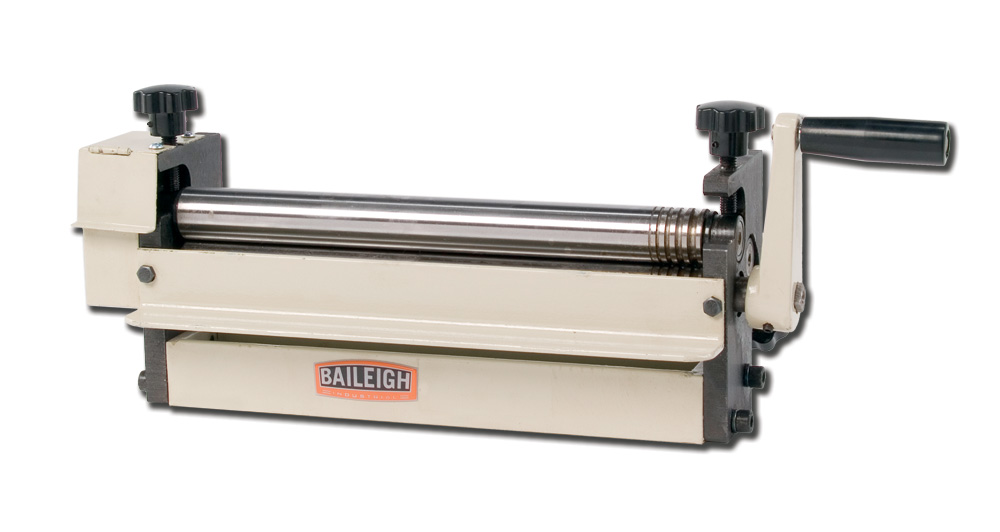

Baileigh SR-1220M Manual Slip Roll





s-h alt

Have you ever had a small project that your larger slip roll wouldnt work for?   That is where The SR-1220M slip roll from Baileigh Industrial really shines.  But dont be fooled by the SR-1220M slip rollers small stature, it can handle the job just like its larger brothers.  Whether your metal forming in your garage or in a large fabrication shop, the SR-1220M is built for years of use.

The SR-1220M slip roller features a 12 in forming width, and can bend 20 gauge mild steel at its full width.   The SR-1220M manual slip roll has a 1:1 ratio for rolling, this is extremely important of you are doing precise work that needs the utmost accuracy.  Also included with the SR-1220M, are 5 wire grooves of varying sizes.  The versatility of the SR-1220M is also apparent in the way that you can mount it.  It can be bench mounted or vise mounted with the included mount.

Specifications
Model SR-1220M
Forming Width
12 in
Capacity Mild Steel
20 ga
Upper Roll Diameter
1.25 in
Minimum Forming Diameter
1.875 in
Wire Grooves
Yes
5 Wire Grooves
.250/.145/.125/.080/.050
Gear Ratio
1:1
Power Requirement
Manual
Shipping Dimensions(L/W/H)
22 in / 10 in / 11 in
Shipping Weight
32 lbs
There are no listed accessories.

BA9-1007290
MANUAL SLIP ROLL, 12 WIDTH, 20 GAUGE MILD STEEL CAPACITY INCLUDES 5 WIRE ROLLS / MADE IN CHINA / WGT = 31 LBS / SHIPS UPS OR FEDEX (SKU 1007290)
Mfg. item #: BA9-1007290
BAISR-1220M
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
$396.25

2
Freight policies for items on this page:
8: Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment
Free freight offers apply only to deliveries to the lower 48 states by truck freight or ground UPS. Liftgate and non-commercial delivery charges may be extra.
