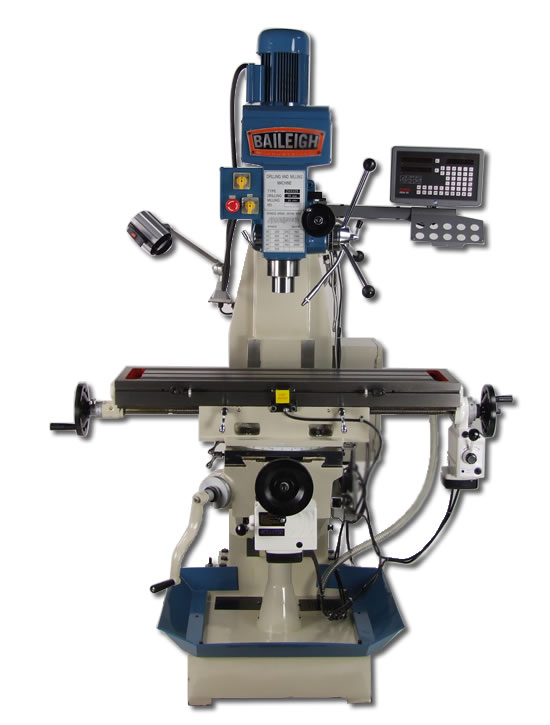

Baileigh VM-931E Vertical Milling Machin

Click Image to Enlarge

Baileighs line of vertical milling machines are the perfect fit for any machine shop or tool room. All of our vertical mills come with NST 30 or 40 spindles for an extra rigid transfer of power from the inverter driven (most are Yasakawa) head. Meaning no pulleys and gear drives but only offering solid power to the cutter for heavier cuts and longer tooling life. The inverter drives also means that each model is variable speed.

Power drives are on the X, Y, and Z as well as Digital Read Outs (DROs are Mitutoya in most cases) on several axis allowing for smoother chip removal, hands free operation, and tight tolerances. On most models of our milling machines there is an Air Draw Bar system to easily load and unload tooling.

Heavy Meehanite castings and hardened and ground ways treated with Turcite B coatings ensure heavier cuts and offers very tight tolerances for decades of service. Each milling machine is finished off nicely with way skirts, coolant skirts and a Halogen Light for good visibility. A Baileigh vertical knee mill is finished properly and all features are factory installed offering the customer the confidence that our milling machines are of a higher quality than most.

Specifications
Model VM-1039E
Drilling Capacity
2 in
Tapping Capacity
M16
Face Milling Capacity
3 in
Spindle Taper
R8
Spindle Travel
4.9 in
X-Axis Travel
17.7 in
Y-Axis Travel
11 in
Table Size
39 in x 10 in
T-Slots
5/8 in
Spindle Speeds
270-2400 RPM
Motor
1-1/2HP
Coolant Pump
1/8HP
Shipping Size
49 in x 44 in x 84 in
Shipping Weight
1672

There are no listed accessories.

Call for price. BAIVM-1039E
