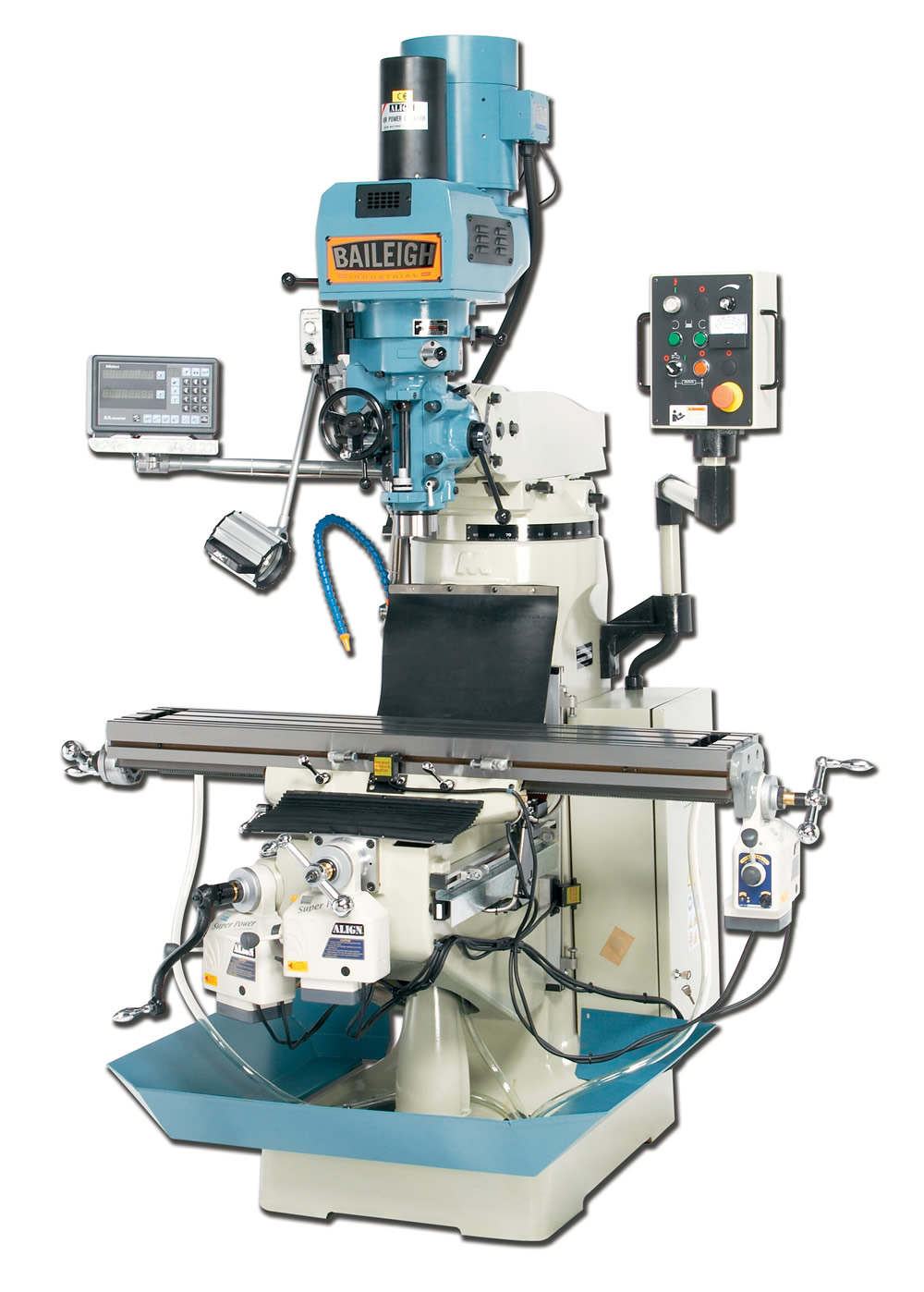

Baileigh VM-949 Vertical Milling Machine

Click Image to Enlarge

Baileighs VM-949 is a great vertical milling machine for any small to medium machine shop or fabrication shop.  Like all Baileigh machines, its packed with tons of standard features that are options on most other brands.

To make the VM-949 extra rigid we start with a heavy Meehanite Casting and couple it to extra hardened ways that are coated with a Turcite B coating for longevity and better tolerances.  The Spindle is a NST 40 spindle instead of the industry standard R-8.  This heavier spindle gives rigidity to the head and deploys less vibration reducing chatter.   All of this allows for more chips to be made in one pass and it also allows the machine and tooling to last much longer.

For ease of operation this vertical mill has powered X, Y and Z axis.  The X and Y axis utilizes a Mitutoya DRO – digital read out for positioning down to 1/10 of a thousandth of an inch.  The VM-949 turret mill is powered by a Yasakawa inverter drive, meaning the machine has variable speeds.   Thus to increase or decrease the speed you simply turn the speed potentiometer to the desired RPM as displayed on the digital readout.  By eliminating the gear and pulley transmission the machine has almost no slop which again reduces chatter, prolongs cutter life, and prolongs machine life.

Specifications
Model VM-949
Table Size (L/W)
49in / 9 in
Table Load Capacity
440 lbs
T-slot Size
3 at .625 in
Travel - Manual X-axis
28.5 in
Travel - Manual Y-axis
12 in
Travel - Manual Z-axis
16 in
Travel - Auto X-axis
25.19 in
Travel - Auto Y-axis
12 in
Travel - Auto Z-axis
16 in
Spindle Taper
NST40
Spindle Speed
60 - 4200 rpm
Spindle Feed Per Rev.
.0015 in / .003 in / .005 in
Spindle Head Swivel
45 deg. (R&L / F&R)
Spindle Travel
5 in
Spindle Nose to Table (min/max)
2.24 in / 18.22 in
Spindle Center to Column (min/max)
8.38 in / 20.98 in
Cross Travel of Ram
12.59 in
Horizontal Rotation
360 deg.
Motor Spindle
3 hp
Motor Coolant Pump
1/8 hp
Power Requirement
220v / 1 or 3 phase
Shipping Dimensions
55 in / 57 in / 83 in
Shipping Weight
2100 lbs
There are no listed accessories.

Call for price. BAIVM-949
