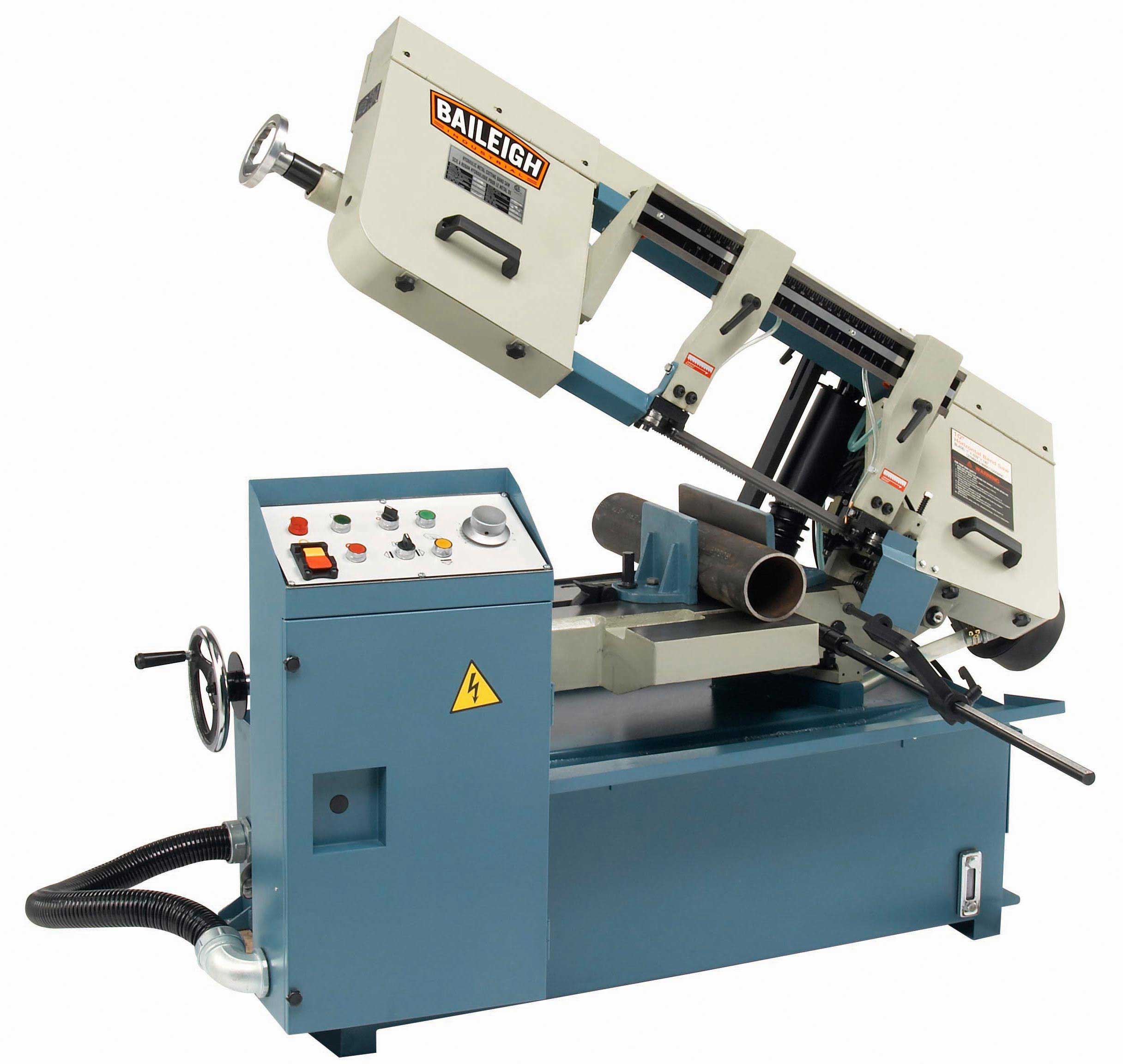

Baileighs BS-300SA horizontal band saw utilizes a sturdy cast iron bow, pivot assembly, and vise to ensure straight cuts through ferrous or non-ferrous metals. The cutting arms are made from cast iron as well and hold hardened roller bearings and Tungston carbide guides to further ensure straight cuts time and time again. This band saw has a user friendly operator control panel that includes important controls such as down feed cutting pressure.
This band saws cutting bow accepts a 1 in saw blade for very straight cuts and has a tension control device so the operator can view and adjust accordingly, increasing the life of the blades and bearings. The powerful coolant pump and brass wire wheel work to cool down the saw blade teeth and clean the blade for it's next cut.
Being a semi-automatic band saw the machine uses hydraulics to clamp the material in the vise, and feed through the material, and returns the head after the cut. This band saw is the perfect for small to medium sized fabricators and machine shops.
Specifications | |
---|---|
Model | BS-300SA |
Capacity Round (90/45deg)
|
9.84 in/ 7.5 in
|
Capacity Square (90/45deg)
|
9.84 in / 7.5 in
|
Capacity Rectangular (90deg)
|
9.84x16.33 in/9.84x7.48 in
|
Blade Size (H/W/L)
|
1 in / .035 in / 129.92 in
|
Blade Speed (fpm)
|
66/131/167/233
|
Blade Guide
|
Carbide / Roller
|
Miter Angle
|
0 â 45 deg
|
Miter Adjustment
|
Vice |
Table Height
|
30.7 in
|
Descent Control
|
Pressure Assist Hydraulic
|
Return | Hydraulic |
Drive |
Belt/Pulley
|
Motor |
2 hp
|
Power Requirement
|
220v / 1 phase
|
Shipping Dimensions (L/W/H)
|
70 in / 23 in / 49 in
|
Shipping Weight
|
1250 lbs
|
