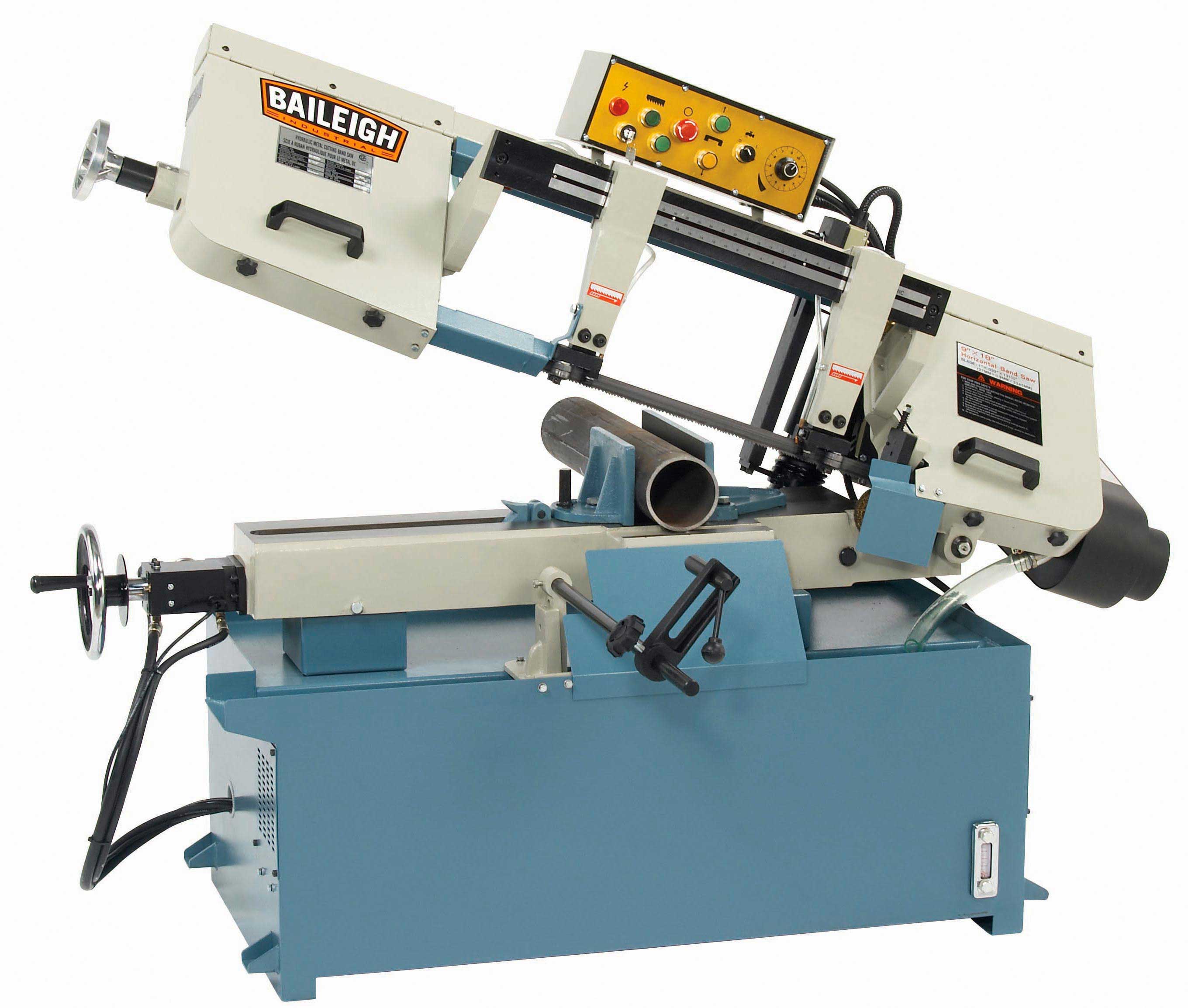

The BS-918SA metal cutting band saw cuts up to 9" round stock utilizing a strong cast iron base and bow. The rigidity of the head allows for straighter cuts and is further assisted by hardened roller bearings and carbide inserts.
This metal cutting band saw is a semi-automatic machine that has a hydraulic clamping vise and down feed. When the cut is complete the saw blade stops and the head automatically returns to the start position and the vise opens ready for the next cut. A semi-automatic metal band saw offers more production than manual models.
Specifications | |
---|---|
Capacity Round (90/45deg)
|
8.85”/8.46”
|
Capacity Square (90/45deg)
|
8.85”/8.46”
|
Capacity Rectangular (90deg)
|
8.86”x16.93”/8.86”x11.61”
|
Blade Size (H/W/L)
|
1” / .035” / 131.69”
|
Blade Speed (fpm)
|
82-259
|
Blade Guide
|
Carbide / Roller
|
Miter Angle
|
0 – 45 deg
|
Miter Adjustment
|
Vice |
Table Height
|
25.4”
|
Descent Control
|
Pressure Assist Hydraulic
|
Return | Hydraulic |
Drive |
Belt/Pulley
|
Motor |
2 hp
|
Power Requirement
|
220v / 1 phase
|
Shipping Dimensions (L/W/H)
|
72” / 30” / 46”
|
Shipping Weight
|
1210 lbs
|
The saw head or bow has a blade tension device that allows bearings and saw blades to last longer. A powerful coolant system cools the blade and washes off chips and is assisted by a brass chip removal wheel. This metal cutting band saw comes standard with a product stop and variable speed. Another quality metal band saw from Baileigh Industrial.
Mfg. item #: BS-918SA
BAIBS-918SA
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
