Baileigh BSV-12 Vertical Bandsaw



Vertical Band Saw BSV-12  Vertical Bandsaw BSV-20VS Vertical Band Saw BSV-24VS
 Vertical Band Saw BSV-12  Vertical Bandsaw BSV-20VS  Vertical Band Saw BSV-24VS

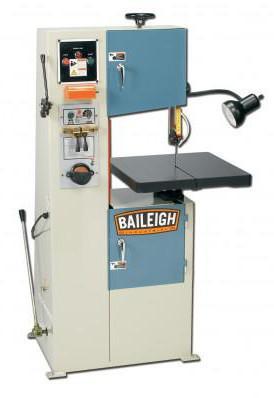

Vertical Band Saw BSV-12S

Made in Taiwan

Horizontal and Vertical Band Saw Catalog

Need a vertical band saw but dont have much room?  Then the BSV-12S from Baileigh Industrial would be the perfect addition to your shop.  The BSV-12S is small in footprint but does not skip on features and is built to the same high quality standards as the rest of Baileigh Industrials vertical band saw line.  The BSV-12S has a fully welded frame and industrial grade components.

The BSV-12S Vertical bandsaw features a 11-3/8 inch throat depth and a 7-3/4 inch material opening.  The table 19 x 19 inch oversized table also pivots 10 degrees front to back and 15 degrees left to right.

The BSV-12S has 4 operating speed ranging from 80 to 319 rpm and a heavy duty 1/2hp motor that operates on 220V single phase power.  When designing the BSV-12S Baileigh Industrial wanted to accommodate most of the popular blade widths ranging from 1/4 to 1/2 inch, allowing even the most intricate cuts.  A blade welder is also included for when you need to get to a middle cut on a project.

Like most Baileigh Industrial products the BSV-12 is typically in stock for quick shipments. Contact a representative for more information on the BSV-12 vertical band saw.

Specifications
Model BSV-12VS
Butt-Welder Capacity (Blade Width) .51 inch
Welder Capacity .51 inch
Slant of Table 10 degree F/ Rear, 15 degree L/R
Motor .5 hp
Maximum Thickness 7.75 inch
Throat Depth 11.38 inch
Table Size 19.75 x 19.75 inch
Blade Width 1 x 4 - 1 x 2 inch
Blade Length 100.39 inch
Blade Speed 80 - 319 rpm
Blade Thickness .032 inch
Power Requirements 220V / 1-phase
Shipping Weight 441 lbs.
Shipping Dimensions 36 x 27 x 61 inch

specifications subject to change without notice.



Vertical Bandsaw BSV-20VS

The BSV-20VS vertical band saw adds to an already impressive lineup of vertical bandsaws for Baileigh Industrial.  Not only does the BSV-20VS bridge the gap between the popular BSV-16 and the huge capacity of the BSV-24, but adds a variable speed pulley. The BSV-20VS vertical band saw is one of the most useful and versatile tools you will ever buy. Because of the BSV-20VSs true variable speed, this vertical bandsaw can used to cut, wood, metal, and even plastic.  You can not only use them to make straight cuts but also, because of the vertical blade, those awkward curved cuts too.  The BSV-20VS is a must for any fabrication shop.

The BSV-20VS vertical band saw also includes, Saw blade shear, and a saw blade butt welder with a built in grinder for finishing the weld joint.  And to make sure that your cuts are straight and repeatable, Baileigh Industrial is also including a rip fence and protractor.  Like the rest of the Baileigh Industrial vertical bandsaws, the BSV-20VS is typically in stock for fast deliveries.

Like most Baileigh Industrial products the BSV-20VS is in stock for quick shipments.  Contact a Baileigh Industrial representative for more information on the BSV-20VS vertical band saw.

Specifications
Model BSV-20VS
Butt-Welder Capacity (Blade Width) .813 inch
Slant of Table 5 degree Left, 15 degree Right
Motor 2 hp
Maximum Thickness 12.375 inch
Throat Depth 20.50 inch
Table Size 26 x 27.50 inch
Power Requirements 220V, 60hz, 1-Phase
Blade Width 1/8 - 3/4 inch
Blade Length 153 inch
Blade Speed 65 - 1640 rpm
Blade Thickness .032 inch
Shipping Weight 1,694 lbs.
Shipping Dimensions 57 x 44 x 85 inch

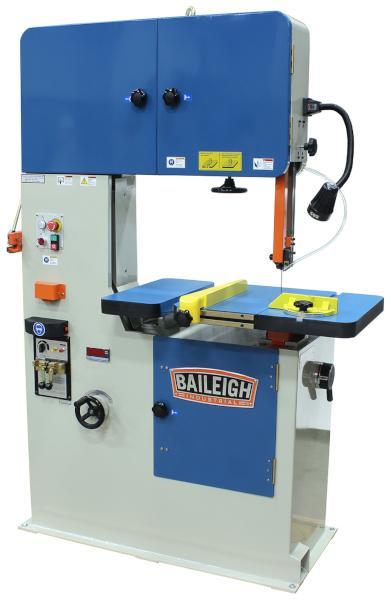

Vertical Band Saw BSV-24VS

Click here to download manual 1

Click here to download manual 2

The BSV-24VS is the largest non-mitering vertical bandsaw in our line up, this metal cutting band saw increases capacity and adds a variable-speed pulley. Make straight and curved cuts with the vertical blade.

Featrues:

  • 2 hp motor runs on 220-volt single phase power.
  • Wide 24 inch throat depth.
  • 13-3/8 inch maximum cutting thickness.
  • Accepts standard 1/8 to 5/8 inch blades.
  • 2 Piece cast iron table can pivot front to back and left to right.
  • Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
  • Variable speed from 65 to 1640 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
  • Change the speed with the hand wheel (just turn right for higher speed, left for lower).
  • Speed scale lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
  • This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
  • Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
  • Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint great for getting to the center of a cut or repairing blades.
  • Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
  • Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
  • Halogen work light lets you see what you’re cutting more clearly.
  • Covered by a 1-year parts warranty.
  • Both the saw and its replacement parts are typically in stock for fast deliveries.
  • Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.

Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.

Specifications
Item Number BSV-24VS
Country of Manufacture Taiwan
Table Size 24.4 x 22.8 inch and 8.5 x 22.8 inch (Two Piece)
Welder Capacity .74 inch
Slant of Table 15 deg F/ Rear, 15 deg L/R
Motor 2 hp
Maximum Thickness 13-3/8 inch
Throat Depth 24 inch
Blade Length 156.29 inch
Blade Speed (fpm) 65 - 1640 Variable Speed
Blade Thickness .032 inch
Power 220V / 1-phase
Shipping Weight 1166 lbs
Shipping Dimensions (Inches) 60x44x91



There are no listed accessories.
1230387
120V VERTICAL BAND SAW 12 THROAT DEPTH, 1HP / MADE IN TAIWAN / WGT = 630 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1230387) ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: 1230387
BAIBSV-12VS
lease to own for as little as:$95 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$4,799.00

56
1230390
VARIABLE SPEED VERTICAL BAND SAW WITH 20 THROAT DEPTH, 220V 60HTZ SINGLE PHASE / MADE IN TAIWAN / WGT = 851 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1230390) ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: 1230390
BAIBSV-20VS
lease to own for as little as:$189 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$9,745.00

56
1230391
230V 1PHASE VERTICAL BAND SAW 24 THROAT DEPTH, 2HP W/ RIP FENCE & GAUGE / MADE IN TAIWAN / WGT = 1025 LBS / SHIPS LTL TRUCK FREIGHT (SKU 1230391) ADD TO CART NOW TO SEE SOUTHERN TOOLS EXCLUSIVE BROTHER-IN-LAW DEAL & FREE SHIPPING ANYWHERE IN THE LOWER 48 STATES
Mfg. item #: 1230391
BAIBSV-24VS
lease to own for as little as:$208 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$10,795.00

56
