Baileigh BSV-16 Vertical Bandsaw

Vertical Bandsaw BSV-16

Made in Taiwan

Horizontal and Vertical Band Saw Catalog

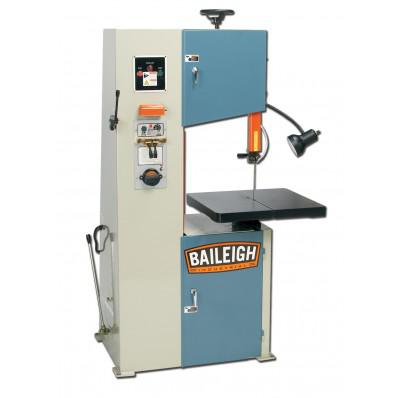

The BSV-16 vertical band saw from Baileigh Industrial is the perfect all around vertical bandsaw for any fabrication shop.  It has many of the same features found on saws for a lot more money.  Although economical the BSV-16 is built rock solid with a fully welded frame and industrial grade components.  The BSV-16 will serve any shop faithfully for years to come.

The BSV-16 features a large 15-3/16 inch throat depth and a 15-1/4 inch material opening.  The large size of the opening will accommodate almost any project that you could think of.   The heavy duty 24 x 22 inch oversized table also pivots 10 degrees front to back and 15 degrees left to right.  A convenient scale is located on the bottom side of the table for quick adjustments when needed.

The BSV-16 uses a 3/4hp motor to turn the blade and has 4 operating speed ranging from 62 to 249 rpm.  The BSV-16 operates on 220V single phase power and includes a blade welder for when you need to get to the middle of a cut on a project.  The designers of the BSV-16 Baileigh Industrial wanted to accommodate most of the popular blade widths, so they made the blade wheel accept blades ranging from 1/4 inch for the most intricate cuts to 5/8 inch for straight cut offs.

Like most Baileigh Industrial products the BSV-16 is in stock for quick shipments.  Contact a representative for more information on the BSV-16 vertical band saw.


Butt-Welder Capacity (Blade Width) .74 inch
Welder Capacity .74 inch
Slant of Table 10 degree F/ Rear, 15 degree L/R
Motor 3 x 4 hp
Maximum Thickness 15.25 inch
Throat Depth 15.188 inch
Table Size 23.75" x 21.75 inch
Blade Width 1 x 4 - 5 x 8 inch
Blade Length 134.65 inch
Blade Speed 62 - 249 rpm
Blade Thickness .032 inch
Power Requirements 220V / 1-phase
Shipping Weight 904 lbs.
Shipping Dimensions 46 x 33 x 75 inch


There are no listed accessories.
Mfg. item #: BSV-16
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
