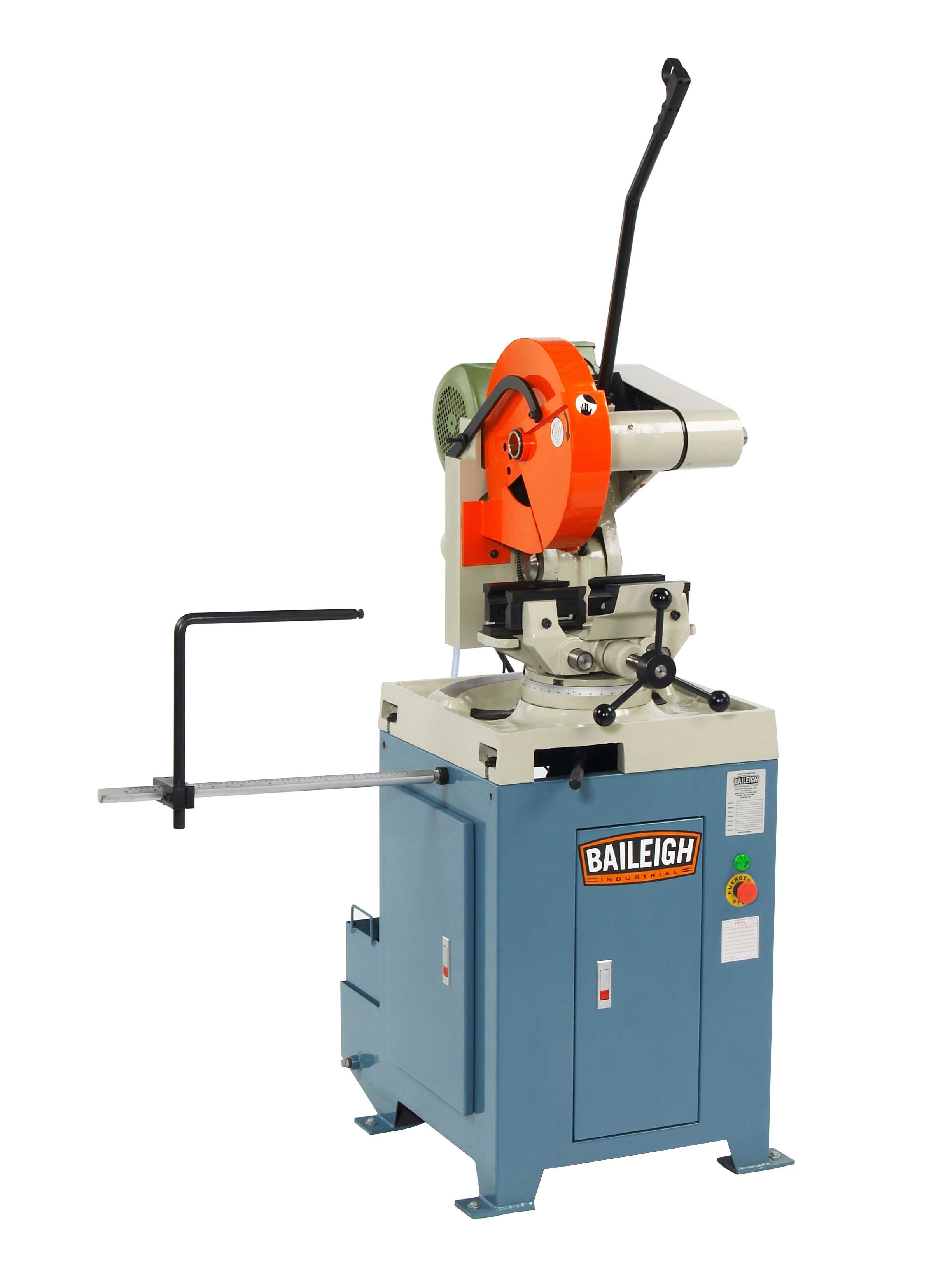

Baileigh CS-355M Cold Saw

Manual Cold Saw CS-355M

Made in Taiwan

pdf logo   Cold Saw Catalog

Do you have the need to cut a lot of non-ferrous material, such as aluminum or copper?  If so then the CS-355M high speed cold saw is a great choice.  The CS-355M has a 5.5hp high speed motor that turns 3200 RPM, which is perfect for cutting those soft metals known for gumming up blades.

The CS-355M is based off of the CS-350M cold saw that has been a staple in the Baileigh Industrial line for a long time.  The only difference between the two is the drive system for the blade, the CS-355M motor drives a pulley system with a belt in order to achieve maximum RPMs as efficiently as possible.  The CS-355M also comes standard with a self centering vise, so there are no changes to make when changing diameters of tube or pipe. The vise also has a floating clamp that independently (left to right of saw blade) holds the jaws. This securely holds both sides of the cut material without dropping them into the rotating blade, which extends blade life.  A flood coolant system is also included to help with the quality of cut.

The CS-355M has a maximum capacity of 4-1/4 inch round at 90 degrees, and like the CS-350M, it has the ability to miter from 45 degrees to the right to 90 degrees on the left, perfect for slotting applications.

For more information on the Baileigh Industrial line of cold saws contact a representative.



Specifications
Model CS-355M
Max. Blade Diameter 14 inch
Operation Manual
Head Miter 90 degree Slotting, 45 degree Left / 45 degree Right
Round Solid at 45 degree 1.575 inch
Square Tube at 45 degree 2.953 x 2.953 inch
Round Tube at 45 degree 2.953 inch
Rectangle Tube at 45 degree 2.953 x 2.362 inch
Round Solid at 90 degree 2.362 inch
Rectangle Tube at 90 degree 4.25 x 3.5 inch
Square Tube at 90 degree 4.25 x 4.25 inch
Round Tube at 90 degree 4.331 inch
Coolant System Yes
Slotting Capable Yes, Left and Right
Vice Style Dual Action, Self Centering
Max. Vice Opening 6.5 inch
Head Style Pivot
Arbor Size 1 inch
Motor 5.5 hp
Blade Speed 3200 (rpm)
Power Requirements 220V / 3-phase
Shipping Weight 790 lbs.
Shipping Dimensions 60 x 44 x 48 inch



Cutting Capacity - Model: CS-350M

Head Swivel

90 deg

45 deg

s-h alt

60mm (2.362 in) 40mm (1.575 in)


110mm x 110mm (4.331 in x 4.331 in) 85mm x 85mm (3.346 in  x 3.346 in)
There are no listed accessories.

CS-355M
220 VOLT 3 PH HEAVY DUTY MANUALLY OPERATED ALUMINUM CUTTING COLD SAW. 14 BLADE DIAMETER
Mfg. item #: CS-355M
BAICS-355M
lease to own for as little as:$112 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
