Baileigh Punches and Ironworkers

HP-50H Hydraulic Punch

The HP-50H hydraulic punch sets a new standard in affordable plate punching. This heavy-duty plate punch machine covers most applications in the industry and offers everything you need to punch various-sized holes. Just add hydraulic fluid, plug it in, and let the punching begin. High-quality and reliable, this hydraulic plate punch is ruggedly built to withstand years of use in a garage or a full fledged fabrication shop. Order this hydraulic punch for sale today!

• Harnesses 50 tons of punching force.
• Includes .5 hp electric pump and hoses.
• Pump reaches a flow rate of up to 17 in³/min and will start under a full load.
• 24-volt remote control enables you to operate the punch from a safe distance of up to 10 feet away.
• 5 punch sets accommodate the following bolt sizes: 1/2”, 5/8”, 3/4”, 7/8”, and 1”.
• Double-acting cylinder design facilitates fast cycle times.
• Comes standard with a depth stop to help with repeatability, and a lifting bracket.
• Adjustable stripper prevents movement of the metal during stripping.
• Covered by a 1-year warranty and lifetime technical support by phone from our team of knowledgeable reps.

Manual Sheet Metal Punch HP-160

We built this manual sheet metal punch to withstand years of use in a garage or fabrication shop. The HP-160 metal punch press will make a perfect hole every time - faster and more efficiently than methods like drilling.

• Manually operated with a long lever to multiply your strength.
• Rugged capacity of up to .137 inch mild steel.
• Comes standard with 9 sets of punches and dies, ranging from 1/8 to 5/8 inch round.
• 6.25 inch throat depth allows you to punch practically any part of a given piece of material.
• Includes industrial material stop to make repeatability easier for production runs.
• Made from heavy-duty 1.5 inch steel plate and weighs an impressive 176 lbs. This sturdy construction adds strength to the metal punch press and ensures accurate results.
• Manual sheet metal punch backed by a 1-year parts warranty and lifetime technical support by phone from our experienced team.

SW-22M Manual Iron Worker

Need to shear stock on a budget? This manual ironworker offers many features of a full-fledged hydraulic ironworker - for a fraction of the cost and footprint space.

• Shears 5/8” solid square, 5/8” solid round, 4" x 3/8" flat bar, and angle iron of varying thicknesses.
• Gear transfers power from your arm to blades via the sturdy handle.
• Includes material back stop to help you make repeatable cuts for light production work.
• Made from fully-welded plate steel to prevent flex and maintain accuracy.
• Compact to suit small fabrication shops.
• Backed by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of seasoned reps.

Manual Iron Worker with Punch SW-22M-P

The versatile SW-22M-P combines the capabilities of 2 machines, the manual sheet metal punch HP-160 and the manual ironworker SW-22M, in one. This solidly-built manual punching and shearing machine will save space in any small shop.

• Shear station cuts angle iron, flat bar, T-bar, solid round, and solid square stock of varying thicknesses.
• Includes 9 round punches and dies: 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, and 5/8”.
• Back-stop lets you easily deliver repeatable results for light production work.
• Material hold-downs ensure straight, clean shearing and punching.
• Gear transfers the power from your arm to the blades via a sturdy handle.
• Extra-long handle (longer than we could fit in the picture!) offers more leverage, multiplying your force and eliminating strain.
• Made from durable plate steel to last for years and remain accurate.
• Covered by a 1-year parts warranty and lifetime phone support from Baileigh’s customer service team.

4 Station Hydraulic Ironworker SW-441
4 Station Hydraulic Ironworker SW-443

When a small fabricating shop is looking for new ironworker, two needs come to the front; floor space and cost.  The SW-44 takes care of both problems.  The small foot print allows it to fit just about anywhere and the cost makes it very attractive.  Available in two electrical configurations, 220 volt single and three phase, assuring the SW-44 ironworker will working any shop.

The SW-44 hydraulic Ironworker from Baileigh industrial is a 4 station machine with 44 tons of punching and shearing force.  The four main functions of the SW-44 are punching; flat bar shearing, angle cutting, and section cutting for profiles.  This pivot style ironworker is perfect for the shop on a budget, but this does not mean that is short on features.  The SW-44 is available in both single and three phase versions and are both CSA and CE certified.  A foot pedal control is also standard, as well as oversized tables for the punching and shearing sections.

Like all Baileigh Industrial ironworkers, the SW-44 has many options available including pipe notching, and press brake attachments.  Capable of running at 23 cycles per minute, the SW-44 will make quick work of anything that you throw at it.

Made in Taiwan

Resources

  Hydraulic Ironworker Catalog

The SW-62 ironworker from Baileigh Industrial is the next step in Baileigh Industrial hydraulic ironworkers.  It takes the concept of the SW-50 and adds a little more power or capacity.  This 62 ton has industry leading features, such as vertical movement for all stations and oversized work tables. The heavy duty, versatile design of the SW-62 iron worker offers 62 tons of true vertical pressure to each of its five integrated stations, making the SW-62 able to power through most any requirement that may arise.  The vertical movement of the SW-62 prolongs tooling life by producing less deformation and cleaner cuts than the competition.  The SW-62 iron worker is manufactured to the highest standards in the industry, ensuring a lifetime of use in any environment.

The SW-62 is available in both single and three phase power versions depending on your power requirements. Making this hydraulic ironworker is the perfect addition to any fabrication or machine shop where punching, shearing and notching is required.

The Baileigh Industrial SW-62 steel worker comes standard with oversized working tables, quick change punch system, wastebaskets, swing away material stripper, back gauge, and much more.  Giving the SW-62 the best bang for the buck in its class.

Resources

  Hydraulic Ironworker Catalog

Hydraulic Ironworker SW-95
Made in Taiwan

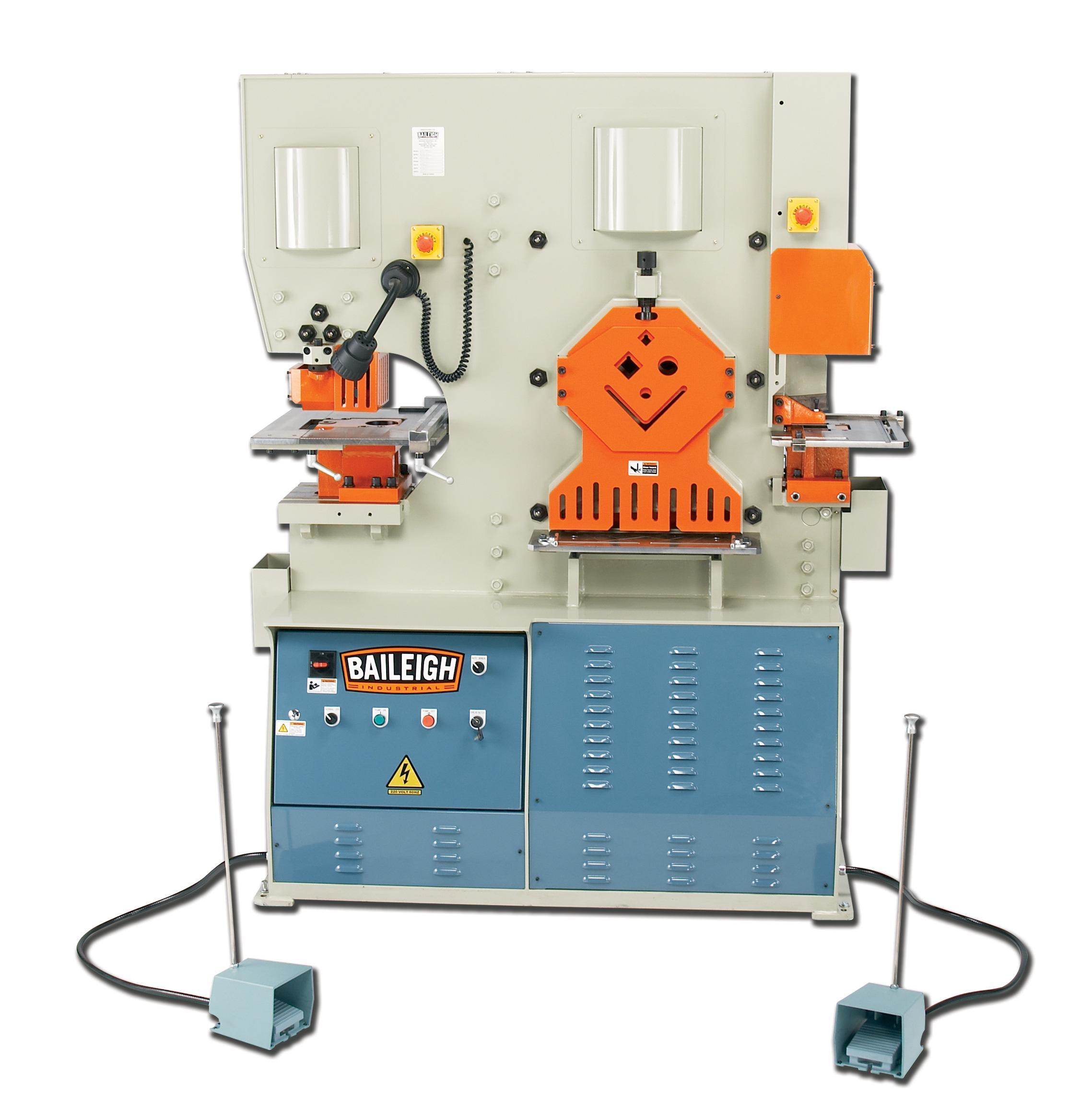

An ironworker is a staple for any metal working shop, the must have do all tool.  And when those shops are looking to increase productivity, they look to a dual operator style machine for the answer.  With 95 tons of punching power and 123 tons of shearing and notching pressure, the SW-95 is the perfect option.  Being a dual operator machine, the SW-95 will allow two operators on each end of the machine to work simultaneously without loss of power at either station.

The SW-95 is a true five station ironworker, these stations include punching, notching, flat bar shearing, angle shearing, and bar shearing.  Although these stations are not unique to the SW-95, what is unique is the way in which they function.  The SW-95 uses all vertical movement to perform all functions.  This is achieved through the use of vertical hydraulic cylinders.  The big advantage to the vertical movement is less material waste due to less clearance being needed and punch tooling will last longer as the stress is spread out over the entire circumference of the punch instead of just one edge.

The SW-95 dual operator ironworker is constructed from heavy structural plate for rigidity.  The punch station has an extra deep 16 inch throat depth and the shear station has hydraulic hold downs for safe operation.   Other great features of the SW-95 are an electric back gauge, swing away stripper, oversized work tables, foot pedal operation, and waste buckets.  Many different tooling sets are available as well.

Hydraulic Ironworker SW-132
Made in Taiwan

Baileigh Industrials biggest all vertical ironworker is the SW-132.  This behemoth has 132 tons of punching and 179 tons of shearing and notching power.  It is also a dual operator machine, meaning two workers can work on opposite sides of the machine without a loss in power.  To achieve such power the SW-132 boasts a 220 Volt three phase 15 hp motor to power the industrial grade hydraulic system. The SW-132 is truly a workhorse and will be at home in any size shop.

The SW-132 is a five station ironworker with stations for punching, notching, flat bar shearing, angle shearing, and bar shearing.  Like most Baileigh Industrial hydraulic ironworkers the SW-132 uses the best design in the industry and uses vertical motion at each station. This type of machine eliminates the harsh snap in the punching station common on other brands. By eliminating the harsh snap the machine has less fatigue on it and the tooling lasts much longer.  The punching station on the SW-132 ironworker comes standard with seven sets of punches and dies as well as an oversized work table that has material stops and is scaled for easy setup.

The Baileigh Industrial SW-132 hydraulic ironworker was been designed and built to the highest quality standards in the industry.  No corners were cut; the frame is fully welded for rigidity and hydraulic clamps were added to the shearing station to hold everything in alignment. This eliminates any lifting of the material when shearing, extending blade life and providing a square sheared part. Other great features of the SW-132 are an electric back gauge, swing away stripper, oversized work tables, foot pedal operation, and waste buckets.
