Baileigh Drill Press

Gear Driven Drill Press DP-1000G

Gear Driven Drill Press DP-1500G

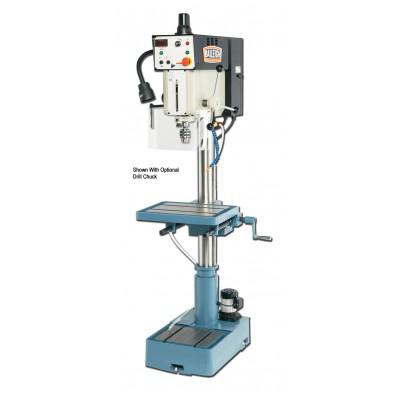

Baileigh Drill Press Variable Speed DP-1000VS

Shown With Optional Drill Chuck

Baileigh Drill Press DP-1250VS

Shown With Optional Drill Chuck

Variable Speed Drill Press DP-1500VS

Shown With Optional Drill Chuck

                                                                        Variable Speed Drill Press DP-1750G

Gear Driven Drill Press DP-1000G

Equipped to run at 4 different speeds, the gear-driven drill press is as versatile as it is tough. For an economical price, you can add this drill built to Baileighs exacting quality standards to your shop

  • 1.5 hp motor requires 110 volts of power and will run in any fabrication or machine shop.
  • Maximum capacity of up to 1 inch mild steel.
  • Transmission offers multiple speeds (125, 420, 535, and 1740 rpm) for drilling and tapping an array of different materials.
  • Sturdy 4 inch diameter column reduces flexing to ensure accurate results.
  • You can easily adjust the gear head up or down on the column.
  • Comes standard with a heavy cast iron base and adjustable table.
  • Includes a protective guard around the spindle for your safety.
  • Bright halogen work light bends to provide visibility where you need it.
  • Baileigh covers this drill press with a 1-year warranty plus lifetime technical support by phone.
Specifications
Item Number DP-1000G
Table Size 19.75 x 13.75 inch
Motor 1.5 hp
Spindle Speed 125, 420, 535, 1740 rpm
Spindle Taper MT 3
Tapping Capacity 5/8 inch
Power 110V
Shipping Weight 484 lbs.
Drill Capacity 1 inch
Spindle Travel 5.3 inch
Base Dimensions L x W 15.5 x 19.5 inch
Shipping Dimensions 66 x 22 x 28 inch
specifications subject to change without notice



Gear Driven Drill Press DP-1500G

20 inch Gear Head Drill Press A Baileigh DP-1500G gear head drill press is rigidly designed for heavy drilling.  The column is a massive 5-1/2 inch diameter to help reduce possible flexing during heavy feeds at maximum capacity, which is 1-1/2 inch through mild steel.  The base and table are made from a heavy casting and both have large T-slots to ensure a proper hold of the material being drilled. The DP-1500G has a heavy industrial grade gear system that allows for an array of speeds to work with many different materials for drilling and tapping. To properly transfer the power from the gear head drill press to the material we have as standard a # 4 Morse Taper. The DP-1500G comes standard with a coolant system, guarding, a chuck and a halogen light.  This Baileigh Industrial drill press offers a lot of power at a very economical value to the machine shop or fabrication shop owner.  Please see the specification below and feel free to contact one of our knowledgeable representitives for further questions.

Specifications
Model DP-1500G
Motor 3.5 hp
Spindle Speed 108  to 1800 rpm
Spindle Taper MT 4
Tapping Capacity 1.3 inch
Table Size 20 x 16 inch
Power 220V / 3-Ph
Shipping Weight 963 lbs.
Drill Capacity 1.5 inch
Spindle Travel 7.48 inch
Base Dimensions L x W 19.5 x 28 inch
Shipping Dimensions 84 x 23 x 37 inch
specifications subject to change without notice



Baileigh Drill Press Variable Speed DP-1000VS

Made in Taiwan

16 inch Drill Press Machine The DP-1000VS variable speed drill press has a very wide column to eliminate flexing when drilling at full capacity.  The base and table are made from a very rigid casting adding to the strength of this 1 inch maximum capacity drilling machine. The inverter driven head allows the machinist or fabricator to run tooling at the proper speed for each drill or tap size available.  Running at the exact speed extends tooling life, something that can't be accomplished on other drills like pulley driven styles.   The DP-1000VS drill press also comes standard with a coolant system, guarding and a halogen light. To find out more information about our variable speed drill presses, please call a representative.

Specifications
Model DP-1000VS
Quill Diameter 2.44 inch
Spindle Nose to Table 23.8 inch
Spindle Nose to Base 45.3 inch
Spindle Speed 150 – 3000 rpm
Spindle Taper MT 3
Table Slot .625 inch
Tapping Capacity Cast Iron 3/4 inch
Table Size 18.1 x 14.2 inch
Tapping Capacity Steel 5/8 inch
Main Motor 2 hp
Drill Capacity Cast Iron 1.25 inch
Drill Capacity Steel 1 inch
Power 220V Single Phase
Shipping Weight 579 lbs.
Spindle Travel 5.3 inch
Column Diameter 3.62 inch
Base Dimensions L x W 27 x 19 inch
Shipping Dimensions 32 x 24 x 79 inch



Baileigh Drill Press DP-1250VS

Made in Taiwan

20 inch Heavy Duty Drill Press Baileighs DP-1250VS heavy duty drill press has a wide column for extra support to reduce flexing during heavy drilling sessions at maximum capacity, being 1-1/4 inch diameter mild steel.  This machine has a powerful inverter driven head that is controlled through a speed potentiometer dial and digital read out for displaying actual quill RPM. This variable speed drill press uses a heavy # 4 Morse Taper to transfer the power from the spindle to the quill.  To further the rigidity the base and table are made of a heavy casting with very large T-Slots to secure vise or material.  The base includes a powerful coolant system that is sprayed out at the quill behind a quality splash and safety guard.  The coolant system increases drill bit and tap life. This heavy duty, variable speed, floor drill press is commonly in stock for quick shipments. It offers any machinist or fabricator a great value for the investment.  If you have additional questions please don't hesitate to call.

Specifications
Model DP-1250VS
Quill Diameter 2.95 inch
Spindle Nose to Table 36.41 inch
Spindle Nose to Base 48.22 inch
Spindle Speed High 245 – 2000 rpm
Spindle Speed Low 85 – 540 rpm
Spindle Taper MT 4
Table Slot .625 inch
Tapping Capacity 3/4 inch
Table Size 22 x 18.5 inch
Main Motor 2 hp
Power 220V / 1-phase
Shipping Weight 847 lbs.
Swing 20.8 inch
Drill Capacity 1.5 inch
Spindle Travel 5.9 inch
Column Diameter 4.52 inch
Base Dimensions L x W 27 x 19 inch
Shipping Dimensions 40 x 25 x 83 inch



Variable Speed Drill Press DP-1500VS

Made in Taiwan

20 inch Drill Press Machine Baileigh model DP-1500VS heavy duty drill press comes standard with power feed and a quality auto reversing tap feature.  This is a quality made machine using only the best quality castings and base metals to support rigidity when drilling at maximum capacity with the power down feed. The base and drill table is made from a heavy casting that has oversized T-Slots for secure clamping of a vise or fixture. This variable speed drill press has an inverter driven head whose quill speed can be properly adjusted to each different drill size that really will extend tooling life. Adjustments to the speed can be done by a speed potentiometer dial, noting the RPM is displayed on the digital read out. Additional standard features of this quality floor type drill press are a safety guard with limit switch, a powerful coolant system, and a bright halogen light.  To find out more about this quality product, please feel free to speak with one of our trained representitives.

Specifications
Model DP-1500VS
Quill Diameter 2.95 inch
Quill Feed .0078, .004, .002 inch per rev.
Spindle Nose to Table 22.75 inch
Spindle Nose to Base 40.75 inch
Spindle Speed High 245 – 2000 rpm
Spindle Speed Low 65 - 540 rpm
Spindle Taper MT 4
Table Slot .625 inch
Tapping Capacity .937 inch
Table Size 22 x 18.5 inch
Main Motor 2 hp
Drill Capacity Cast Iron 1.75 inch
Drill Capacity Steel 1.5 inch
Power 220V Single Phase
Shipping Weight 902 lbs.
Spindle Travel 5.9 inch
Column Diameter 4.52 inch
Base Dimensions L x W 27 x 19 inch
Shipping Dimensions 40 x 25 x 83 inch



Variable Speed Drill Press DP-1750G

Made in Taiwan

20 inch Drill Press Machine Baileigh model DP-1750G heavy duty drill press comes standard with power feed and a quality auto reversing tap feature.  This is a quality made machine using only the best quality castings and base metals to support rigidity when drilling at maximum capacity with the power down feed. The base and drill table is made from a heavy casting that has oversized T-Slots for secure clamping of a vise or fixture. This variable speed drill press has an inverter driven head whose quill speed can be properly adjusted to each different drill size that really will extend tooling life. Adjustments to the speed can be done by a speed potentiometer dial, noting the RPM is displayed on the digital read out. Additional standard features of this quality floor type drill press are a safety guard with limit switch, a powerful coolant system, and a bright halogen light.  To find out more about this quality product, please feel free to speak with one of our trained representitives.

Specifications
Model DP-1750G
Quill Diameter 2.95 inch
Quill Feed .0078, .004, .002 inch per rev.
Spindle Nose to Table 22.75 inch
Spindle Nose to Base 40.75 inch
Spindle Speed High 245 to 2000 rpm
Spindle Speed Low 65 - 540 rpm
Spindle Taper MT 4
Table Slot .625 inch
Tapping Capacity .937 inch
Table Size 22 x 18.5 inch
Main Motor 2 hp
Drill Capacity Cast Iron 1.75 inch
Drill Capacity Steel 1.5 inch
Power 220V Single Phase
Shipping Weight 1400 Lbs.
Spindle Travel 5.9 inch
Column Diameter 4.52 inch
Base Dimensions L x W 27 x 19 inch
Shipping Dimensions 40 x 25 x 83 inch



There are no listed accessories.

DP-1000G
110 VOLT GEAR DRIVEN DRILL PRESS. MANUAL FEED. 1 MILD STEEL DRILLING CAPACITY.
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: DP-1000G
BAIDP-1000G
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,085.25

101
DP-1500G
220 VOLT THREE PHASE GEAR DRIVEN DRILL PRESS. POWER FEED. 1-1/2 MILD STEEL DRILLING CAPACITY.
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: DP-1500G
BAIDP-1500G
lease to own for as little as:$65 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,320.25

101
DP-1000VS
220 VOLT SINGLE PHASE INVERTER DRIVEN DRILL PRESS. MANUAL FEED. 1 MILD STEEL DRILLING CAPACITY.
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: DP-1000VS
BAIDP-1000VS
lease to own for as little as:$58 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,940.25

101
DP-1250VS
220 VOLT 1 PHASE INVERTER DRIVEN DRILL PRESS. MANUAL FEED. 1-1/4 MILD STEEL DRILLING CAPACITY.
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: DP-1250VS
BAIDP-1250VS
lease to own for as little as:$78 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,985.25

101
DP-1500VS
220 VOLT 1 PHASE INVERTER DRIVEN DRILL PRESS. 3 SPEED POWER DOWN FEED. 1-1/2 MILD STEEL CAPACITY.
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: DP-1500VS
BAIDP-1500VS
lease to own for as little as:$89 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,555.25

101
DP-1750G
220 VOLT THREE PHASE GEAR DRIVEN DRILL PRESS. POWER FEED, COOLANT SYSTEM, MT4 SPINDLE, L TYPE TABLE
CALL NOW FOR YOUR BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: DP-1750G
BAIDP-1750G
lease to own for as little as:$78 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,985.25

101
