Baileigh MLD-1030 3 in 1 Machine - Lath

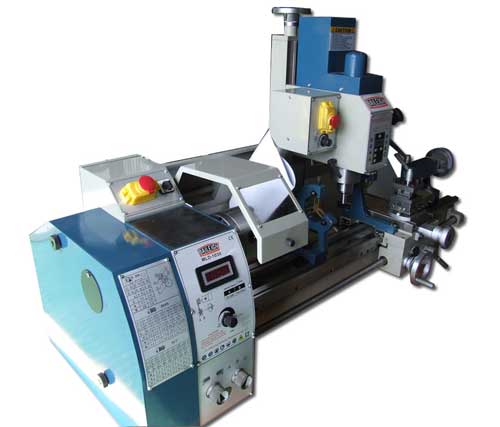

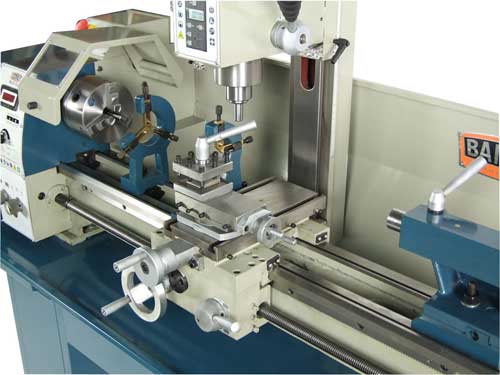

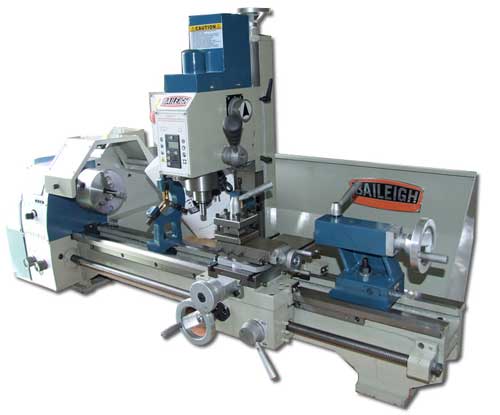

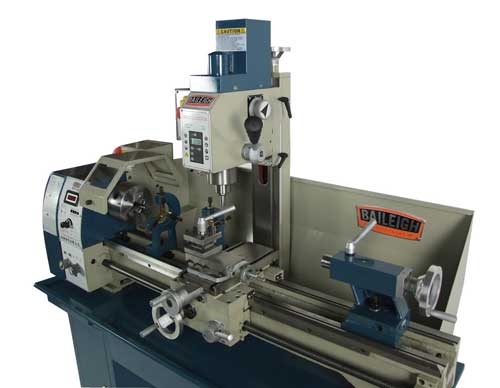

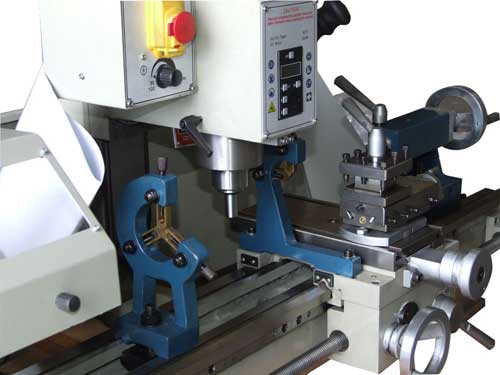

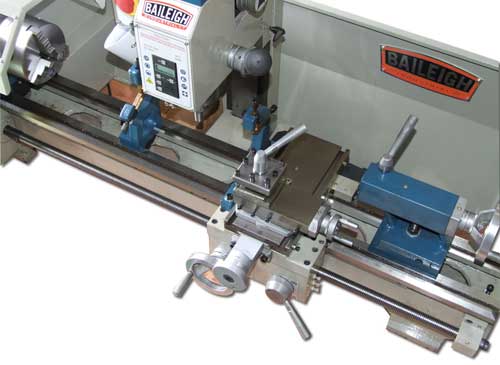

3 in 1 Lathe Mill Drill Machine
Baileigh Industrials unique MLD-1030 is the answer for anyone looking to get maximum versatility from the tools.  The MLD-1030 combines 3 machines into one small package, giving the operator the choice for milling, drilling, or performing lathe operations

There are no further details.
Specifications - Metal Lathe
Distance Between Centers  21.5"/29.5"
Swing Over Bed  9.75"
Swing Over Cross Slide 5.7"
Width of Bed 5.3"
Taper of Spindle Bore  MT 4

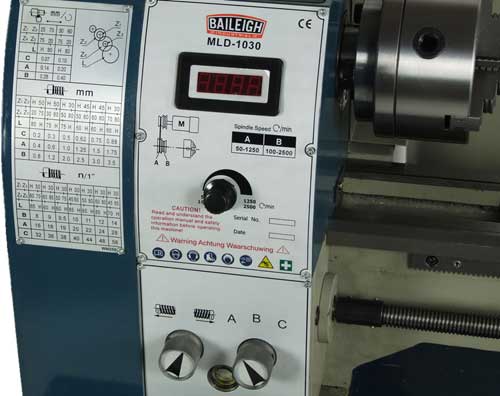

Speed 50-2000 RPM / Variable
Range of Longitudinal Feed .003"- .008"

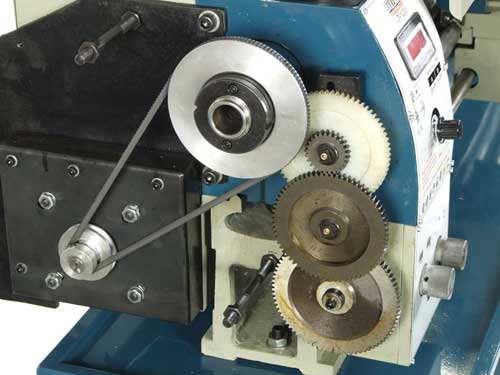

Range of Inch Threads 8-56 T.P.I
Range of Metric Threads   .2 -3.5mm

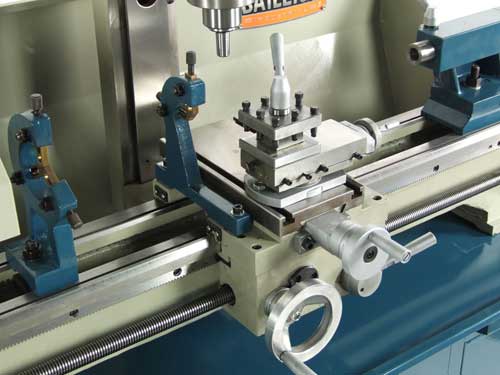

Top Slide Travel  2"
Cross Slide Travel 4.5"

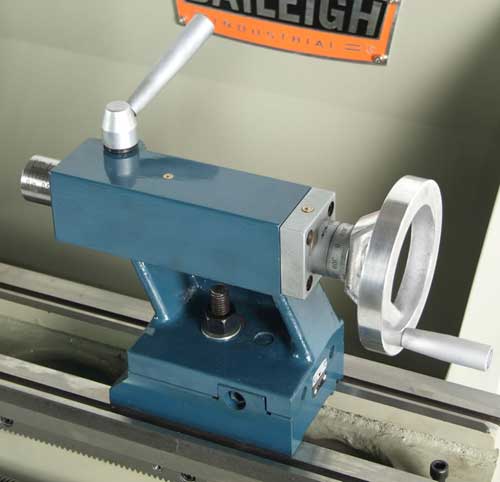

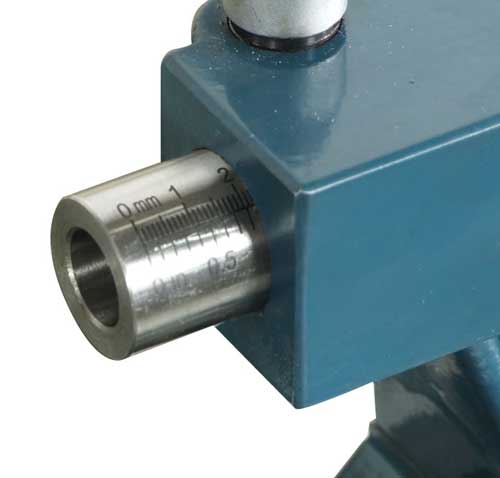

Tailstock Quill Travel 2"
Taper of Tailstock Quill  MT 2
Motor 1hp

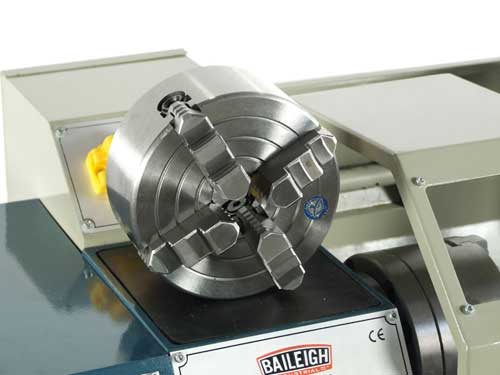

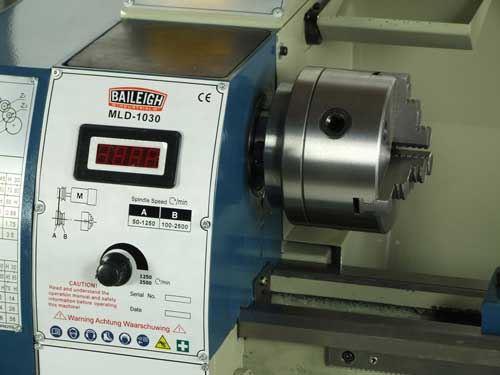

HEADSTOCK Chunk Size 5"
Voltage 120V

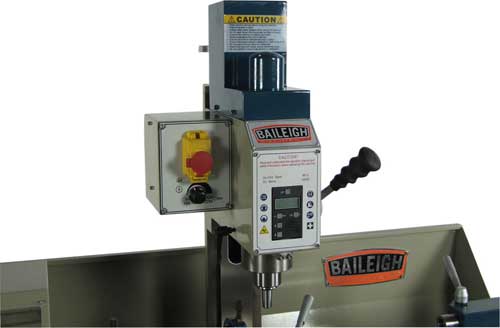

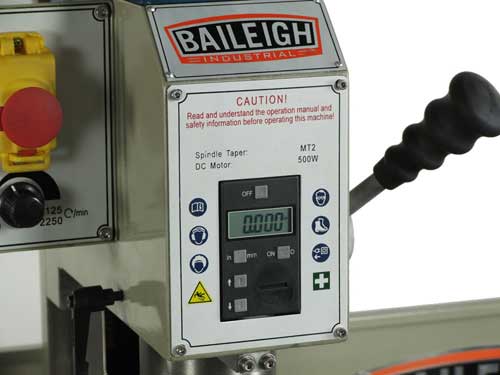

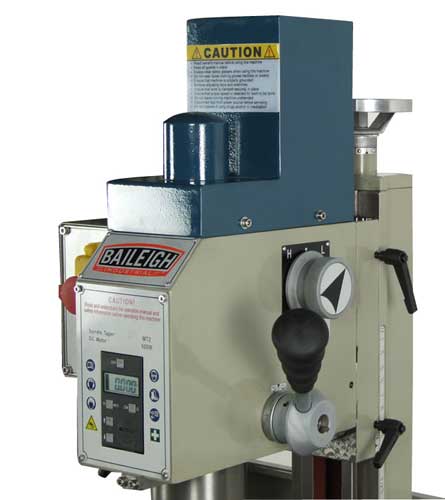

Specifications - Mill Machine / Drill Press
Taper of Spindle Bore  MT2
Spindle Stroke 2"

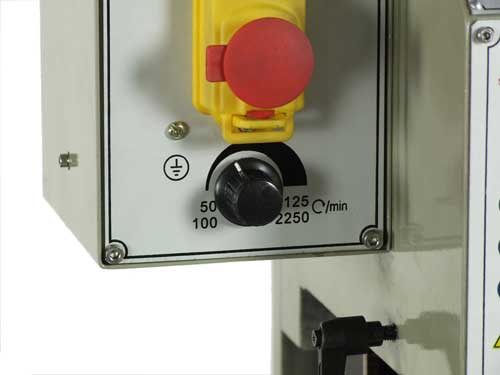

Spindle Speed 50-2250 RPM Variable
Max. Distance Spindle to Table 11"
Max. Distance Spindle to Column 6.5"
Motor 3/4 hp
Voltage 120V
Weight 429lbs
There is no further information.
There are no listed accessories.
MLD-1030
Mfg. item #: MLD-1030
BAIMLD-1030
lease to own for as little as:$71 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,605.25

45
