Baileigh MSS-18 Sheet Metal Shrinker Str



Shrinker Stretcher MSS-18 MSS-18DT - Deep Throat Shrinker Stretcher
MSS-18 - Shrinker Stretcher  MSS-18DT - Deep Throat Shrinker Stretcher



Shrinker Stretcher MSS-18 Shrinker Stretcher MSS-18

Made in United States

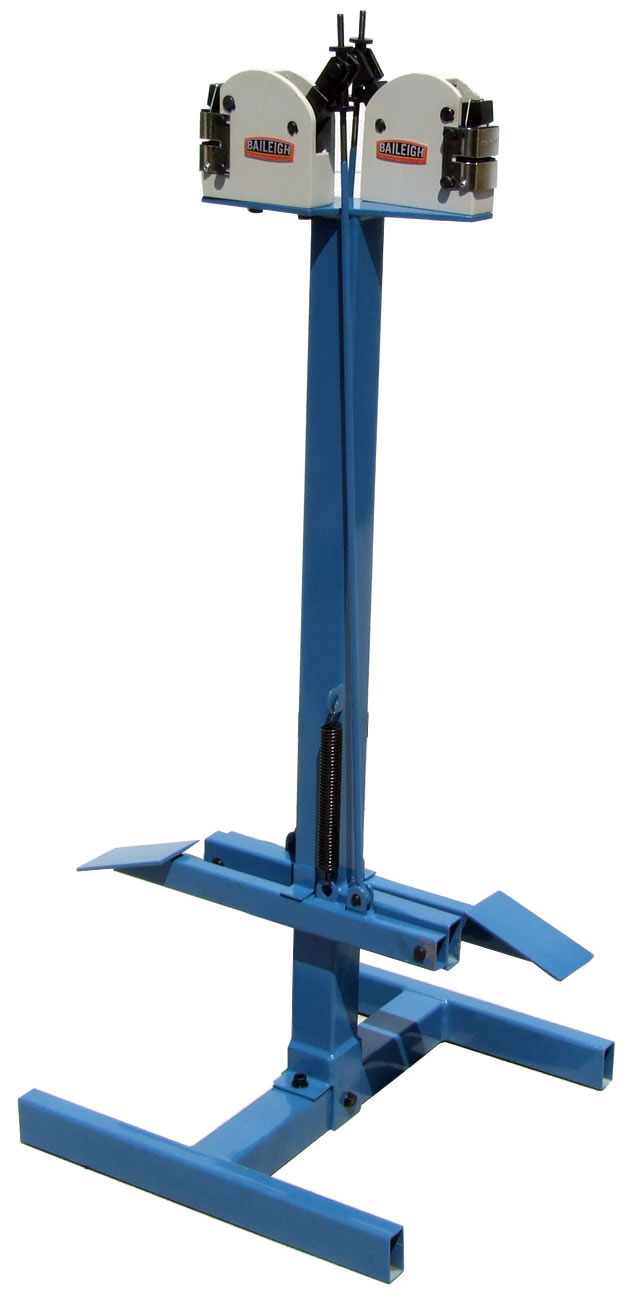

One must have in any fabrication shop is a shrinker/stretcher.  The MSS-18 is Baileigh Industrials entry level shrinker/stretcher, but we take the base unit and add some kick to it, literally.  Instead of having to buy an optional stand like most other sellers; we include it in the price.  And whats better, we made it a kick stand.  Thats right; with the MSS-18 both hands will be free to handle the material.  Another feature of Baileigh Industrials MSS-18 sheet metal shrinker/stretcher is that ours has one complete shrinker and one complete stretcher both in their own cast iron housings.  No need to switch out jaws if you need switch functions.  The heavy casting assures a quality function at full capacity, which is 18-gauge in mild steel and 16-gauge in aluminum.

The MSS-18 metal shrinker/stretcher units are constructed of cast iron to last the fabricator for years of production. Replaceable jaws can be ordered separately as needed. Contact a representative for more information.
Specifications
Model MSS-18
Mild Steel Capacity 18 ga.
Throat Depth 1.5 inch
Stand Included
Aluminum Capacity 16 ga.
Power Manual
Shipping Weight 70 lbs.
Shipping Dimensions 44 x 21 x 9 inch





MSS-18DT - Deep Throat Shrinker Stretcher

MSS-18DT - Deep Throat Shrinker Stretcher

Every shop needs a shrinker stretcher at one time or another, but all of the economical ones on the market suffer from the same issue, throat depth. Baileigh decided to take a look at that problem and tackle it head on.  Presenting the MSS-18DT deep throat shinker stretcher.  This little workhorse feature a 2.5 inch throat depth instead of the industry standard 1.5 inch.  Whats better it comes with 2-heads to save time. No need to switch jaws!

Features:

  • 18 gauge mild steel and 16 gauge aluminum capacity.
  • 2.5 inch throat provides that little extra depth for even more versatlitylets you work on the edges of panels.
  • Comes assembled with shrinker and stretcher jaws - everything you need to get started.
  • Jaws are in separate iron housings, so you don’t have to change tooling between functions.
  • Heavy cast iron construction allows the shrinker stretcher to reliably work at full capacity over many years of use.
  • Covered by a 1-year parts warranty and lifetime technical supportby phone.
  • We keep replacement jaws and other parts in stock, so we can ship them to you quickly.

Recommended for: Entry-level sheet metal shaping, especially in automotive and airplane shops.

Specifications
Item Number MSS-18DT
Included Accesories Included Accesories
Construction Cast Iron Bodies
Mild Steel Capacity 18 ga.
Throat Depth 2.5 inch
Stand Optional
Aluminum Capacity 16 ga.
Power Manual
Shipping Weight 25lbs
Shipping Dimensions (Inches) 44x19x8



Baileigh MSS-18 Shrinker / Stretcher
MSS18-SHR Replacement Jaws for the MSS-18 Shrinker
MSS18-STR Replacement Jaws for the MSS-168 Stretcher
BA9-1005727
MSS-18; FOOT OPERATED SHRINKER STURKEYETCHER 18 GAUGE MILD STEEL CAPACITY, 16 GAUGE ALUMINUM CAPACITY **SHIPS LTL FREIGHT TRUCK, WGT = 81 LBS & MADE IN CHINA

CALL 800-458-3687 OR ADD TO VART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOINTMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-1005727
BAIMSS-18
See freight charges if any at checkout. ALWAYS FREE Residential and Liftgate when Requested.1055
$999.00

9
BA9-1230392
MSS-18DT; 18 GA. METAL SHRINKER AND STURKEYETCHER COMBO SET, 2.5 DEEP THROAT DEPTH **SHIPS UPS / FEDEX , WGT = 25 LBS & MADE IN CHINA
Mfg. item #: BA9-1230392
BAIMSS-18DT
See freight charges if any at checkout. ALWAYS FREE Residential and Liftgate when Requested.1054
$519.00

9
MSS18-SHR
REPLACEMENT JAWS FOR THE MSS-18 SHR ** CALL FOR PRICING
Mfg. item #: MSS18-SHR
BAIMSS18-SHR
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

831
MSS18-STR
REPLACEMENT JAWS FOR THE MSS-168 ST ** CALL FOR PRICING
Mfg. item #: MSS18-STR
BAIMSS18-STR
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

831
