Baileigh R-H85 Double Pinch Ring and Ang

Hydraulic Roll Bender R-H85

Roll Bender - RH-85 Angle Bending Roll Roll Bender - Angle Bending Roll RH-85
Double Pinch Roll Bender Roll Bender Angle Bending Roll - Roll Bender - RH-85

Click picture to enlarge




Hydraulic Roll Bender R-H85

Made in Portugal

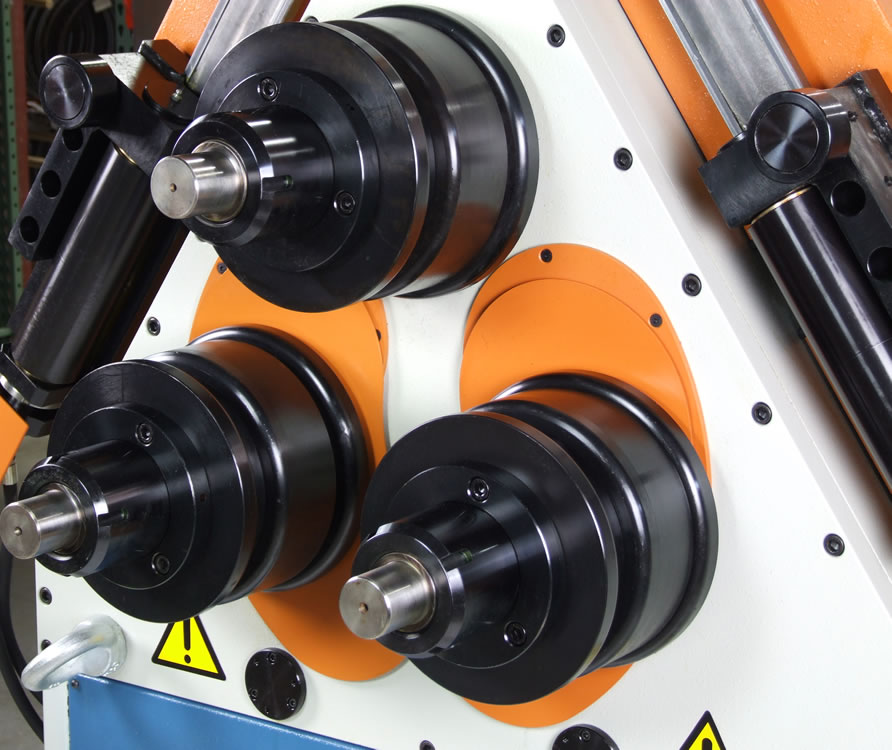

Baileigh Industrials R-H85 double pinch angle roll machine is a great choice for a roll bender when looking to reduce scrap.  The R-H85 is considered a double pinch roll bender since the top roll is fixed and the two bottom rolls are on independent hydraulic cylinders with encoders that communicate to the DRO programmers for exact positioning of each roll. The double pinch design helps minimize those money wasting pieces of straight that are commonly found at the start and finish of the bend by allowing the operator to pre and post bend the material.

The R-H85 is capable of bending up to 3 inch Schedule 40 pipe and 3-3/8 x 3-3/8 x 1/4 inch angle iron. It is built to last using heavy steel plate that is bolted and welded for further structural strength allowing for no flex at full capacity. This angle bending roll comes standard with an industrial grade hydraulic transmission that drives all three rolls. The same hydraulic system controls the movement of the angle lateral guide rolls as well.  These rolls help keep the material from twisting while being bent.

The operator pedestal controls all movement of the machine and the integrated digital readout shows positioning of the bottom rolls.  There is also a stop that can be set for each roll for repeatability when doing production runs.  Please call your Southern Tool representative for further information on the R-H85



Specifications
Model R-H85
Round Tube Capacity Size: 4 (.120) / Min. Dia.: 118 inch
Shaft Diameter 3.15 inch
Roll Adjustment Hydraulic
Lower Roll Dia. 9.65 inch
Solid Round Capacity Size: 2.375 / Min. Dia. 40 inch
Pipe Capacity Size: 3 (sch. 40) / Min. Dia.: 68 inch
Pinch Double
Square Capacity Size: 2 / Min. Dia. 46 inch
Square Tube Capacity Size: 2.75 (.157) / Min. Dia.: 118 inch
Power Requirements 220V / 3-phase
Angle Iron Capacity Size: 3.375 (.250)/ Min. Dia.: 68 inch
Digital Readout Yes
Flat Bar Easy Way Size: 5 (.1) / Min. Dia. 24 inch
Flat Bar Hard Way Size: 4 (.787)/ Min. Dia.: 83 inch
Shipping Weight 3,550 lbs.
Shipping Dimensions 60 x 60 x 68 inch
Dimensions L x W x H 60 x 60 x 68 inch
specifications subject to change without notice



There are no listed accessories.

R-H85
MODEL R-H85 HYDRAULIC DOUBLE PINCH ROLL BENDER 220V 3PHASE 60HTZ
SPECIAL SHORT TERM PRICE REDUCTION - LIMITED QUANTITY AVAILABLE - CALL 1-800-458-3687 X1 FOR MORE DETAILS
Mfg. item #: R-H85
BAIR-H85
lease to own for as little as:$677 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
