Birmingham DL-26/32/40 Universal Heavy Duty Lathe

s-h alt

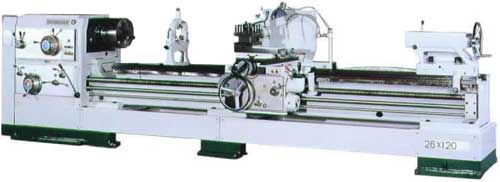

Model DL-26 Shown

Features:

  • 20HP Main motor (15HP on DL-26 series only)
  • 67 Kinds of inch threads
  • 18 Speeds from 7.5 to 1000rpm
  • D1-11 camlock with 4 1/8" spindle bore
  • All threading without changing gears
  • Main spindle hardened & precision ground
  • Bed made of fine grain high tensile cast iron
  • 4-Way rapid traverse to carriage & cross slide
  • Bed ways induction hardened & precision ground
  • All gears & shafts hardened & precision ground
  • Spindle supported at 3-point by precision bearings
  • Automatic lubrication system in headstock & feed box
  • Hydr - control multi - disc clutch for spindle turning & brake

Standard Accessories

  • Chip pan
  • Tailstock
  • Change gears
  • 16" Steady rest w/roolers
  • 4" Follow rest
  • Removable Gap
  • Coolant
  • System
  • 4-Way toolpost
  • 31 1/2" Face plate
  • 12" 3-Jaw chuck for DL-26
  • 15" 3-Jaw chuck for DL-32/40
  • 20HP main motor
  • Instruction manual
  • Tool kit with tools
  • 4-way rapid traverse
  • T slot style compound
  • 20" 4-Jaw chuck for DL-26
  • 25" 4-Jaw chuck for DL-32/40
  • Thread chasing dial
  • Splash guard (partial size)
  • Leveling pads
  • 12" Drive plate
  • Safety protector
  • Centers & sleeve
  • Work light system
Specifications
  Item Model DL-26 DL-32 DL-40
Capacities Max. swing over bed 26" 32" 40"
Max. swing over cross slide 13 13/16" 20 1/2" 28"
Max. swing in gap 31 1/2" 39" 48"
Width of bed 21 21/32"
Effective length in gap to spindle 16"
Effective length in gap to chuck 9 1/2"
Max. distance between centers 60", 80", 120", 160", 200", 240"
Headstock
Spindle 		Spindle bore 4 1/8"  -  5 1/8" 5 1/8"
Spindle nose D-1-11 Camlock
Spindle speed range 7.5-1000 rpm 7.5/10/13/18/23/31/43/56/75/100/132/178/240/310/420/575/740/1000
Spindle speed numbers 18 Steps
Taper of spindle center M.T. No. 5
Feeds
And
Threads 		Longitudinal feeds 0.002-0.96 IPR, 64 Kinds
Cross feeds 0.001-0.48 IRP, 64 Kinds
Inch threads 32 1/16 TPI, 73 kinds
Metric threads 1-256mm, 57 kinds
Module threads 0.5-128mm, 57 kinds
Diameteral pitch threads 32 1/8 DP, 57 kinds
Leadscrew diameter / Pitch 2 1/4", 2 TPI
Carriage Top slide travel Max 7.55/64"
Cross slide travel Max 17 1/2" 19 13/32" 20 7/8"
Longitudinal rapid travel 149"/min
Cross slide rapid travel 74 1/2" /min
4-Way tool post capacity 1 1/4" x 1 1/4"
Tailstock Quill taper M.T. No 5
Quill travel 9 1/2"
Quill diameter 3 15/16"
Motors Main drive motor 20 HP, 220v/440v, prewired 220v
Coolant pump motor 1/8 HP, 220v/440v, prewired 220v
Rapid traverse motor 1 1/2 HP, 220v/440v, prewired 220v
Overall Dimensions
(LxWxH)
(inch) 		60" Centers 160 x 55 x 72 160 x 58 x 75 160 x 62 x 78
80" Centers 180 x 55 x 72 180 x 58 x 75 180 x 62 x 78
120" Centers 220 x 55 x 72 220 x 58 x 75 220 x 62 x 78
160" Centers 260 x 55 x 72 260 x 58 x 75 260 x 62 x 78
200" Centers 300 x 55 x 72 300 x 58 x 75 300 x 62 x 78
240" Centers 340 x 55 x 72 340 x 58 x 75 340 x 62 x 78
Net Weight
(Approx) lbs 		60" Centers 9,000 9,500 10,000
80" Centers 10,000 10,500 11,000
120" Centers 11,000 11,500 12,000
160" Centers 12,000 12,500 13,000
200" Centers 13,000 13,500 14,000
240" Centers 14,000 14,500 15,000

DL-2660
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-2660
CPTDL-2660
lease to own for as little as:$482 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$24,108.00

2730

DL-2680
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-2680
CPTDL-2680
lease to own for as little as:$506 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$25,284.00

2730

DL-26120
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-26120
CPTDL-26120
lease to own for as little as:$541 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$27,048.00

2730

DL-26160
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-26160
CPTDL-26160
lease to own for as little as:$682 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$34,104.00

2730

DL-26200
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-26200
CPTDL-26200
lease to own for as little as:$776 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$38,808.00

2730

DL-26240
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-26240
CPTDL-26240
lease to own for as little as:$894 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$44,688.00

2730

DL-3260
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-3260
CPTDL-3260
lease to own for as little as:$541 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$27,048.00

2730

DL-3280
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-3280
CPTDL-3280
lease to own for as little as:$564 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$28,224.00

2730

DL-32120
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-32120
CPTDL-32120
lease to own for as little as:$600 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$29,988.00

2730

DL-32160
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-32160
CPTDL-32160
lease to own for as little as:$729 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$36,456.00

2730

DL-32200
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-32200
CPTDL-32200
lease to own for as little as:$788 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$39,396.00

2730

DL-32240
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-32240
CPTDL-32240
lease to own for as little as:$941 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$47,040.00

2730

DL-4060
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-4060
CPTDL-4060
lease to own for as little as:$588 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$29,400.00

2730

DL-4080
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-4080
CPTDL-4080
lease to own for as little as:$612 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$30,576.00

2730

DL-40120
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-40120
CPTDL-40120
lease to own for as little as:$635 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$31,752.00

2730

DL-40160
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-40160
CPTDL-40160
lease to own for as little as:$776 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$38,808.00

2730

DL-40200
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-40200
CPTDL-40200
lease to own for as little as:$894 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$44,688.00

2730

DL-40240
** SPECIAL - FREE TAPER ATTACHMENT - 26 X 60 D1 11, 18SPD, 20HP 4 1/8 BORE HEAVY DUTY PRECISION LATHES 220/440 3 PHASE ** CALL 800-458-3687 FOR THE BEST FREIGHT RATE ON THIS ITEM (PC110510)
Mfg. item #: DL-40240
CPTDL-40240
lease to own for as little as:$988 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$49,392.00

2730

DL-LSR
7 LARGER STEADY REST W/ ROLLER JAWS FOR DL- 26 FREE FREIGHT ONLY WHEN ORDERED WITH A DL-LATHE (PC110510)
Mfg. item #: DL-LSR
CPTDL-LSR
FREE shipping when ordered with a machine from this manufacturer.20
$562.50

2730

DL-10SR
10 STEADY REST W / ROLLER JAWS FOR DL- 32 / 40 FREE FREIGHT ONLY WHEN ORDERED WITH A DL-LATHE (PC110510)
Mfg. item #: DL-10SR
CPTDL-10SR
FREE shipping when ordered with a machine from this manufacturer.20
$750.00

2730

DL-24SR
24 STEADY REST W / ROLLER JAWS FOR DL- 32 / 40 FREE FREIGHT ONLY WHEN ORDERED WITH A DL-LATHE (PC110510)
Mfg. item #: DL-24SR
CPTDL-24SR
FREE shipping when ordered with a machine from this manufacturer.20
$1,687.50

2730

Optional accessories

  • Digital readout
  • Taper turning attachment
  • 7" steady rest w/rollers for DL-26
  • 10" Steady rest w/rollers for DL-32/40
  • Quick change tool post & holders
  • 24" Steady rest w/rollers
