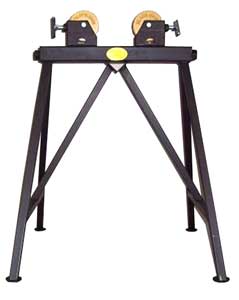

Blackjack 106BJS Adjustable Roller Stand

Features

• Roller Adjustment From Either End Of Carriage
• Height: 28 inch
• Adjusting Nuts 1 1/4 inch Hex
• Rollers 4 inch Dia. x 1/2 inch A 36 Steel Lathe Turned For Concentricity
• Rollers Have Oilless Bronze Bushings
• Roller Holders Are Made Of 11 Gauge Steel With 3/8" Basses
• Adjusting Screw 3/4 inch - 6 Pitch Full Acme Thread
• Adjusting Screw Mounted In Oilless Bronze Bushings
• Carriage Housing 2 inch x 3 inch 11 Gauge Tubing
• Leg Pattern 23 inch x 26 inch For Working Stability
• Legs Are Of A Frame Design
• Center Braces From Middle Of Carriage To Lower Leg Brace For Even Distribution Of Load
• All Legs Have 2 inch Dia. Foot Surface
• Adjustment Of Rollers Will Accept 1/2 inch Dia. To 48 inch Dia. Work Piece
• Roller Holders Have Drain Passages To Prevent Trapped Water When Used Outdoors
• Carriage Housing Has Drain Holes To Allow Water To Drain Through Legs
• Legs & Braces 1 inch Square Tube 16 Gauge
• Rollers Are Painted With High Visibility Yellow Paint
• All Stands Are Labeled With Working Capacity Of At Least 2 to 1 Safety Factor
• Certified Testing By Independent Source
• Working Load Capacity 6,000 LBS
• Complete Stand Weight 32 LBS

Picture of the BlackJack 115BJS
