ChemGrout CG-500 Versatile Series

Chem Grout Logo
"Mfg. Grout Pumps, Grout Mixers, Largest Selection of Grouting Equipment in the World"
CG-500 Versatile Series

s-h alt
CG-500 Air Powered Shown

s-h alt s-h alt s-h alt s-h alt
CG500/2C6/H CG500/3C6/EH CG500/2C6/GHES CG500/2C6/DH

Not certain what you need PLEASE feel free to call us and we will have the ChemGrout
engineers help get you into the right pump at the right price. Call 1-800-458-3687
or email sales@southern-tool.com

Down Load, Print and Send it to us !
ChemGrout Sales Inquiry Form

CG-500 Versatile Series

The ChemGrout CG-500 series are high volume production skid mounted grout plants.  This versatile unit is designed to mix and pump neat cement, sanded grouts and most commercial pre-blended grout mixes.  These units feature two 70-gallon (265 liters) mixing tanks, a 15-gallon (57 liters) holding hopper and an open throat progressive cavity grout pump.

The unique double mix tank design permits continuous pumping as each mix tank alternates feeding the pump.  Each mixer is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing.  The tank outlet valves are large slide gates that allow the thickest materials to fall easily into the pump hopper.  The holding hopper has an auger in it to keep the material thoroughly mixed while constantly supplying the grout pump with material for the continuous pumping operation.

The grout pump is a variable speed, positive displacement, progressive cavity, rotor-stator pump.  The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production.  All components are easily accessible for operating, cleaning, and maintenance.

Click Here To View Literature


Pump Specifications

Progressing Cavity Pump
Hopper Volume
Maximum Output
Maximum Pressure
ChemGrout -2C6 Grout Pump
15 Gallons (57 Liters)
20 GPM (76 LPM)
174 PSI (12 BAR)
ChemGrout -3C6 Grout Pump
15 Gallons (57 Liters)
20 GPM (76 LPM)
261 PSI (18 BAR)

Applications include: soil compaction, rock grouting, voidfilling, waterproofing, soil anchors, cable bolts, rock bolts, well encasements, contact grouting, well abandonment, marine/underwater, post tensioning, precast, machine base installation, self leveling floor underlayments, slab undersealing, and slabjacking

SPECIFICATIONS
Progressing Cavity Pump Hopper Volume Maximum Output Maximum Pressure
ChemGrout -2C6 Grout Pump
15 Gallons (57 Liters)
20 GPM (76 LPM) 174 PSI (12 BAR)
ChemGrout -3C6 Grout Pump
15 Gallons (57 Liters)
20 GPM (76 LPM)
261 PSI (18 BAR)

Model Number Description Dimensions (LxWxH) Weight (lbs)
CG500/2C6/A Skid Mounted Air Powered Grout Plant Requires 250 CFM, 100 PSI 88" x 34" x 58" 1100
CG500/2C6/H Skid Mounted Hydraulic Grout Plant  Requires 12 GPM,  1200 PSI 88" x 34" x 58" 1050
CG500/3C6/EH Skid Mounted Electric/Hydraulic Grout Plant  Requires 230/460 V 38/19 A, 3 Phase Only 88" x 34" x 58" 1550
CG500/2C6/GHES Skid Mounted Gas/Hydraulic Grout Plant  20 HP Engine, Electric Start 88" x 34" x 58" 1425
CG500/2C6/DH Skid Mounted Diesel/Hydraulic Grout Plant  20 HP Engine, Electric Start 100" x 34" x 58" 1625
Power Options = Air, Hydraulic, Electric/Hydraulic, Gas/Hydraulic or Diesel/Hydraulic



Common Accessories Available with the CG500 Series
Gauge is equipped with quick disconnect fittings that easily snaps into grout line and is protected from grout contamination by a diaphragm seal

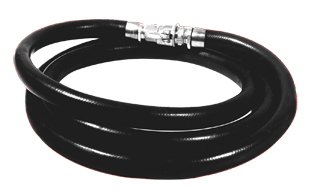

Equipped with quick disconnect fittings, available in 25 and 50 foot lengths
Equipped with shut-off valve and a quick disconnect fitting
Grout header controls pressure of circulating injection systems. Consists of one diaphragm type throttling valve, one 0-300 PSI diaphragm protected pressure gauge and one ball valve. All Components plumbed together with standard NPT fittings and provided with cam lock style couplings compatible with grout hose.
Manually operated water batcher with adjustable overflow pipe and quick discharge slide gate dump valve. Various sizes available.
 Protected Pressure Gauge
Grout Hose
Mechanical Surface Packer
Header
Water Batcher



 CG-500 Versatile Series
500 Series 2C6 Versatile Pumps
CG500/2C6V/H 500 Series 2C6 Versatile  - Two 70 Gal Paddle Mixers  - Skid Mounted Hydraulic Powered Grout PlantÊ- 25 GPM, 174 PSI
CG500/2C6V/A 500 Series 2C6 Versatile  - Two 70 Gal Paddle Mixers  - Skid Mounted Air Powered Grout PlantÊ-25 GPM, 174 PSI
CG500/2C6V/GHES 500 Series 2C6 Versatile  - Two 70 Gal Paddle Mixers  -  Skid Mounted Self-Contained  13 HP Honda Gas Engine ELEC Start/Hydraulic Grout Plant - 25 GPM, 174 PSI
CG500/2C6V/EHT 500 Series 2C6 Versatile  - Two 70 Gal Paddle Mixers  - Skid Mounted Electric/Hydraulic Grout Plant 230 or 460  3 Phase -25 GPM, 174 PSI  (2 Piece Unit - Hydraulic power pack mounted on separate skid)
CG500/2C6V/DHES 500 Series 2C6 Versatile  - Two 70 Gal Paddle Mixers  - Skid Mounted Diesel ELEC Start/Hydraulic Grout Plant -25 GPM, 174 PSI  (2 Piece Unit - Hydraulic power pack mounted on separate skid)
500 Series 2C6 Versatile Accessories
PG125 Pressure Gauge 140K (1 1/4")
GH12525 Grout Hose 1 1/4" x 25 feet
GH12550 Grout Hose 1 1/4" x 50 feet
P125M Packers 1 1/4" - Mechanical 1 1/2" to 2 1/2"
GHI125 Inline Grout Header (1 1/4")
WB30S Water Batcher 30 (Single Mix Tank)



500/2C6V/H
500 SERIES 2C6 VERSATILE - TWO 70 GAL PADDLE MIXERS - SKID MOUNTED HYDRAULIC POWERED GROUT PLANT- 25 GPM, 174 PSI
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 500/2C6V/H
CHECG500/2C6V/H
lease to own for as little as:$302 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$15,100.00

1357
500/2C6V/A
500 SERIES 2C6 VERSATILE - TWO 70 GAL PADDLE MIXERS - SKID MOUNTED AIR POWERED GROUT PLANT-25 GPM, 174 PSI
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 500/2C6V/A
CHECG500/2C6V/A
lease to own for as little as:$312 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$15,600.00

1357
500/2C6V/GHES
500 SERIES 2C6 VERSATILE - TWO 70 GAL PADDLE MIXERS - SKID MOUNTED SELF-CONTAINED 13 HP HONDA GAS ENGINE ELEC START/HYDRAULIC GROUT PLANT - 25 GPM, 174 PSI
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 500/2C6V/GHES
CHECG500/2C6{02
lease to own for as little as:$402 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$20,100.00

1357
500/2C6V/EHT
500 SERIES 2C6 VERSATILE - TWO 70 GAL PADDLE MIXERS - SKID MOUNTED ELECTRIC/HYDRAULIC GROUT PLANT 230 OR 460 3 PHASE -25 GPM, 174 PSI (2 PIECE UNIT - HYDRAULIC POWER PACK MOUNTED ON SEPARATE SKID)
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 500/2C6V/EHT
CHECG500/2C6{01
lease to own for as little as:$402 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$20,100.00

1357
500/2C6V/DHES
500 SERIES 2C6 VERSATILE - TWO 70 GAL PADDLE MIXERS - SKID MOUNTED DIESEL ELEC START/HYDRAULIC GROUT PLANT -25 GPM, 174 PSI (2 PIECE UNIT - HYDRAULIC POWER PACK MOUNTED ON SEPARATE SKID)
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 500/2C6V/DHES
CHECG500/2C6{00
lease to own for as little as:$462 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$23,100.00

1357
PG125
Mfg. item #: PG125
CHEPG125
FREE shipping when ordered with a machine from this manufacturer.20
$410.00

1357
GH12525
Mfg. item #: GH12525
CHEGH12525
FREE shipping when ordered with a machine from this manufacturer.20
$435.00

1357
GH12550
Mfg. item #: GH12550
CHEGH12550
FREE shipping when ordered with a machine from this manufacturer.20
$630.00

1357
P125M
Mfg. item #: P125M
CHEP125M
FREE shipping when ordered with a machine from this manufacturer.20
$200.00

1357
GHI125
INLINE GROUT HEADER (1 / 1 1/4)
Mfg. item #: GHI125
CHEGHI125
FREE shipping when ordered with a machine from this manufacturer.20
$1,200.00

1357
WB30S
WATER BATCHER 30 (SINGLE MIX TANK)
Mfg. item #: WB30S
CHEWB30S
FREE shipping when ordered with a machine from this manufacturer.20
$990.00

1357
