ChemGrout CG-502 Hi-Pro Finisher Series


Chem Grout Logo
"Mfg. Grout Pumps, Grout Mixers, Largest Selection of Grouting Equipment in the World"

CG-502 Hi-Pro Finisher Series

s-h alt

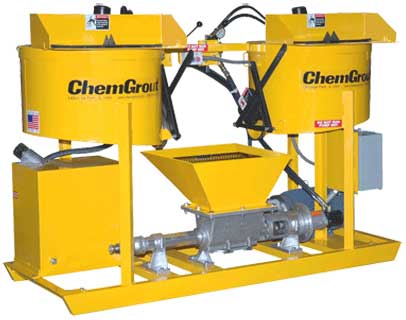

CG-502 Electric Hydraulic Shown
Not certain what you need PLEASE feel free to call us and we will have the ChemGrout
engineers help get you into the right pump at the right price. Call 1-800-458-3687
or email sales@southern-tool.com

Down Load, Print and Send it to us !
ChemGrout Sales Inquiry Form

CG-502 Hi-Pro Finisher Series

The ChemGrout model CG502 is a skid mounted grout plant.  This unit is designed for maximum efficiency by allowing simultaneous operation of the mixing and pumping.  Spraying is also an option with these models.  The ChemGrout model CG-502 features two 45 gallon mixing tanks, a 10 gallon holding hopper, and a open throat progressive cavity grout pump.

The mixing tank has a highly efficient vertical paddle mixer to provide a rapid mixing cycle.  The holding hopper is equipped with an internal auger to keep the material thoroughly mixed while pumping.  The standard grout pump is a 2 Stage, Size 4, positive displacement, progressing cavity, rotor-stator pump which produces a smooth output with no pulsation.

The rugged steel frame stands up to the toughest job site conditions.  Operator controls are centrally located for efficient production.  All components are easily accessible for operating, cleaning and maintenance.

Applications include: voidfilling, waterproofing, spraying, post tensioning, machine base, self leveling floor underlayments, seal coating, finishing and resurfacing concrete

Click Here To View Literature

Model Number Description Dimensions (LxWxH) Weight (lbs)
CG502/2C4/A Skid Mounted Air Powered Grout Plant Requires 185 CFM, 100 PSI 82" x 31" x 55" 750
CG502/2C4/H Skid Mounted Hydraulic Powered Grout Plant
Requires 12 GPM, 1200 PSI
82" x 31" x 55" 750
CG502/2C4/EHS Skid Mounted Electric/Hydraulic Grout Plant
Requires 230 V, 36 A, 1 Phase, 3 Phase Requires 230/460 V, 36/18 A
82" x 31" x 55" 1000
CG502/2C4/GHES Skid Mounted Gas/Hydraulic Grout Plant
Self-Contained, 13 HP Honda Gas Engine
82" x 31" x 55" 1000
CG502/2C4/DHES Skid Mounted Diesel/Hydraulic Grout Plant  Self-Contained 82" x 31" x 55" 1000



SPECIFICATIONS
Model Progressive Cavity Pump Mixing Tanks Hopper Max. Output Max. Pressure
CG502/2C4 2 Stage, Size 4, Open Throat
2 - 45 Gallon
10 Gallon
10 GPM (38 LPM)
174 PSI (12 BAR)
CG502/3C4 3 Stage, Size 4, Open Throat 2 - 45 Gallon
10 Gallon
10 GPM (38 LPM) 261 PSI (18 BAR)



 CG-502 Hi-Pro Finisher Series
CG502/2C4W/H 502 Series 2C4 Hi-Pro Finisher Series - Two 45 gal Paddle Mixer Pump -  Skid Mounted Hydraulic Powered Grout PlantÊ-  10 GPM, 174 PSI **Requires dual circuit 12 GPM, 1200 PSI
CG502/2C4W/A 502 Series 2C4 Hi-Pro Finisher Series - Two 45 gal Paddle Mixer Pump -  Skid Mounted Air Powered Grout PlantÊ 10 GPM, 174 PSI ** Requires 185 CFM, 100 PSI
CG502/2C4W/GHES 502 Series 2C4 Hi-Pro Finisher Series  - Two 45 gal Paddle Mixer Pump -  Skid Mounted Self-Contained  13 HP Honda Gas Engine ELEC Start/Hydraulic Grout Plant -  10 GPM, 174 PSI
CG502/2C4W/EHT 502 Series 2C4 Hi-Pro Finisher Series - Two 45 gal Paddle Mixer Pump -  Skid Mounted Electric/Hydraulic Grout Plant 230 or 460  3 Phase  10 GPM, 174 PSI **Requires 230/460 V, 36/18 A, 3 Phase
CG502/2C4W/EHS 502 Series 2C4 Hi-Pro Finisher Series - Two 45 gal Paddle Mixer Pump -  Skid Mounted Electric/Hydraulic Grout Plant  230V / 1 Phase 10 GPM, 174 PSI **Requires 230 V, 36 A, 1 Phase
CG502/2C4W/DHES 502 Series 2C4 Hi-Pro Finisher Series - Two 45 gal Paddle Mixer Pump -  Skid Mounted Self-Contained 13 HP Honda Diesel Engine ELEC Start/Hydraulic Grout Plant 10 GPM, 174 PSI
CG550/2C4W/EHS 550 Series 2C4 Workhorse - One 45 gal Paddle Mixer Pump -  Skid Mounted Electric/Hydraulic Grout Plant  230V / 1 Phase 8 GPM, 174 PSI **Requires 230 V, 36 A, 1 Phase
CG550/2C4W/DHES 550 Series 2C4 Workhorse  - One 45 gal Paddle Mixer Pump - Skid Mounted Diesel ELEC Start/Hydraulic Grout Plant -  8 GPM, 174 PSI
GH112 Grout Hose 1" x 12 feet
GH125 Grout Hose 1" x 25 feet
GH150 Grout Hose 1" x 50 feet
WM807 Water Meter - Fill Rite 807
PG140K1 Pressure Gauge 140K (1")
WM807 Water Meter - Fill Rite 807
CSW1 Compact Spray Wand 1" Hose Fitting
DP125  Drive Packer 1 1/4" Hose Fitting



502/2C4W/H
Mfg. item #: 502/2C4W/H
CHECG502/2C4W/H
lease to own for as little as:$232 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$11,600.00

1357
502/2C4W/A
Mfg. item #: 502/2C4W/A
CHECG502/2C4W/A
lease to own for as little as:$248 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$12,400.00

1357
502/2C4W/GHES
502 SERIES 2C4 WORKHORSE - TWO 45 GAL PADDLE MIXER PUMP - SKID MOUNTED SELF-CONTAINED 13 HP HONDA GAS ENGINE ELEC START/HYDRAULIC GROUT PLANT - 10 GPM, 174 PSI
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 502/2C4W/GHES
CHECG502/2C4{05
lease to own for as little as:$320 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$16,000.00

1357
502/2C4W/EHT
502 SERIES 2C4 WORKHORSE - TWO 45 GAL PADDLE MIXER PUMP - SKID MOUNTED ELECTRIC/HYDRAULIC GROUT PLANT 230 OR 460 3 PHASE 10 GPM, 174 PSI **REQUIRES 230/460 V, 36/18 A, 3 PHASE
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 502/2C4W/EHT
CHECG502/2C4{03
lease to own for as little as:$320 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$16,000.00

1357
502/2C4W/EHS
502 SERIES 2C4 WORKHORSE - TWO 45 GAL PADDLE MIXER PUMP - SKID MOUNTED ELECTRIC/HYDRAULIC GROUT PLANT 230V / 1 PHASE 10 GPM, 174 PSI **REQUIRES 230 V, 36 A, 1 PHASE
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 502/2C4W/EHS
CHECG502/2C4{02
lease to own for as little as:$332 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$16,600.00

1357
502/2C4W/DHES
502 SERIES 2C4 WORKHORSE - TWO 45 GAL PADDLE MIXER PUMP - SKID MOUNTED SELF-CONTAINED 13 HP HONDA DIESEL ENGINE ELEC START/HYDRAULIC GROUT PLANT 10 GPM, 174 PSI
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 502/2C4W/DHES
CHECG502/2C4{00
lease to own for as little as:$382 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$19,100.00

1357
550/2C4W/EHS
550 SERIES 2C4 WORKHORSE - ONE 45 GAL PADDLE MIXER PUMP - SKID MOUNTED ELECTRIC/HYDRAULIC GROUT PLANT 230V / 1 PHASE 8 GPM, 174 PSI **REQUIRES 230 V, 36 A, 1 PHASE
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 550/2C4W/EHS
CHECG550/2C4{01
lease to own for as little as:$272 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$13,600.00

1357
550/2C4W/DHES
550 SERIES 2C4 WORKHORSE - ONE 45 GAL PADDLE MIXER PUMP - SKID MOUNTED DIESEL ELEC START/HYDRAULIC GROUT PLANT - 8 GPM, 174 PSI
LIMITED TIME OFFER - FREE SHIPPING TO COMMERICAL ADDRESS
Mfg. item #: 550/2C4W/DHES
CHECG550/2C4{00
lease to own for as little as:$304 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$15,200.00

1357
GH112
Mfg. item #: GH112
CHEGH112
FREE shipping when ordered with a machine from this manufacturer.20
$200.00

1357
GH125
Mfg. item #: GH125
CHEGH125
FREE shipping when ordered with a machine from this manufacturer.20
$290.00

1357
GH150
Mfg. item #: GH150
CHEGH150
FREE shipping when ordered with a machine from this manufacturer.20
$450.00

1357
WM807
Mfg. item #: WM807
CHEWM807
FREE shipping when ordered with a machine from this manufacturer.20
$500.00

1357
PG140K1
Mfg. item #: PG140K1
CHEPG140K1
FREE shipping when ordered with a machine from this manufacturer.20
$350.00

1357
CSW1
Mfg. item #: CSW1
CHECSW1
FREE shipping when ordered with a machine from this manufacturer.20
$520.00

1357
DP125
Mfg. item #: DP125
CHEDP125
FREE shipping when ordered with a machine from this manufacturer.20
$200.00

1357
